Four Wheel Drive Selector Switch: Service and Repair

Transfer Switch Removal and Installation

Removal

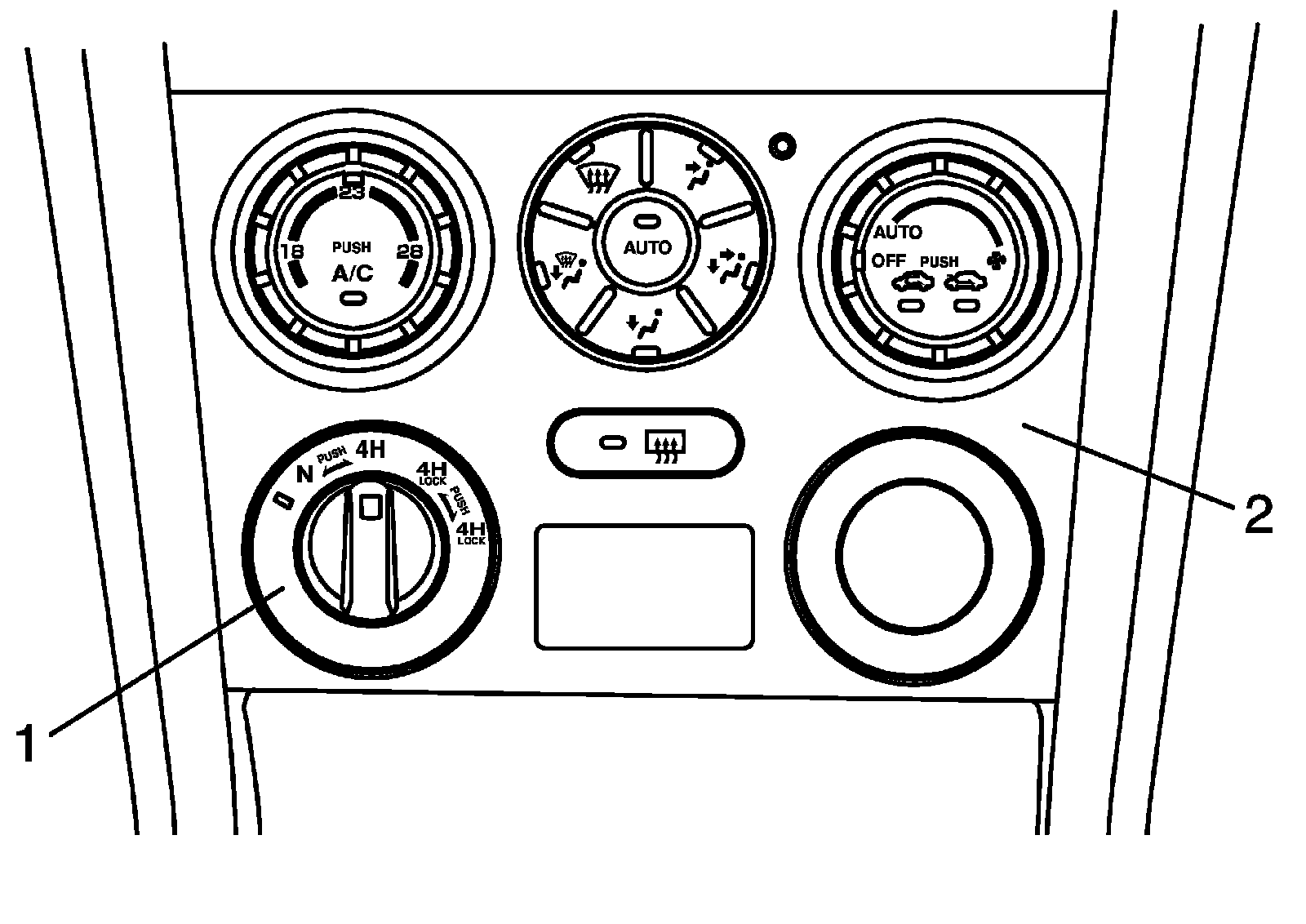

Remove HVAC control module, and then remove transfer switch (1) from center cluster (2).





Installation
Reverse removal procedure.
