Circuit Diagram

Body Electrical Control System Wiring Circuit Diagram

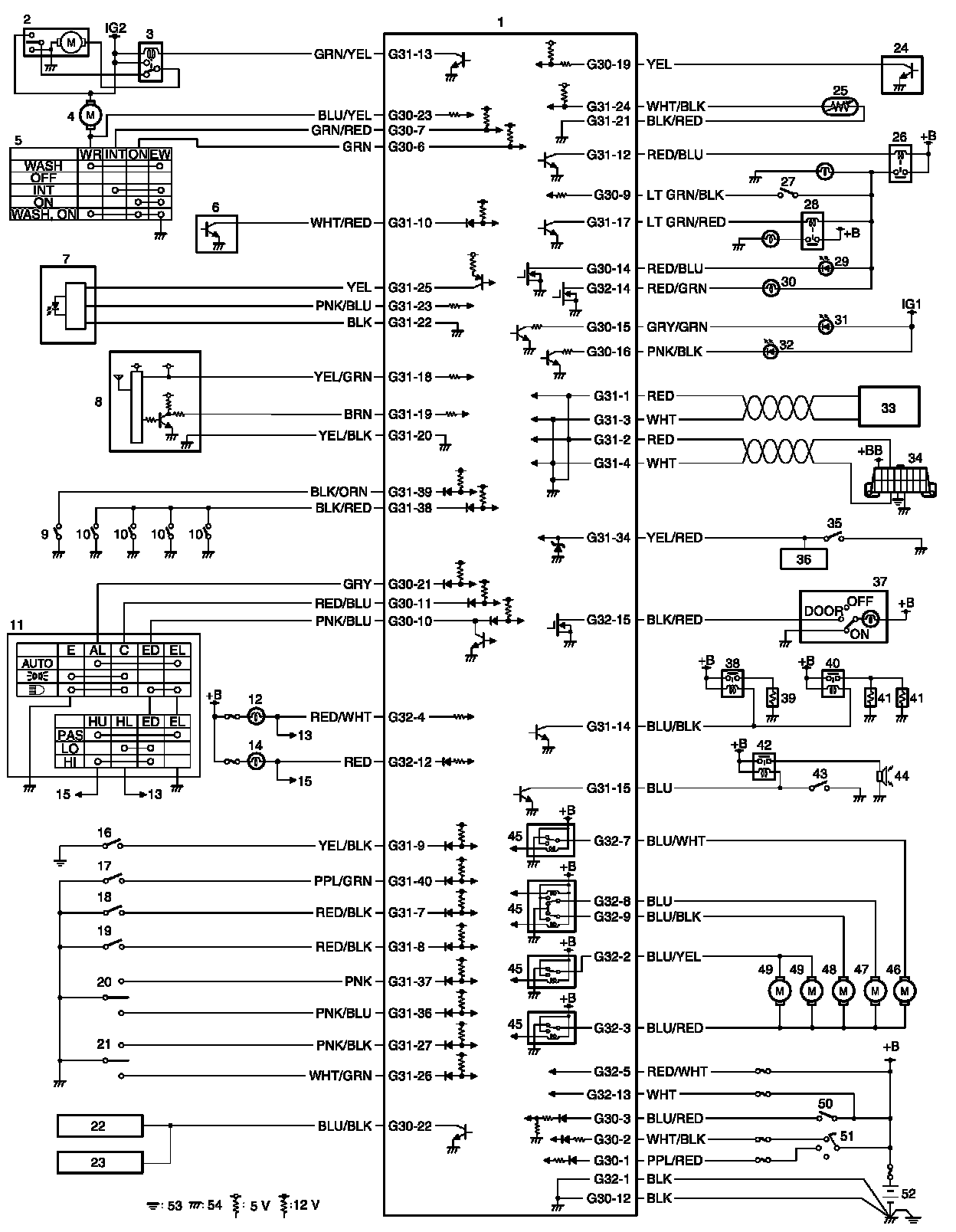

Body Electrical Control System Wiring Circuit Diagram (Part 1):

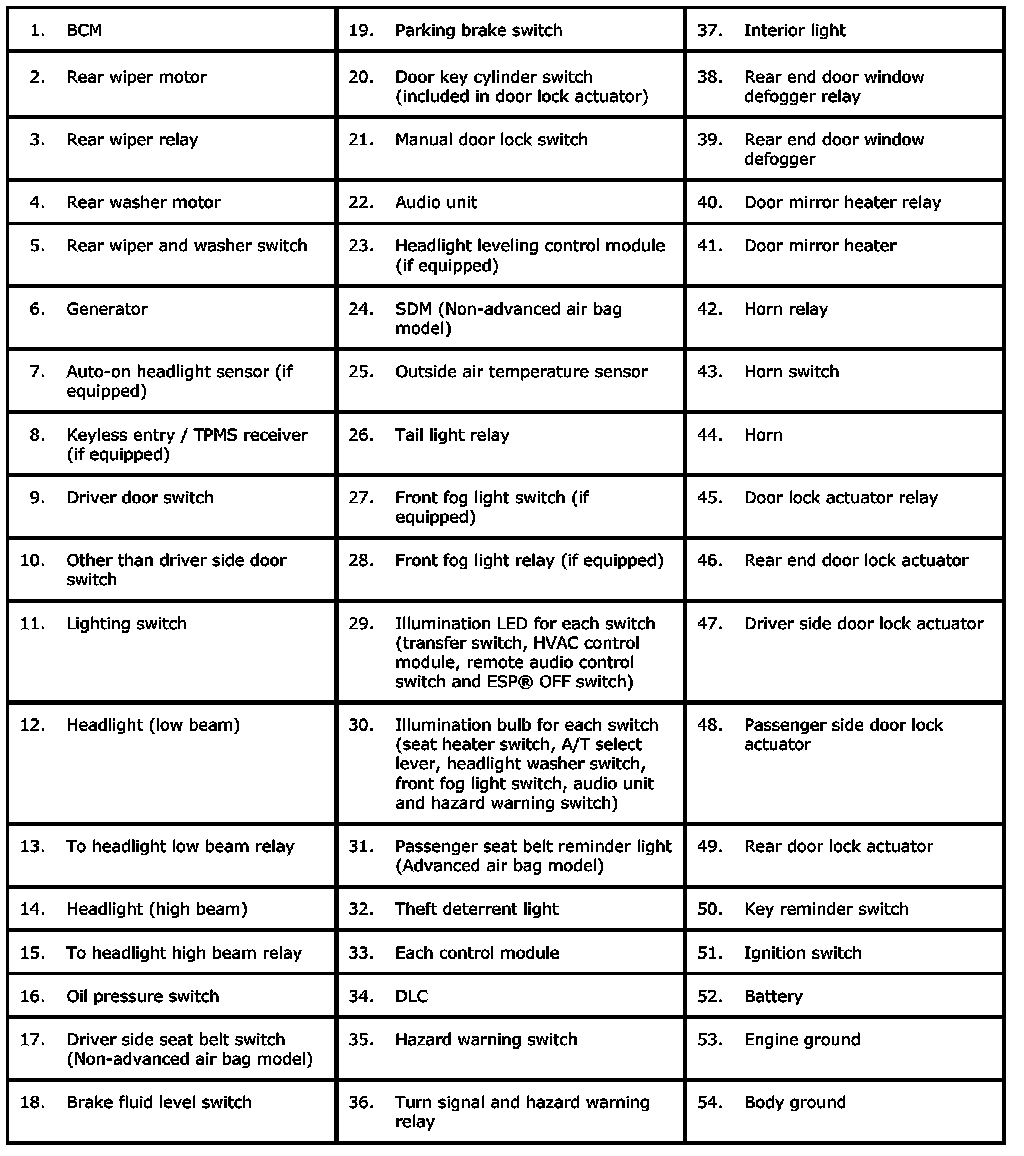

Body Electrical Control System Wiring Circuit Diagram (Part 2):
