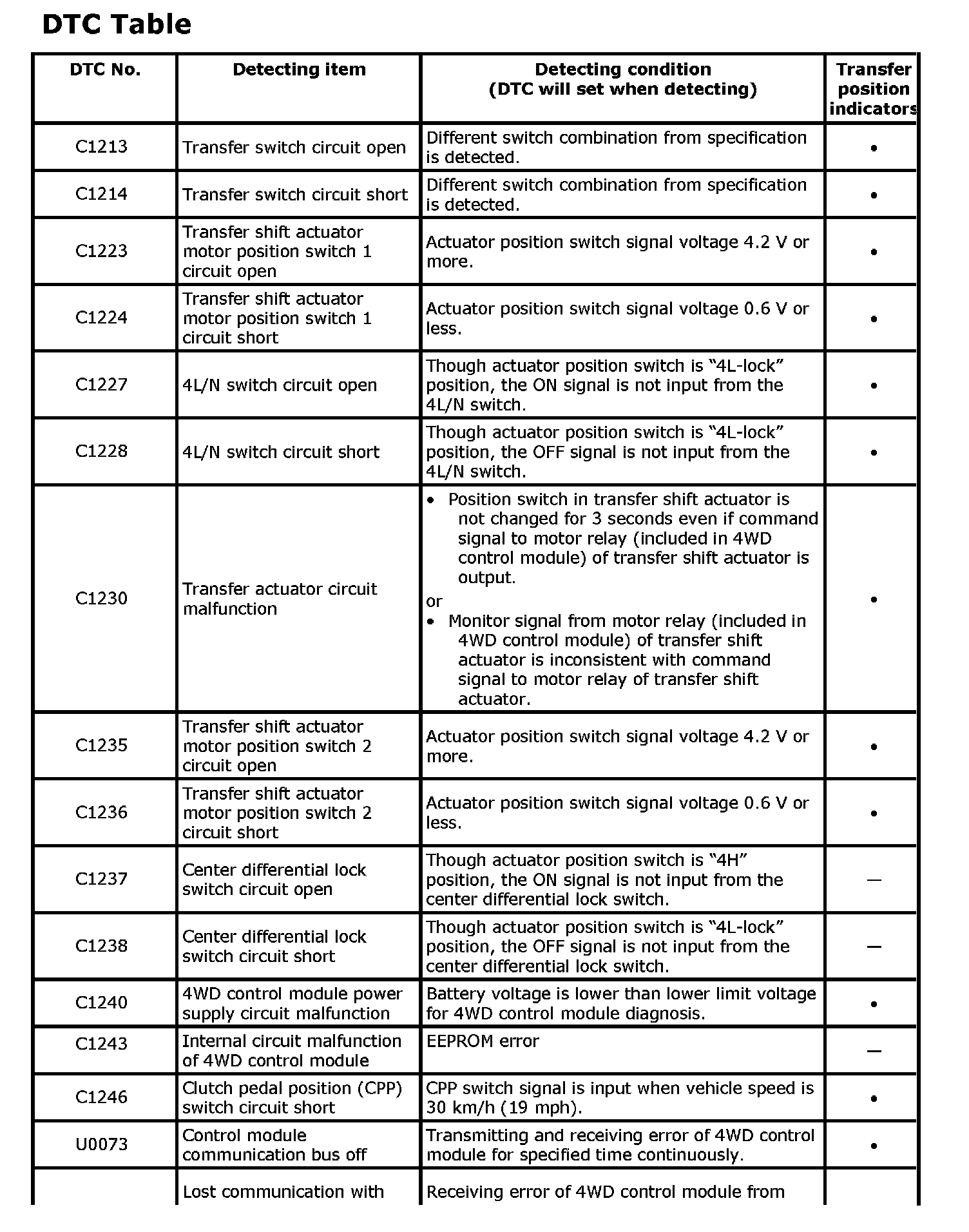

DTC Table

DTC Table

C1213-C1246/U0073:




U0100-U0155:





NOTE:
"O" in transfer position indicator column of the above table means indicator lights up when DTC is detected.
