Drive Plate Inspection

Drive Plate Inspection

Visual Inspection
^ If ring gear is damaged, cracked or worn, replace drive plate.

Drive Plate Face Runout

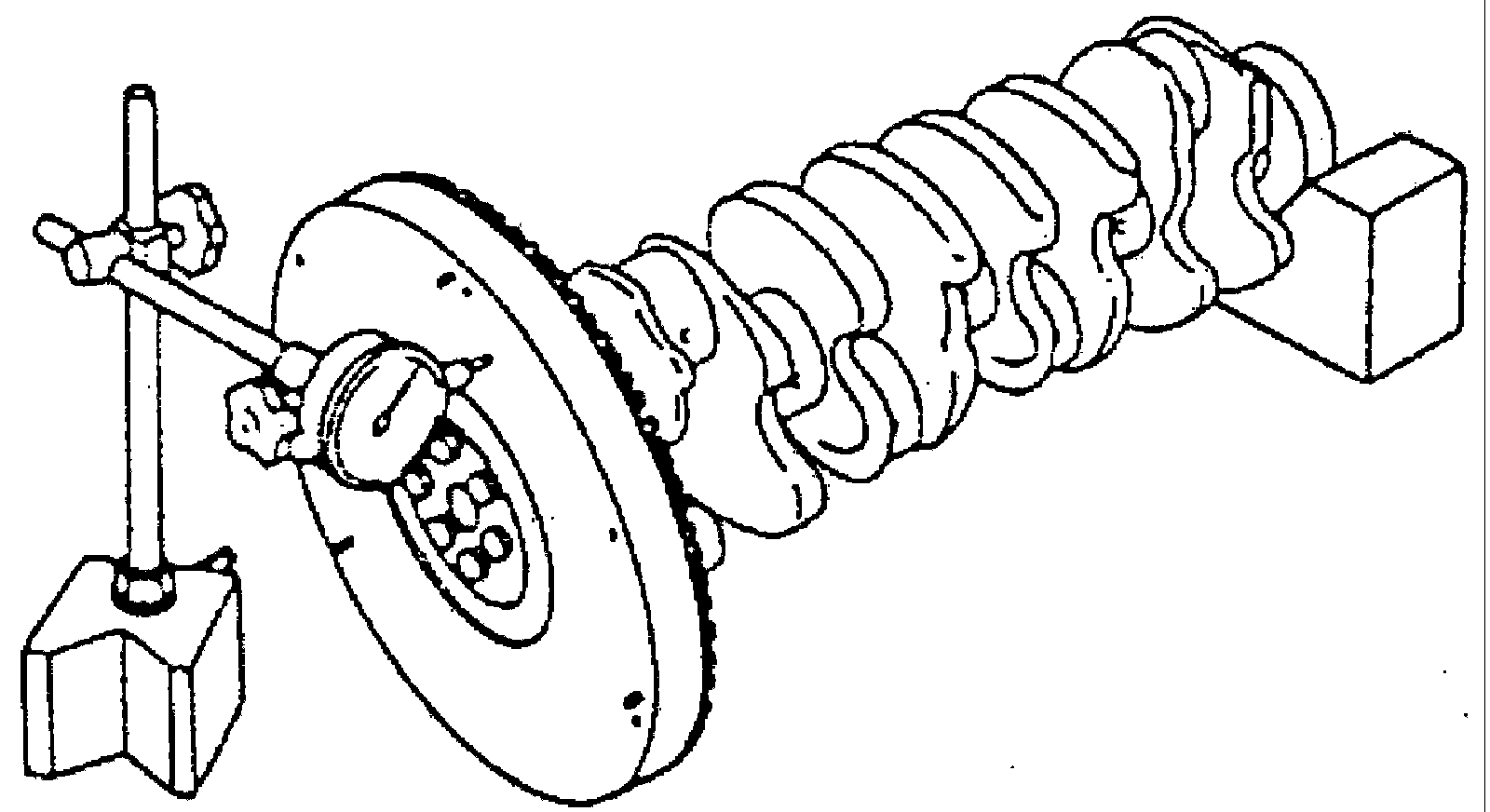

Check drive plate face runout with a dial gauge.
If runout exceeds its limit, replace drive plate.
Drive plate face runout
Limit: 0.2 mm (0.0079 in.)
