Fuel Injector Circuit Check

Fuel Injector Circuit Check

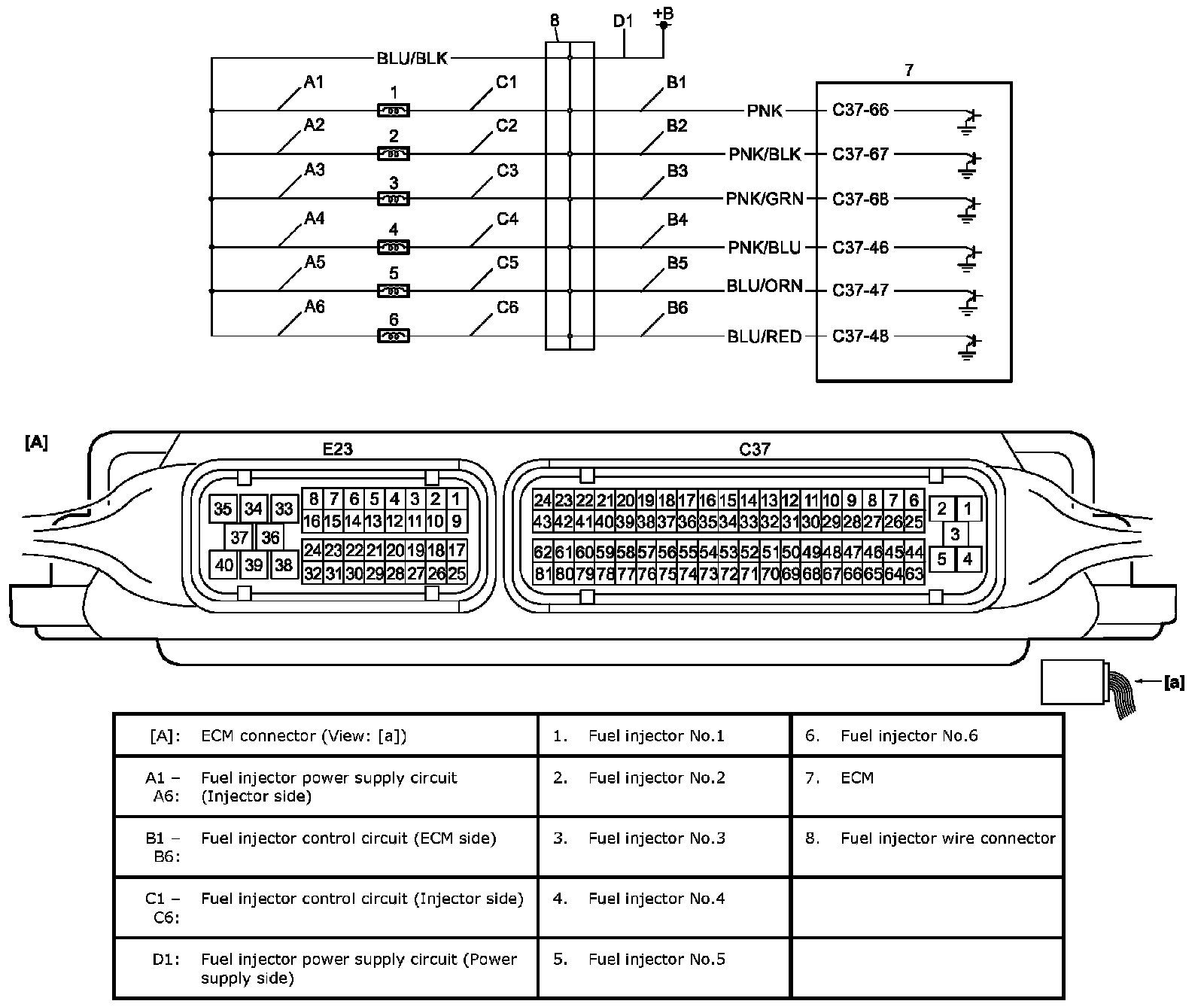

Wiring Diagram:






Troubleshooting

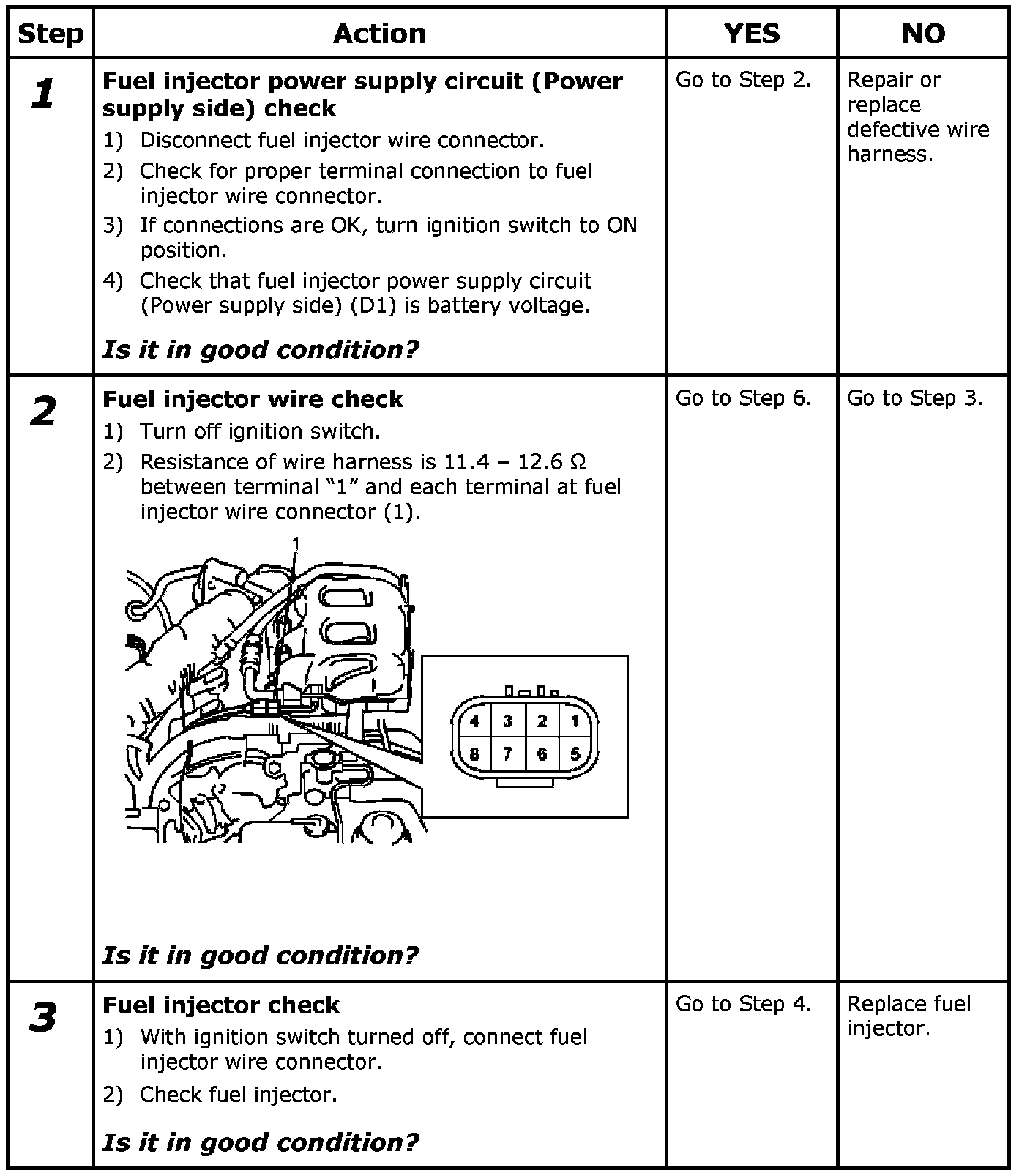

Step 1-3:

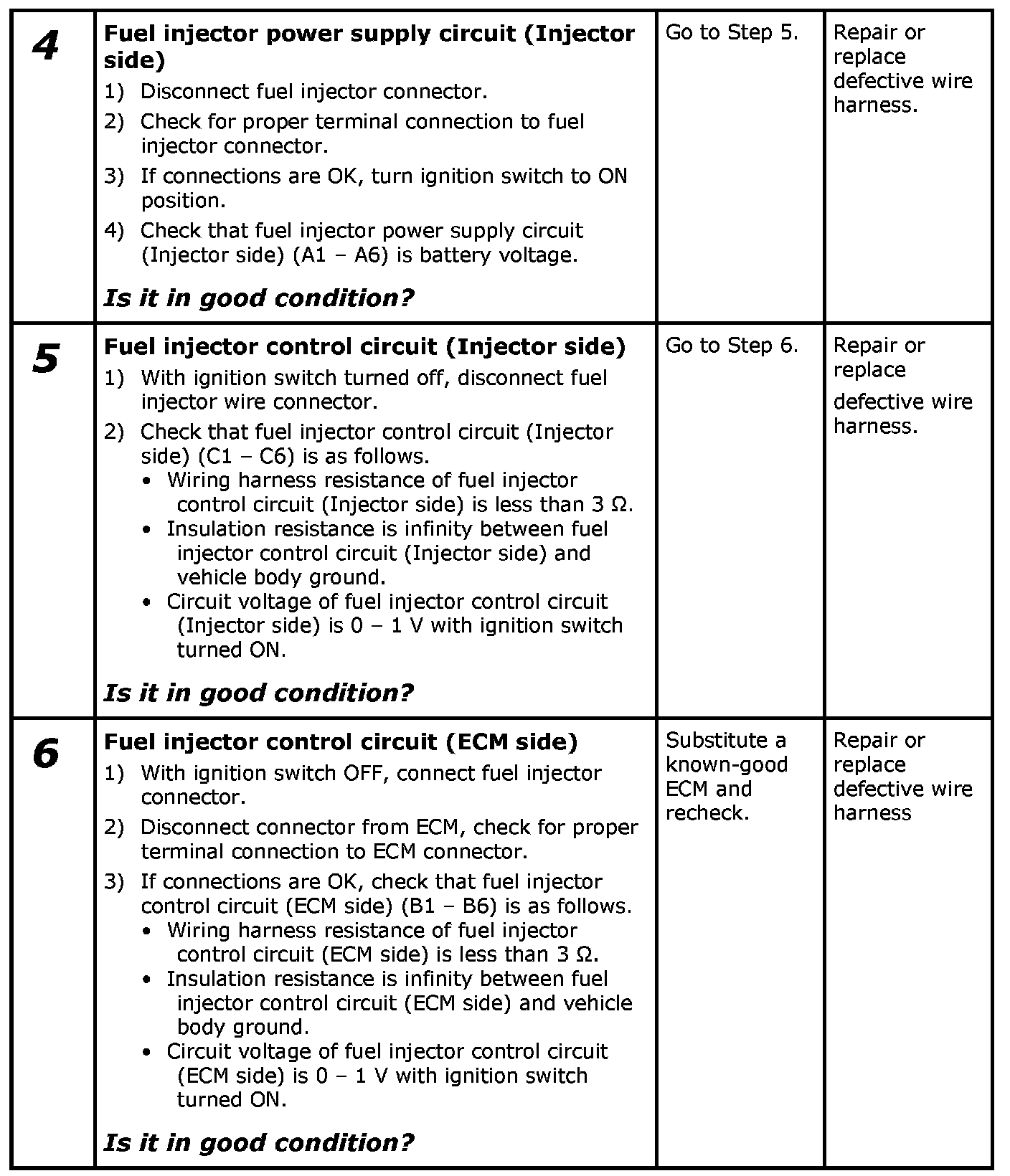

Step 4-6:
