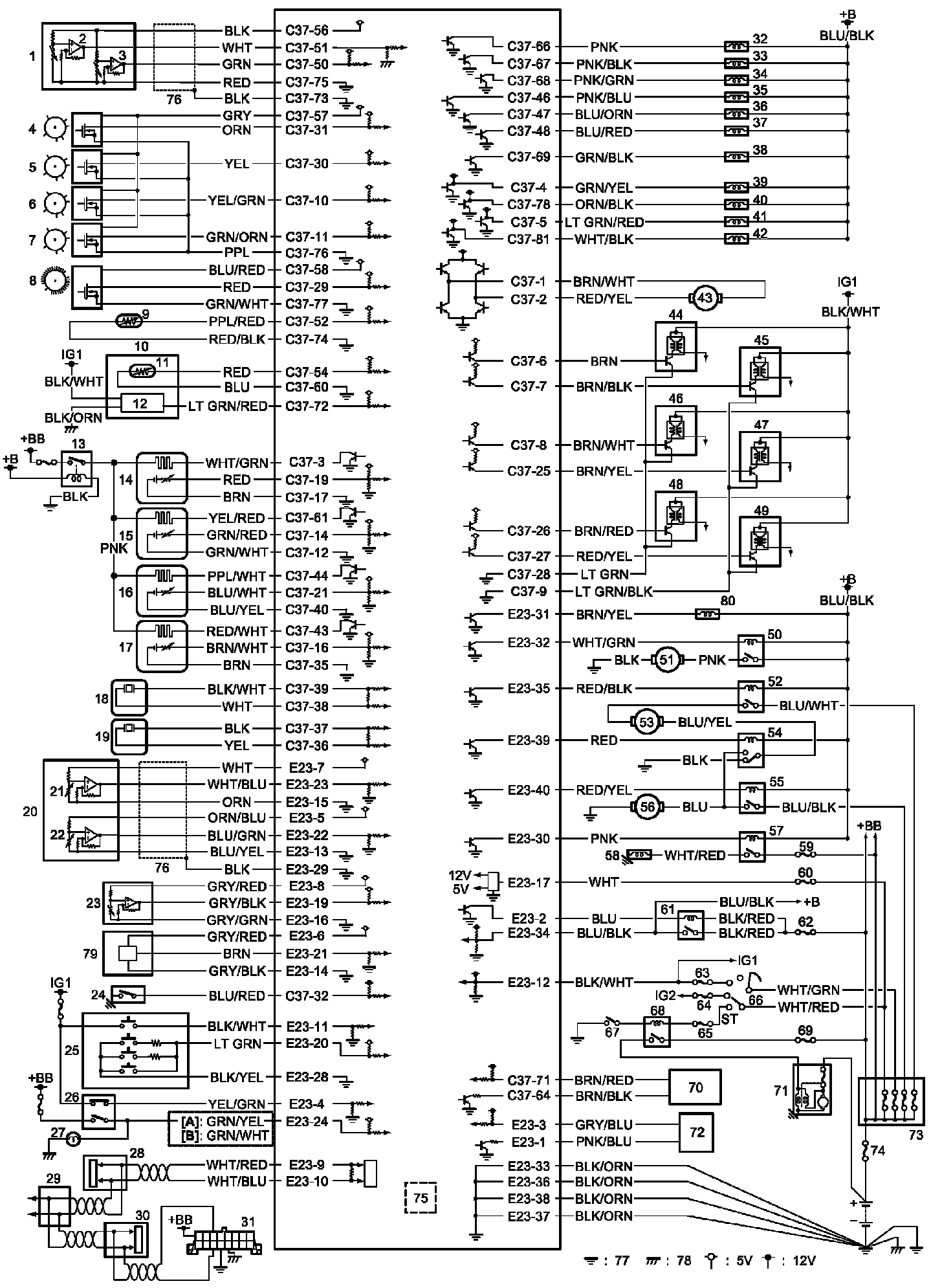

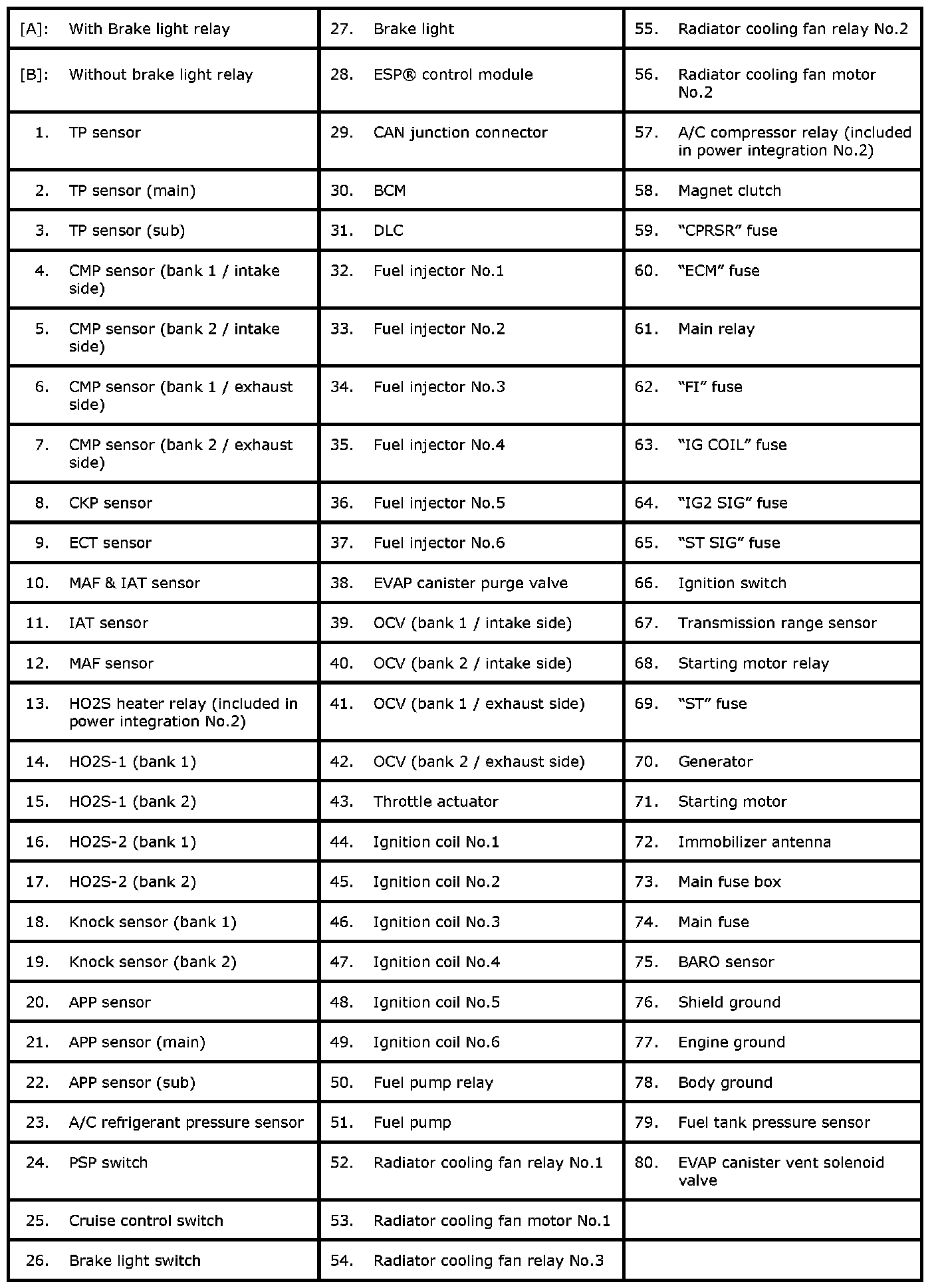

Engine Control System Circuit Diagram
Engine Control System Circuit DiagramNOTE: For identification of each cylinder and bank, refer to Precaution for Identification of Cylinder and Bank.
NOTE: For identification of each cylinder and bank, refer to Precaution for Identification of Cylinder and Bank.
