Engine Block Heater Removal and Installation (Canadian Specification)

Engine Block Heater Removal and Installation (Canadian Specification)

Removal

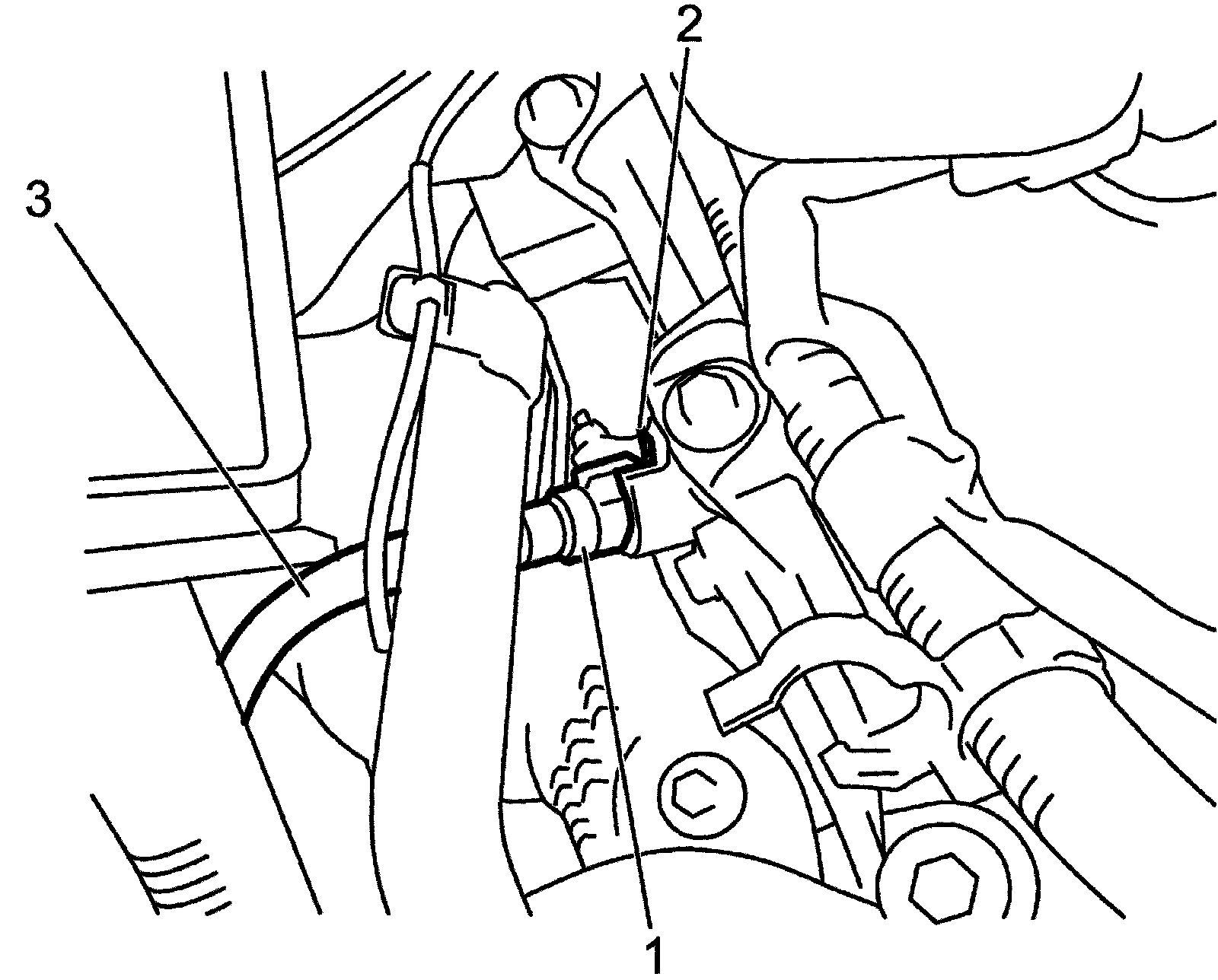

1) Remove engine block heater (1) while lock lever (2) is unlocked.
2) Disconnect engine block heater harness (3) from engine block heater.





Installation
Reverse removal procedure for installation.
