P2176
DTC P2176
Wiring Diagram:
DTC Confirmation Procedure
NOTE:
Make sure that the following conditions are satisfied when using this procedure.
- Battery voltage > 10 V
- 5.3 °C (42 °F) ≤ ECT ≤ 100.5 °C (203 °F)
- IAT ≤ 5.3 °C (42 °F)
1. Turn ignition switch to ON position for 1 min. after releasing accelerator pedal.
2. Run engine at idle speed for 1 min.
3. Turn ignition switch to OFF position for 1 min.

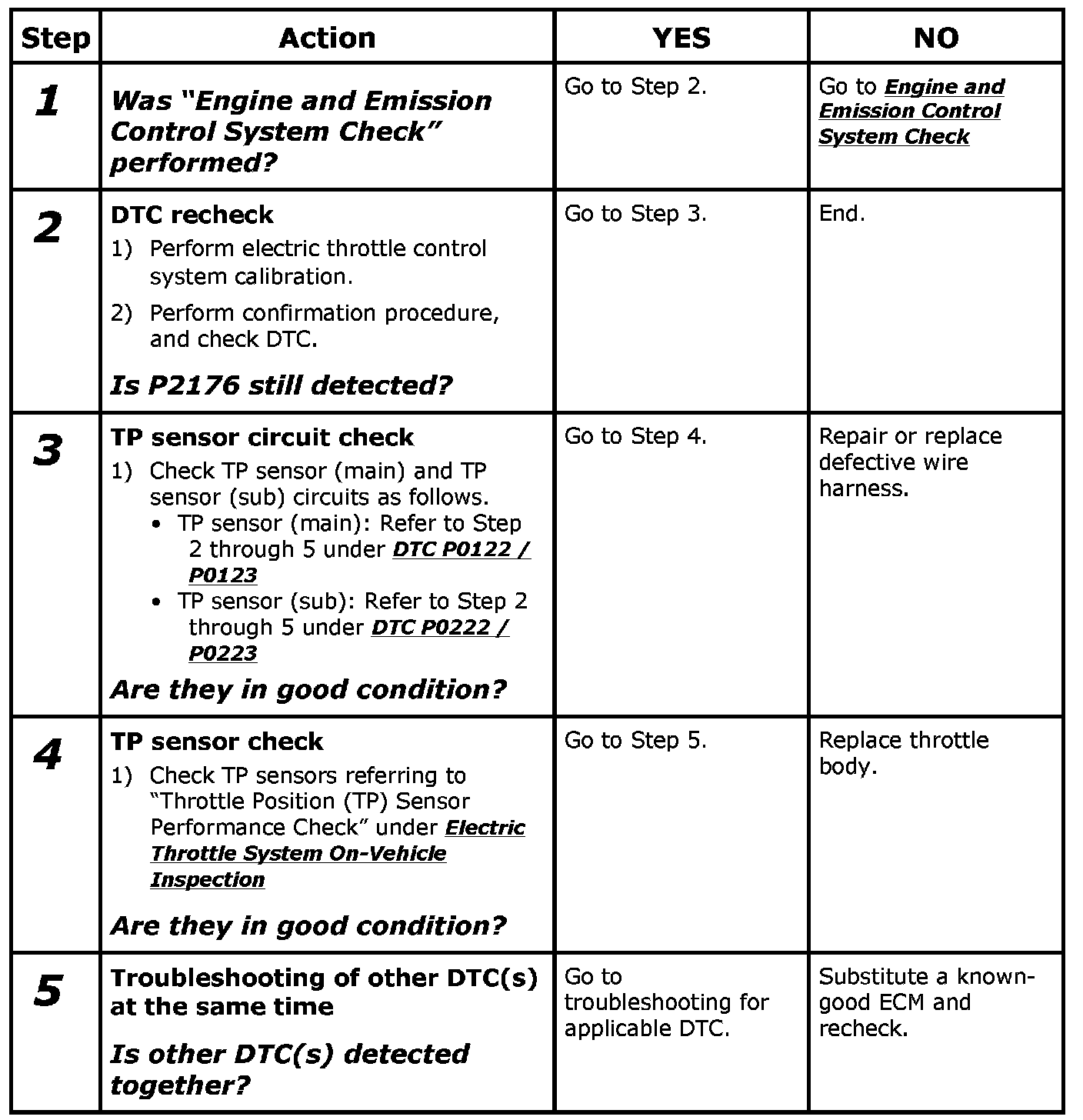

DTC Troubleshooting
