P2123

DTC P2122 / P2123

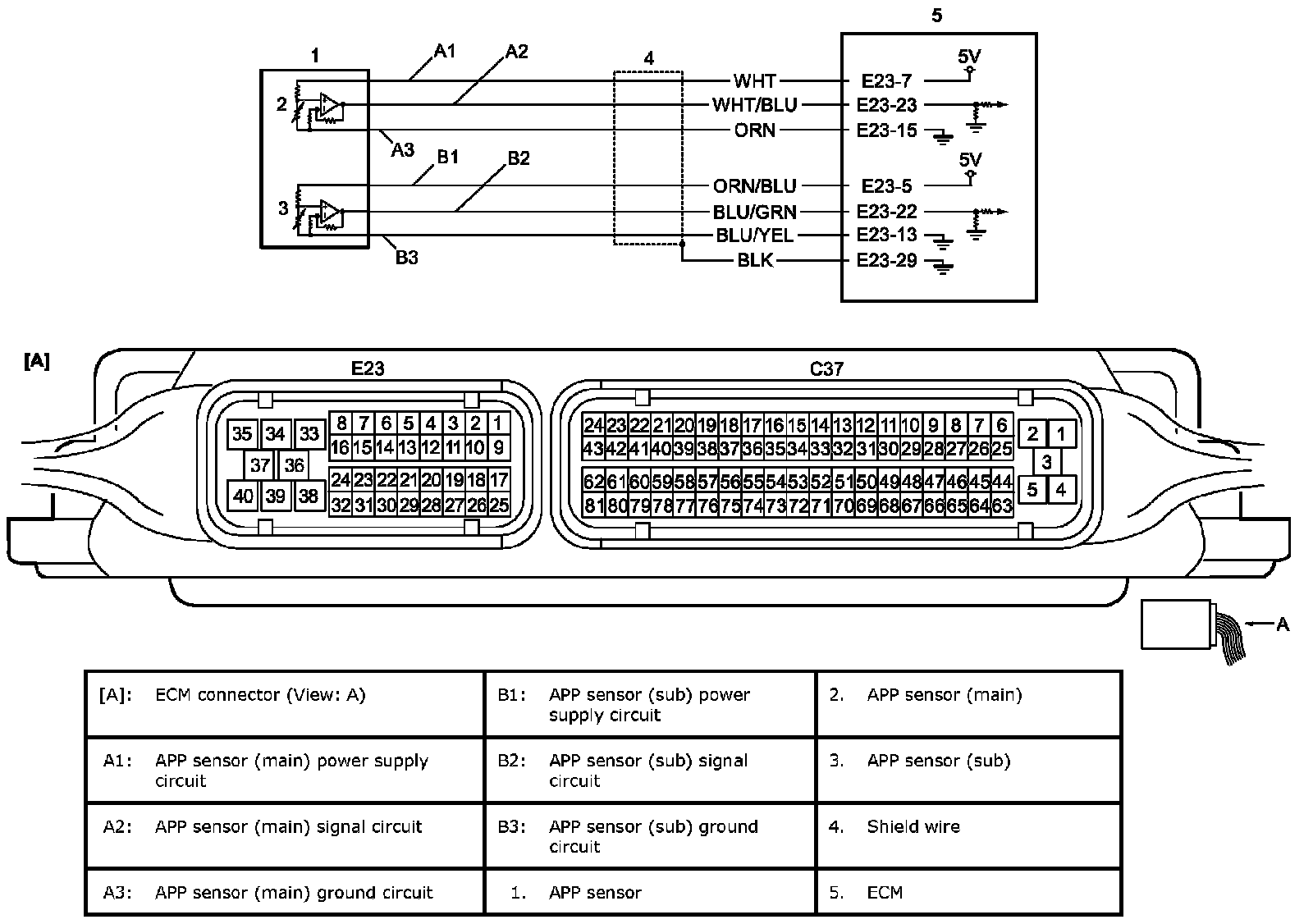

Wiring Diagram:

DTC Confirmation Procedure

NOTE:
Make sure that the following conditions are satisfied when using this procedure.
- Battery voltage > 7 V

1. Start engine.
2. Depress accelerator pedal fully, and release it.
3. Repeat Step 2) for 3 times.

DTC Troubleshooting

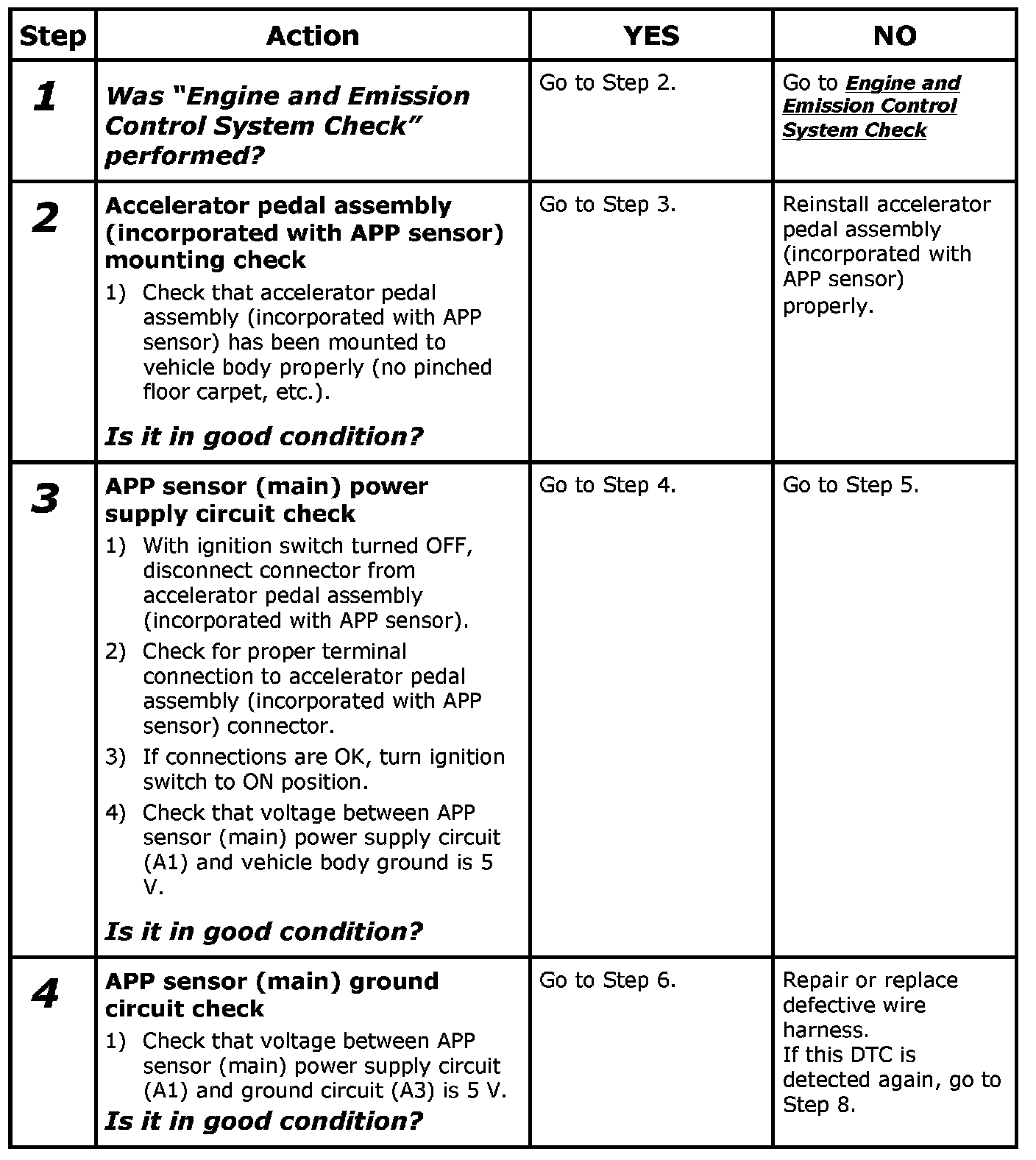

Step 1-4:

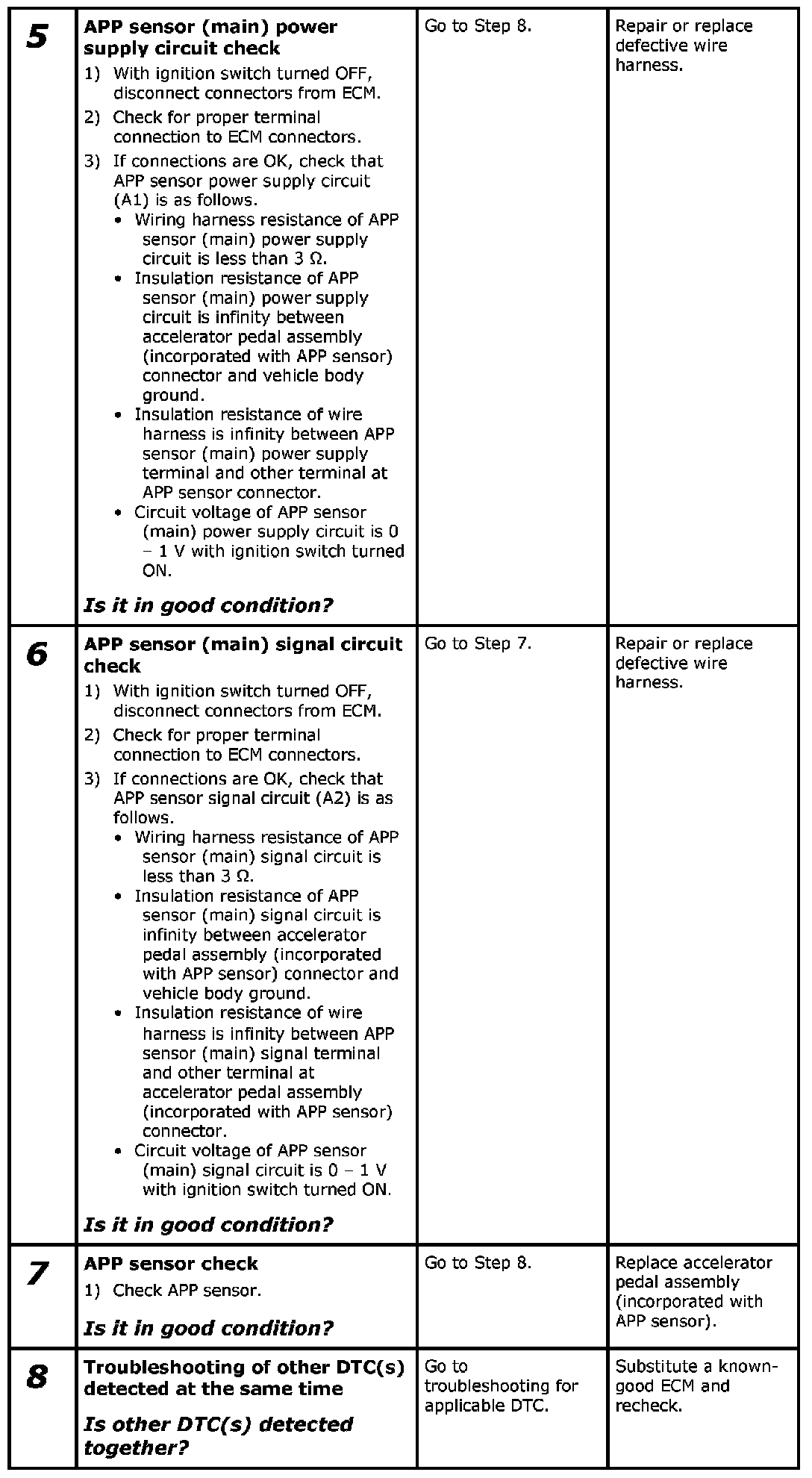

Step 5-8:
