P0367

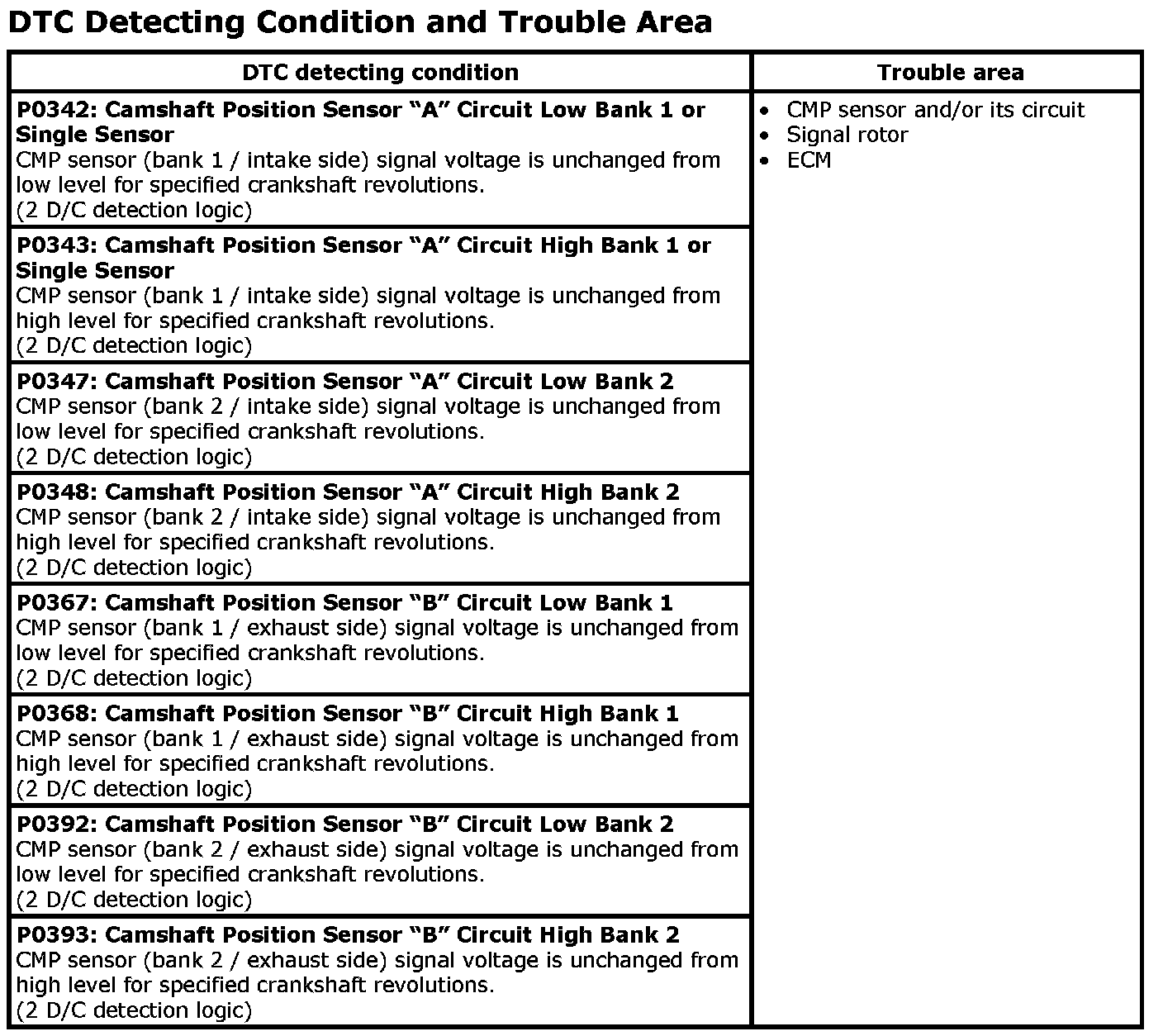

DTC P0342 / P0343 / P0347 / P0348 / P0367 / P0368 / P0392 / P0393






Wiring Diagram:






DTC Confirmation Procedure

1. Run engine at idle speed for 1 min.

DTC Troubleshooting

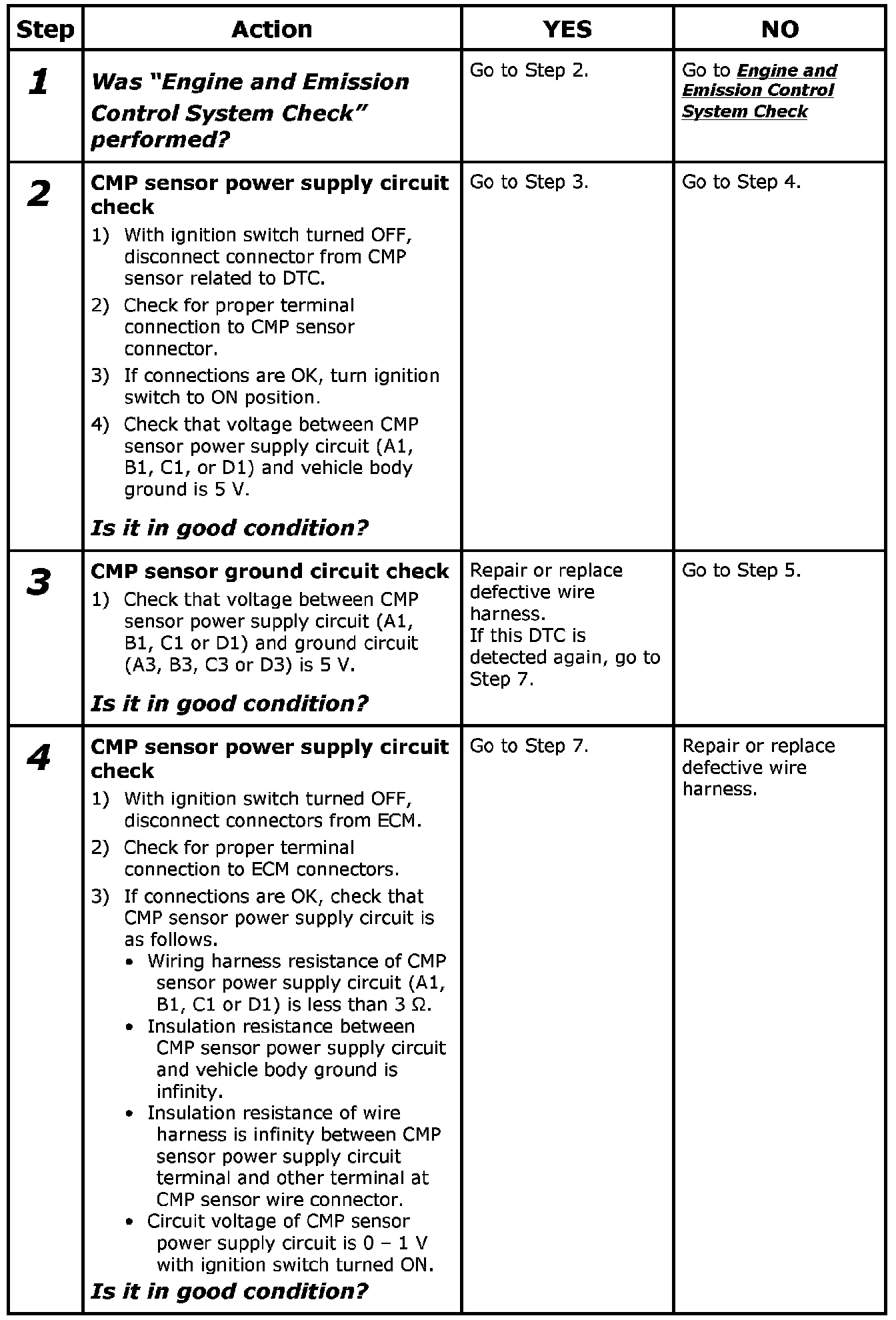

Step 1-4:

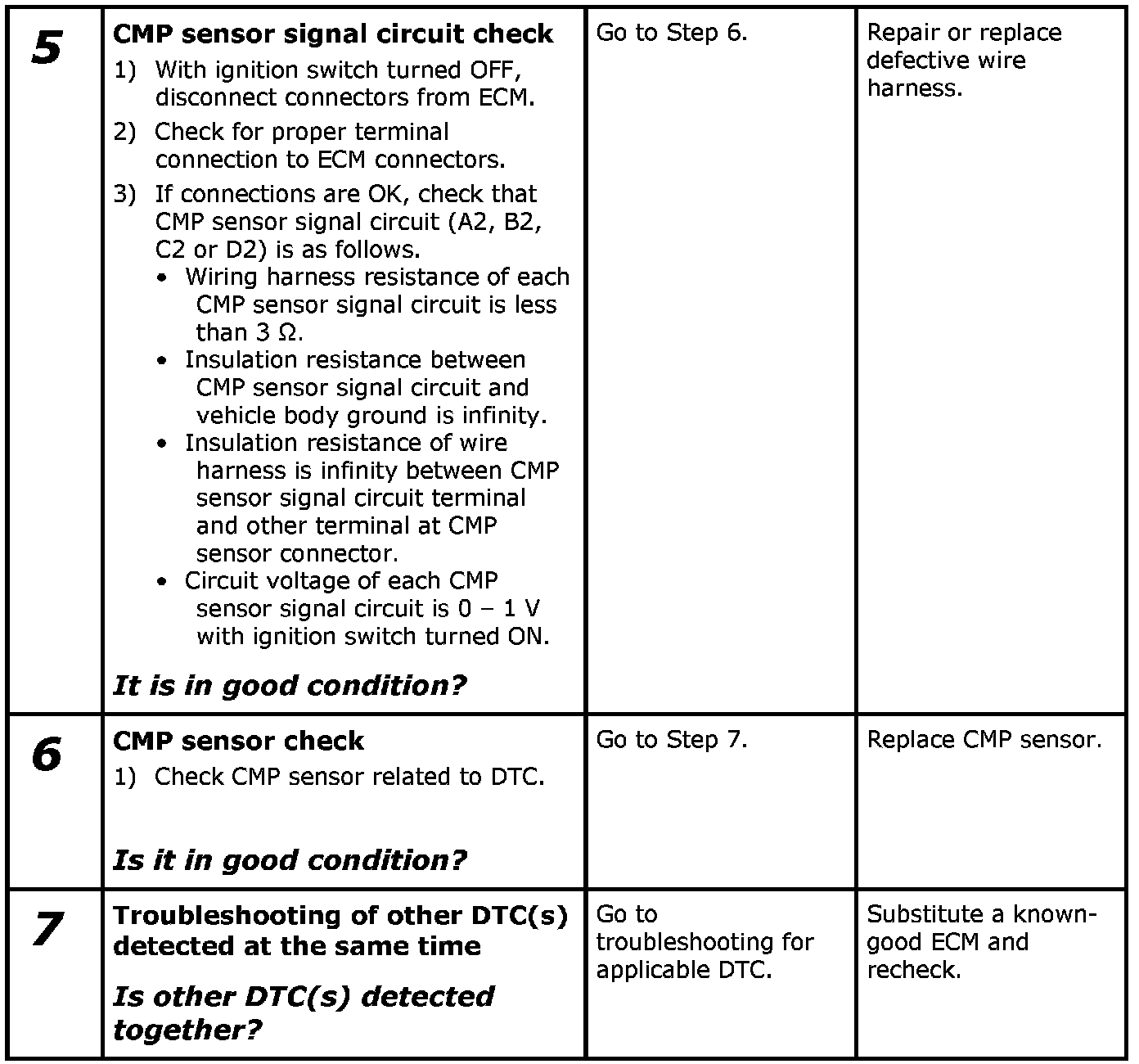

Step 5-7:
