P0366

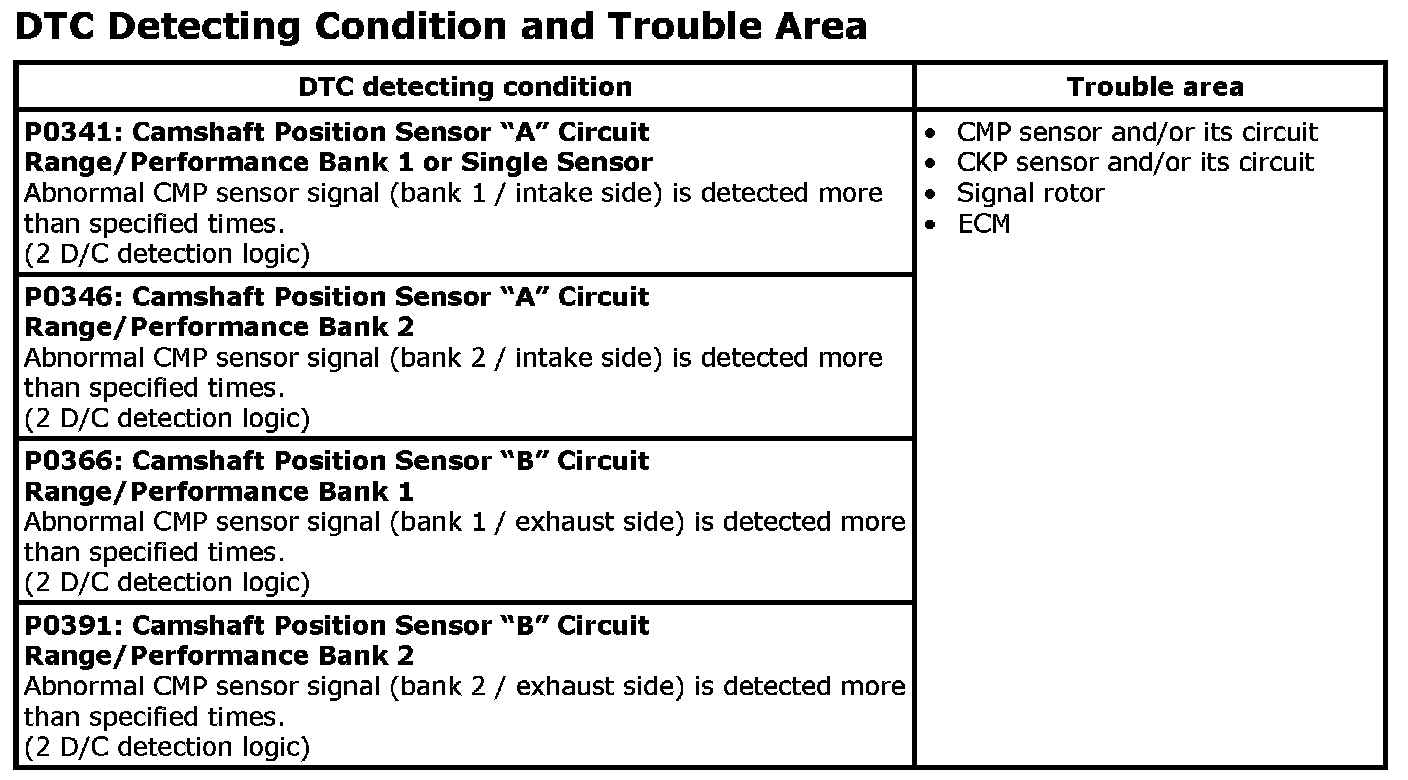

DTC P0341/ P0346 / P0366 / P0391

NOTE: For identification of each cylinder and bank, refer to Precaution for Identification of Cylinder and Bank.

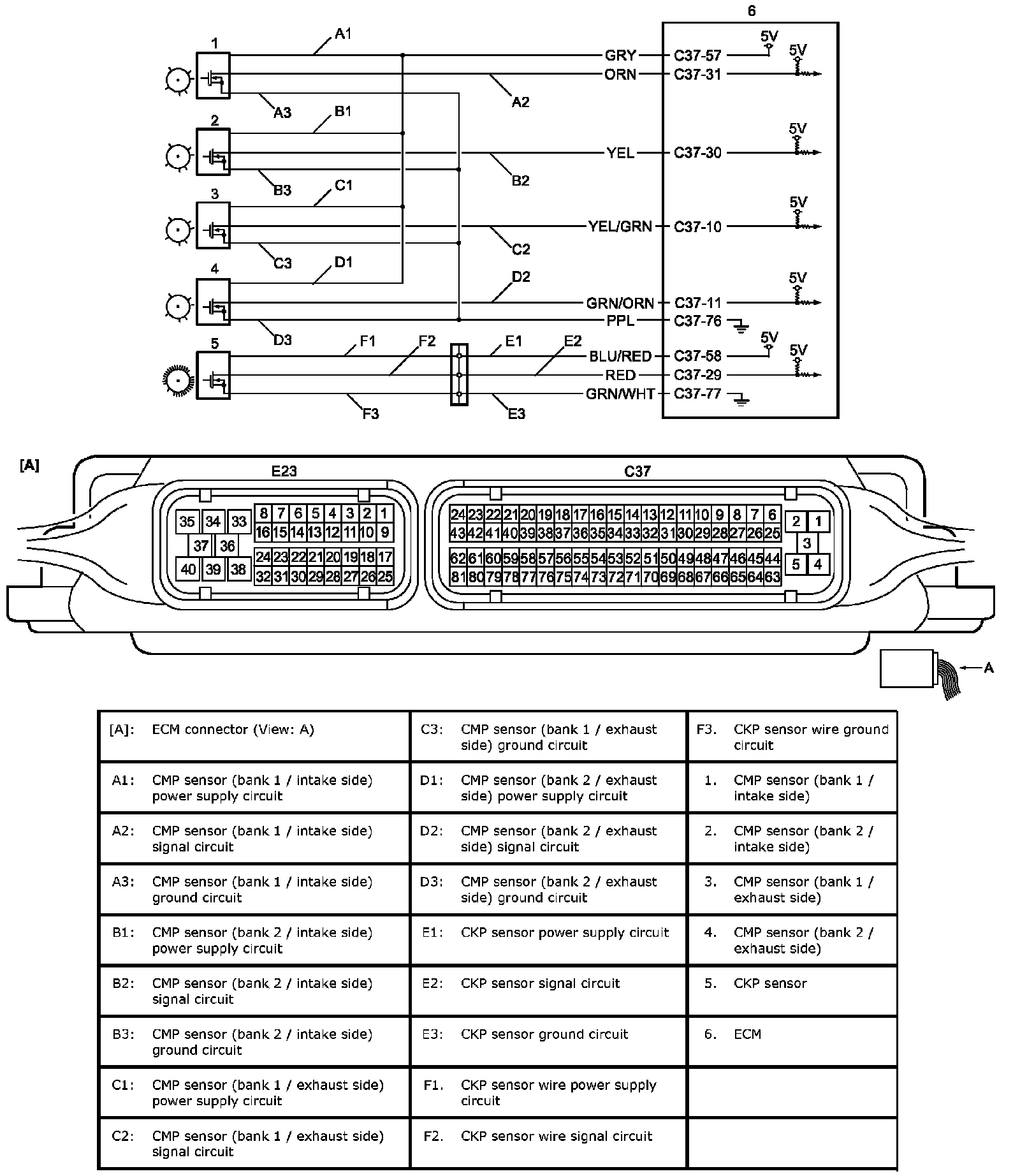

Wiring Diagram:






DTC Confirmation Procedure

1. Run engine at idle speed for 1 min.

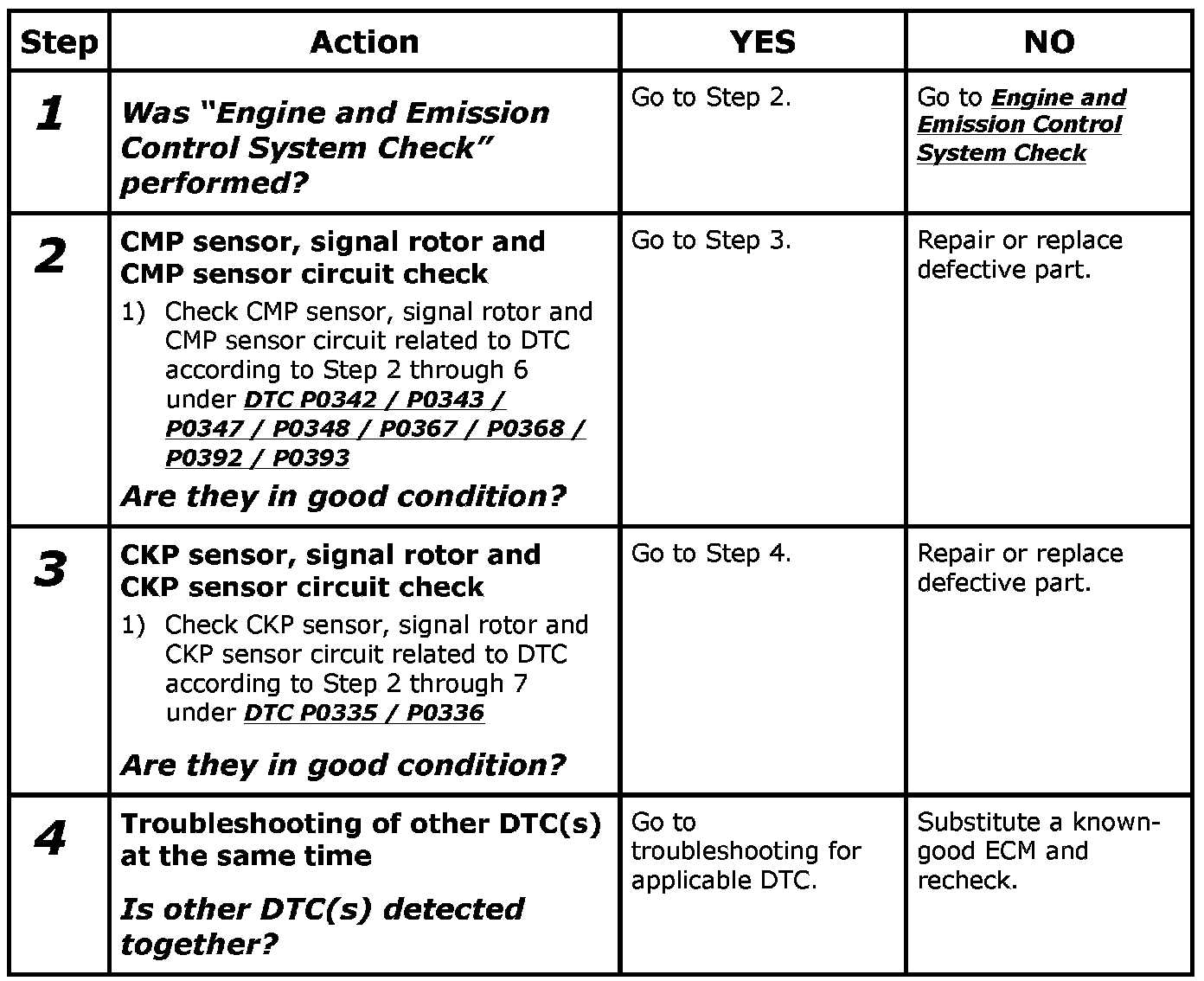

DTC Troubleshooting

Step 1-4:
