P0010

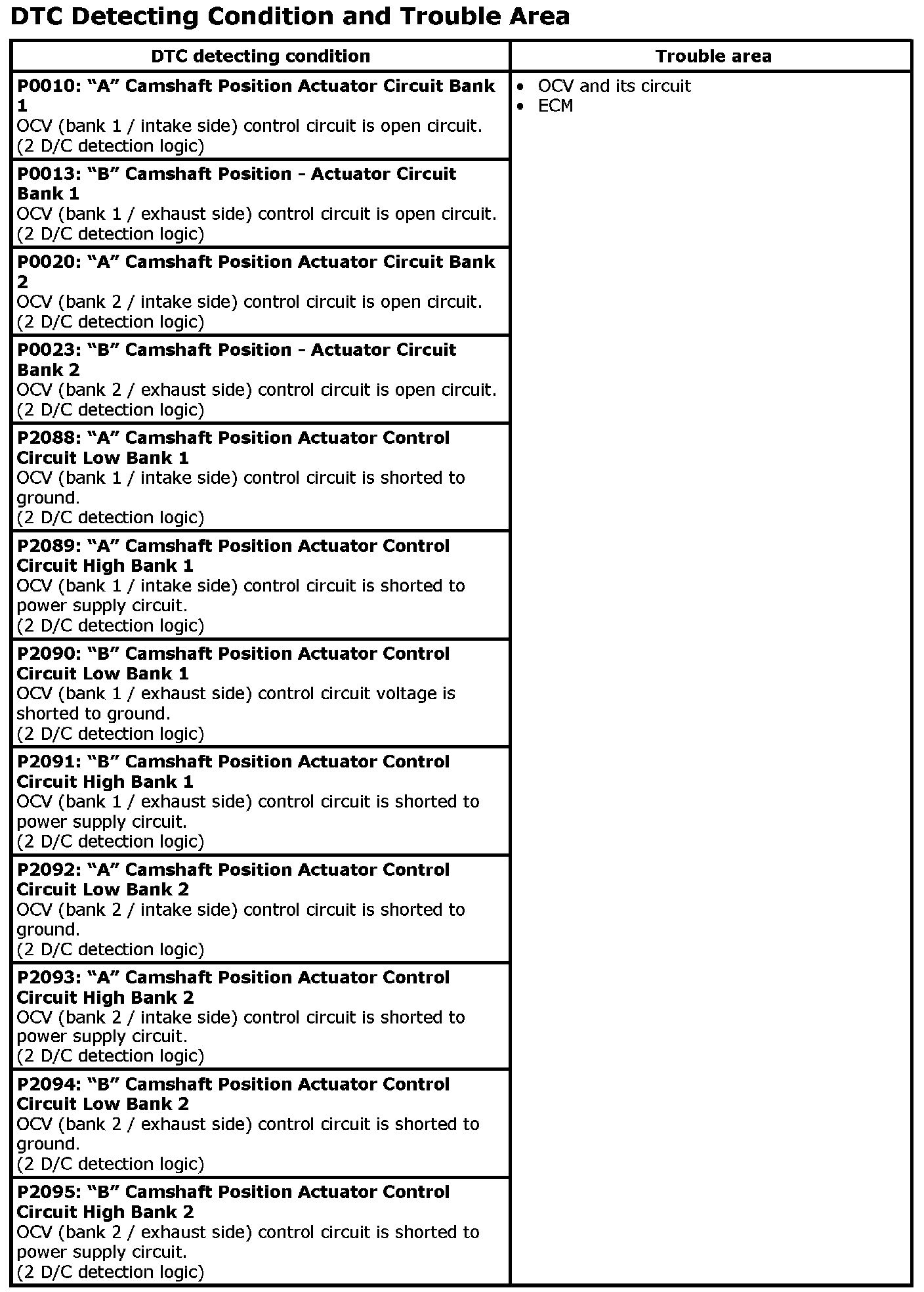

DTC P0010 / P0013 / P0020 / P0023 / P2088 / P2089 / P2090 / P2091 / P2092 / P2093 / P2094 / P2095

NOTE: For identification of each cylinder and bank, refer to Precaution for Identification of Cylinder and Bank.

Wiring Diagram:

DTC Confirmation Procedure

NOTE: Make sure that the following conditions are satisfied when using this procedure.
- Battery voltage > 10 V

1. Run engine at idle speed for 1 min.

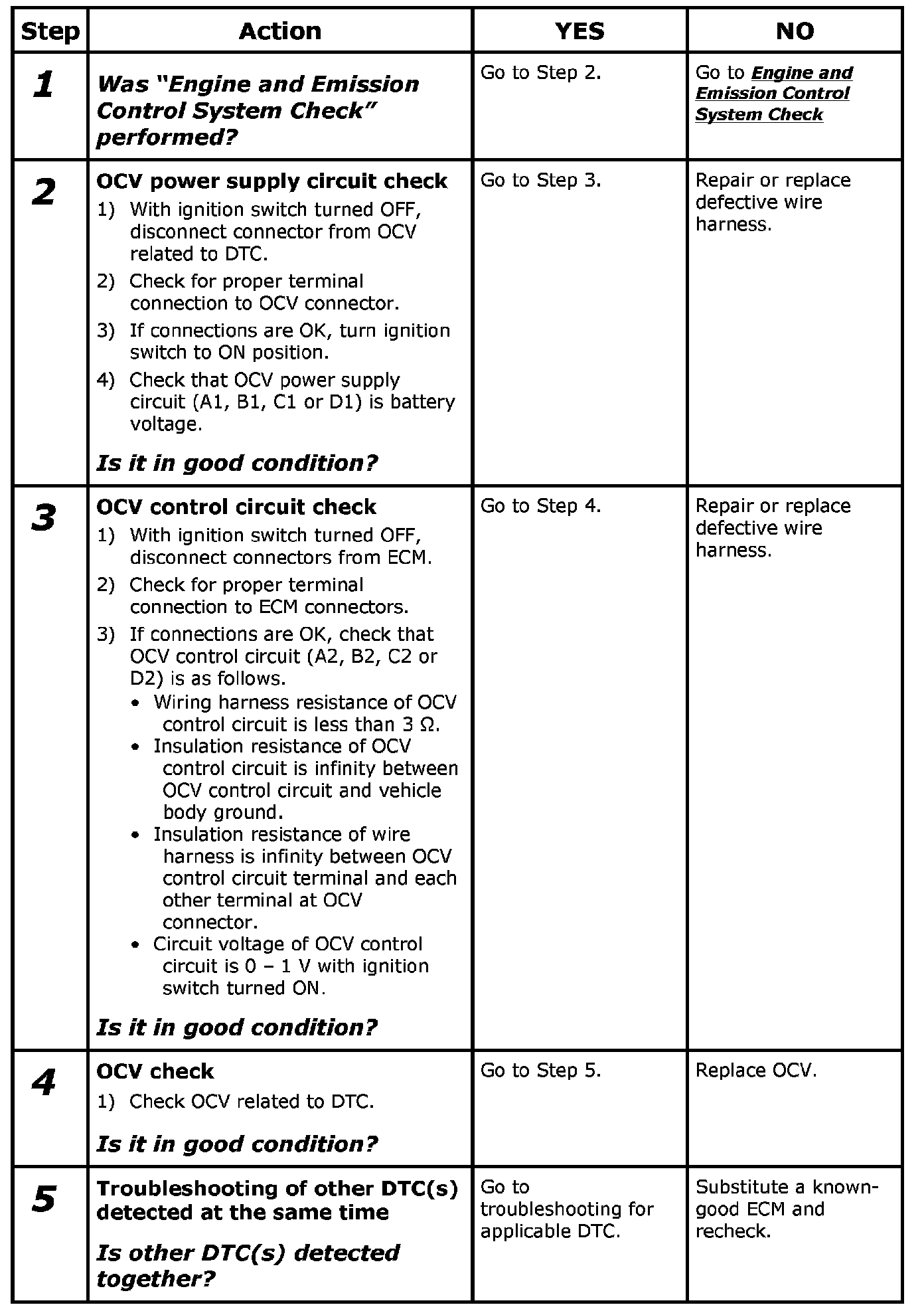

Step 1-5:
