Manual Transmission Adapter Case Disassembly and Assembly
Manual Transmission Adapter Case Disassembly and AssemblyDisassembly

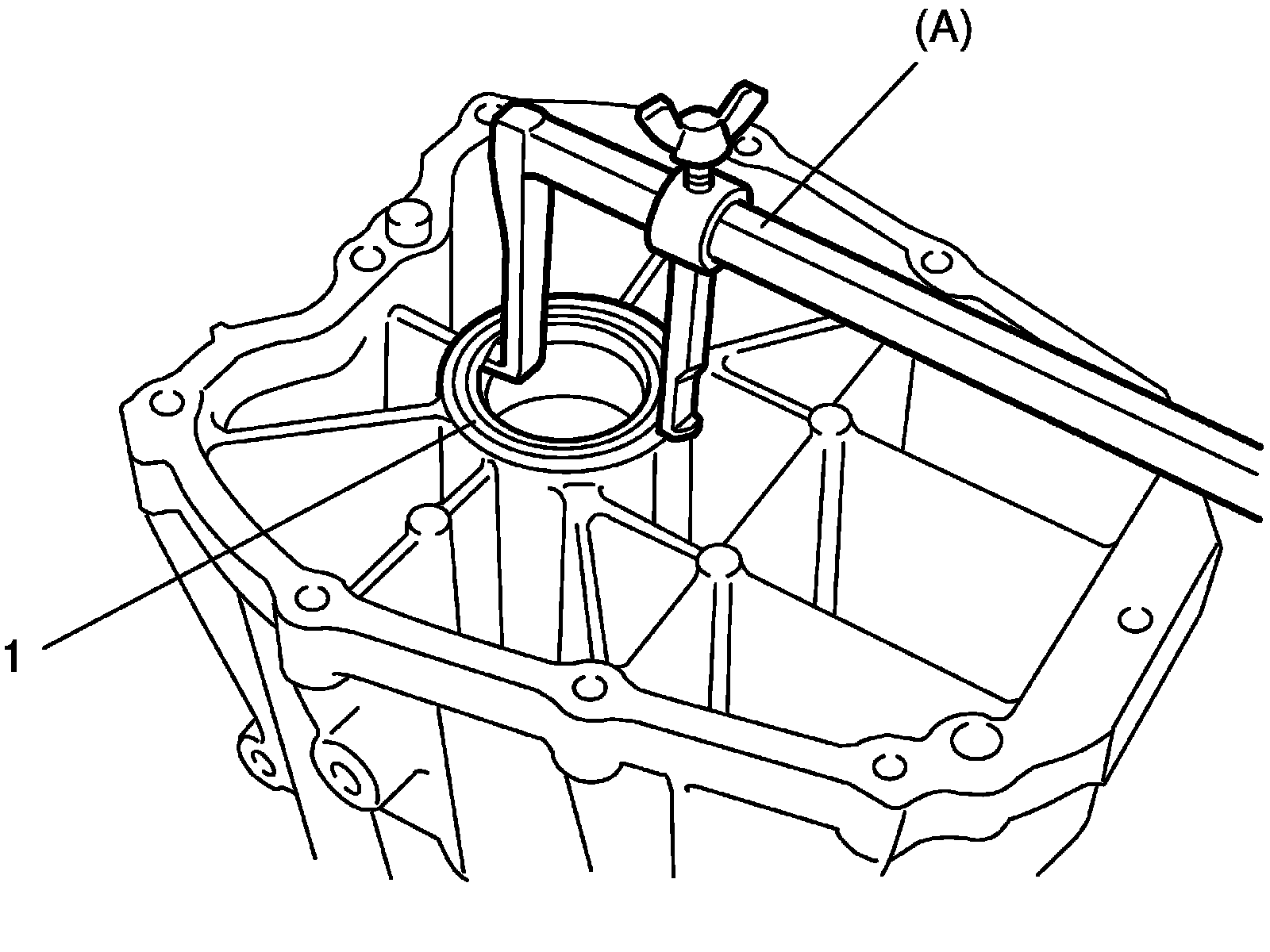

Remove oil seal (1) from adapter case using special tool.
Special Tool
(A): 09913-50121
Assembly

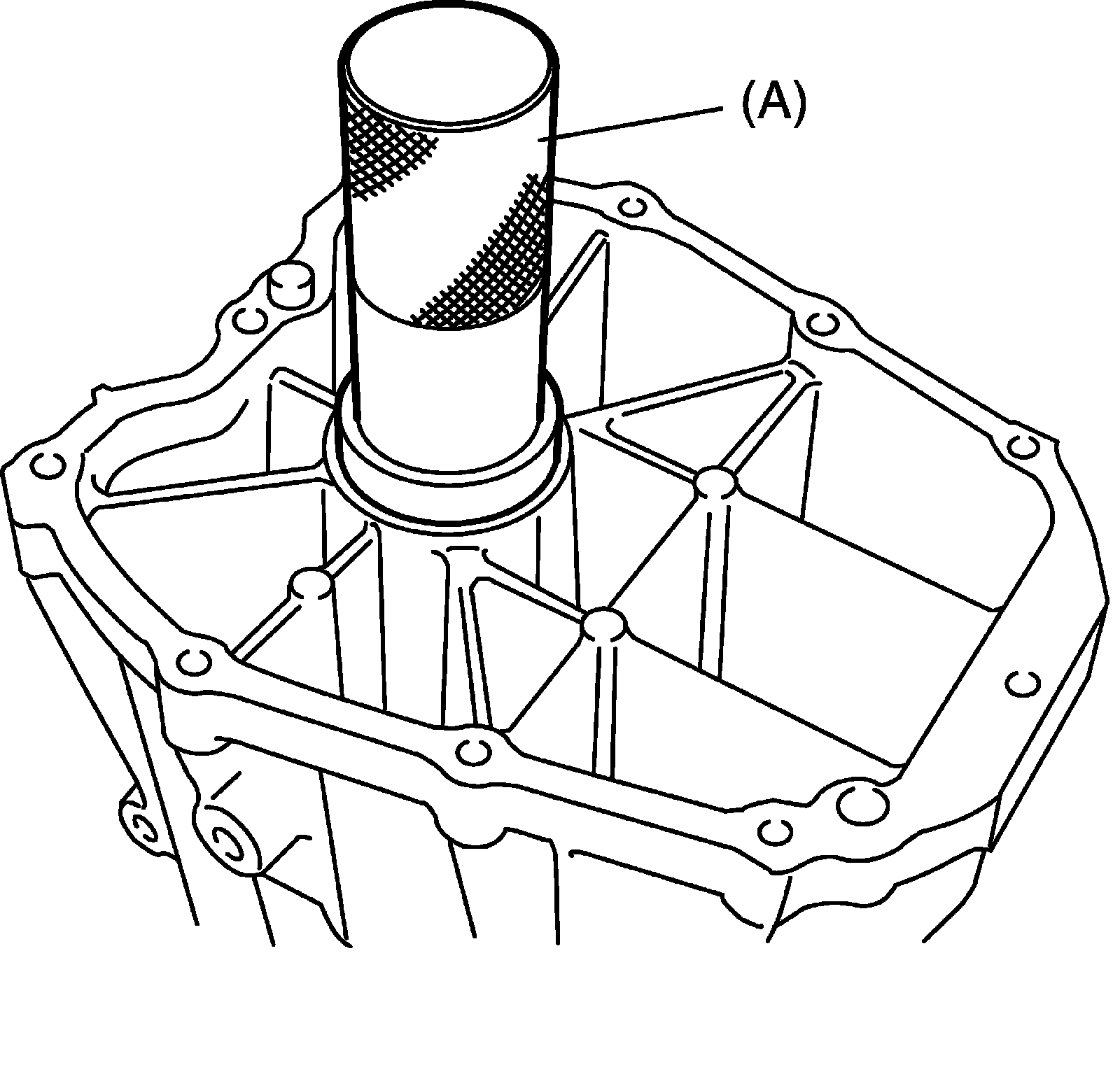

1) Set new oil seal to adapter case with its spring side facing rear case side.
2) Install oil seal until it becomes flush with case surface using special tool and hammer and apply grease to oil seal lip.
Special Tool
(A): 09913-85210
: Grease 99000-25011 (SUZUKI Super Grease A)
