4-Speed Automatic Transmission

TCM Power and Ground Circuit Check

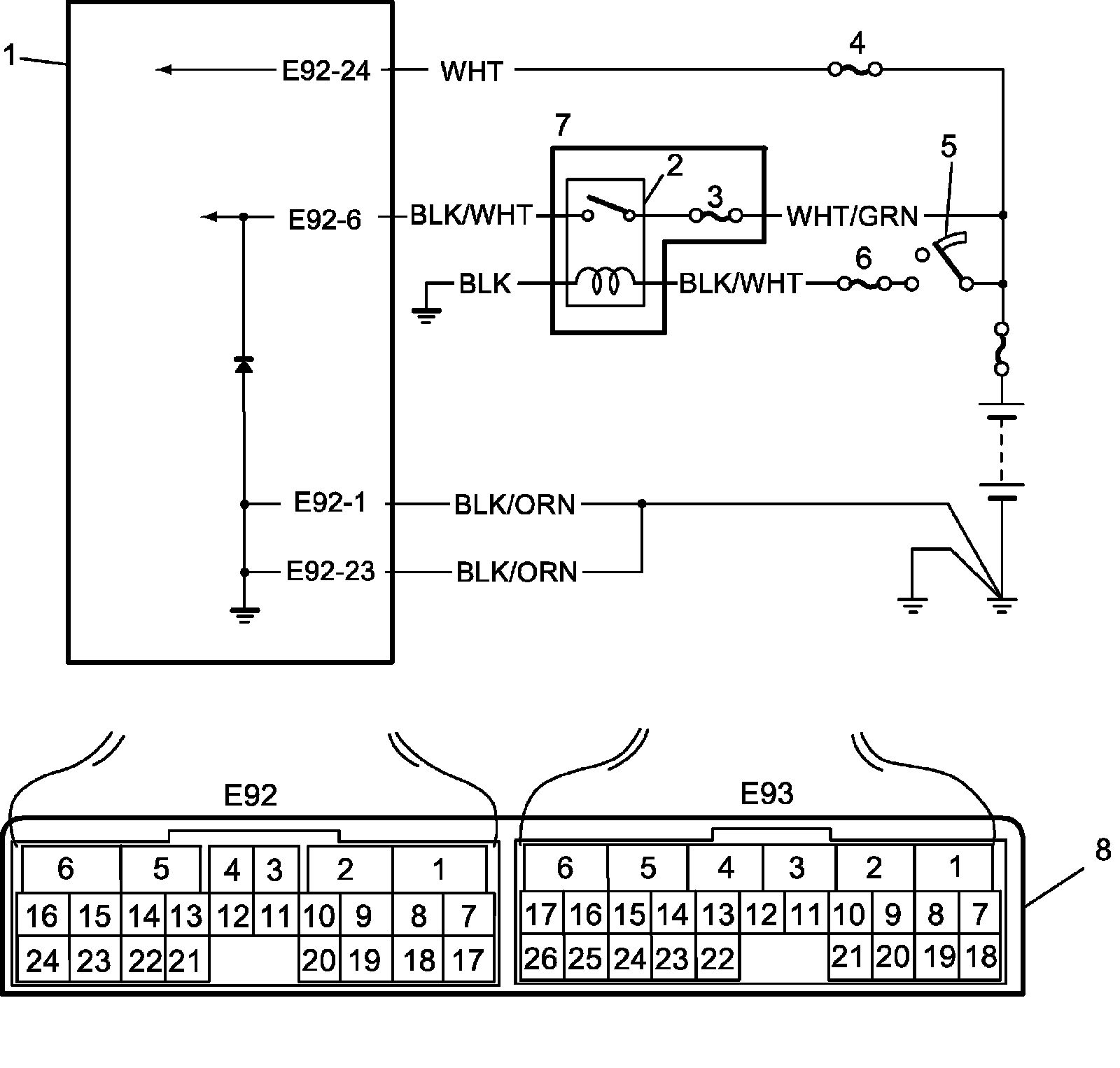

Wiring Diagram

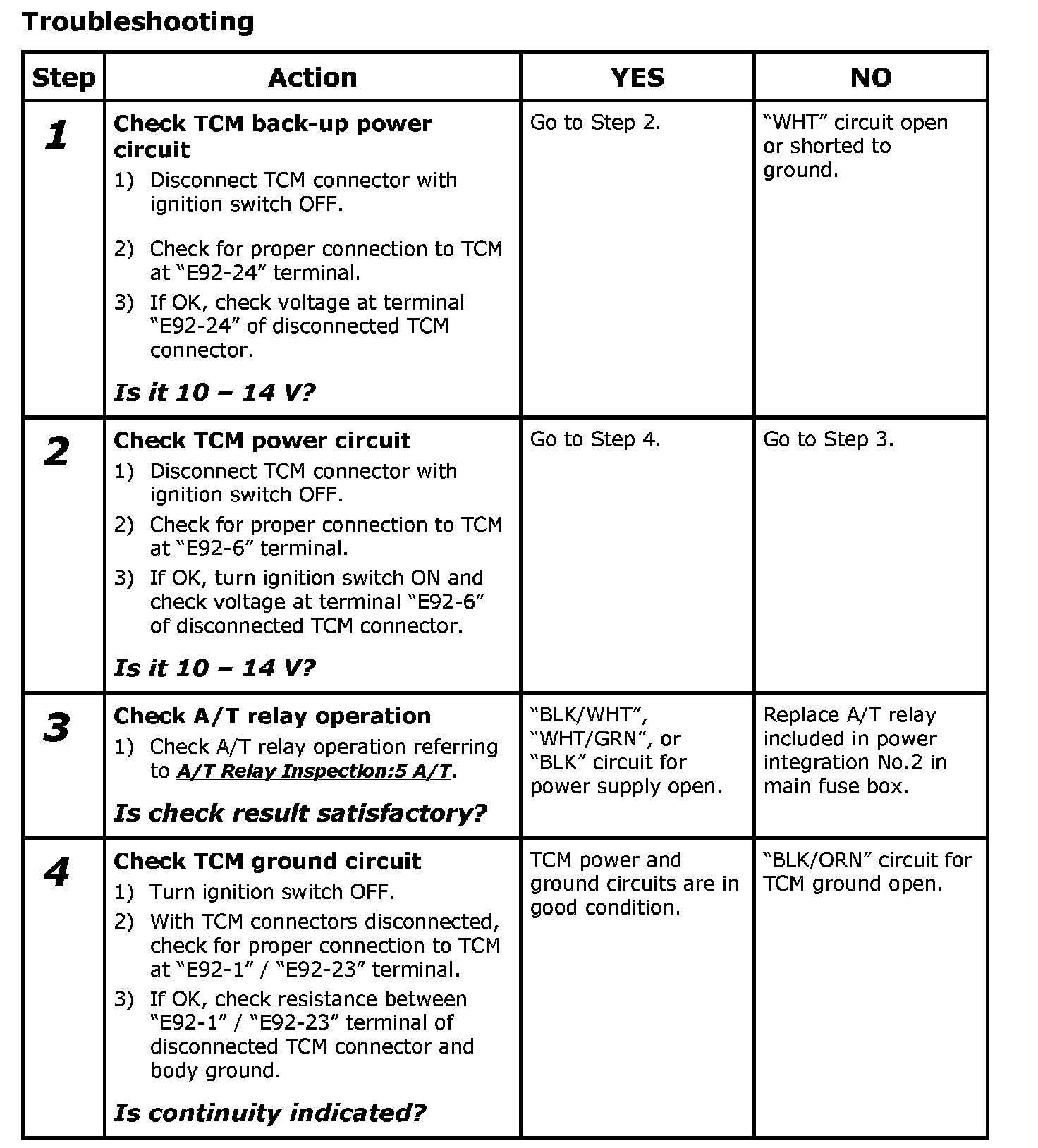

Troubleshooting

Step 1-4:
