4-Speed Automatic Transmission
Manual Selector Assembly Removal and InstallationRemoval
1) Disconnect negative cable at battery.
2) Remove front console box.
3) Disconnect shift lever switch connector.
4) Remove manual selector assembly mounting bolts.

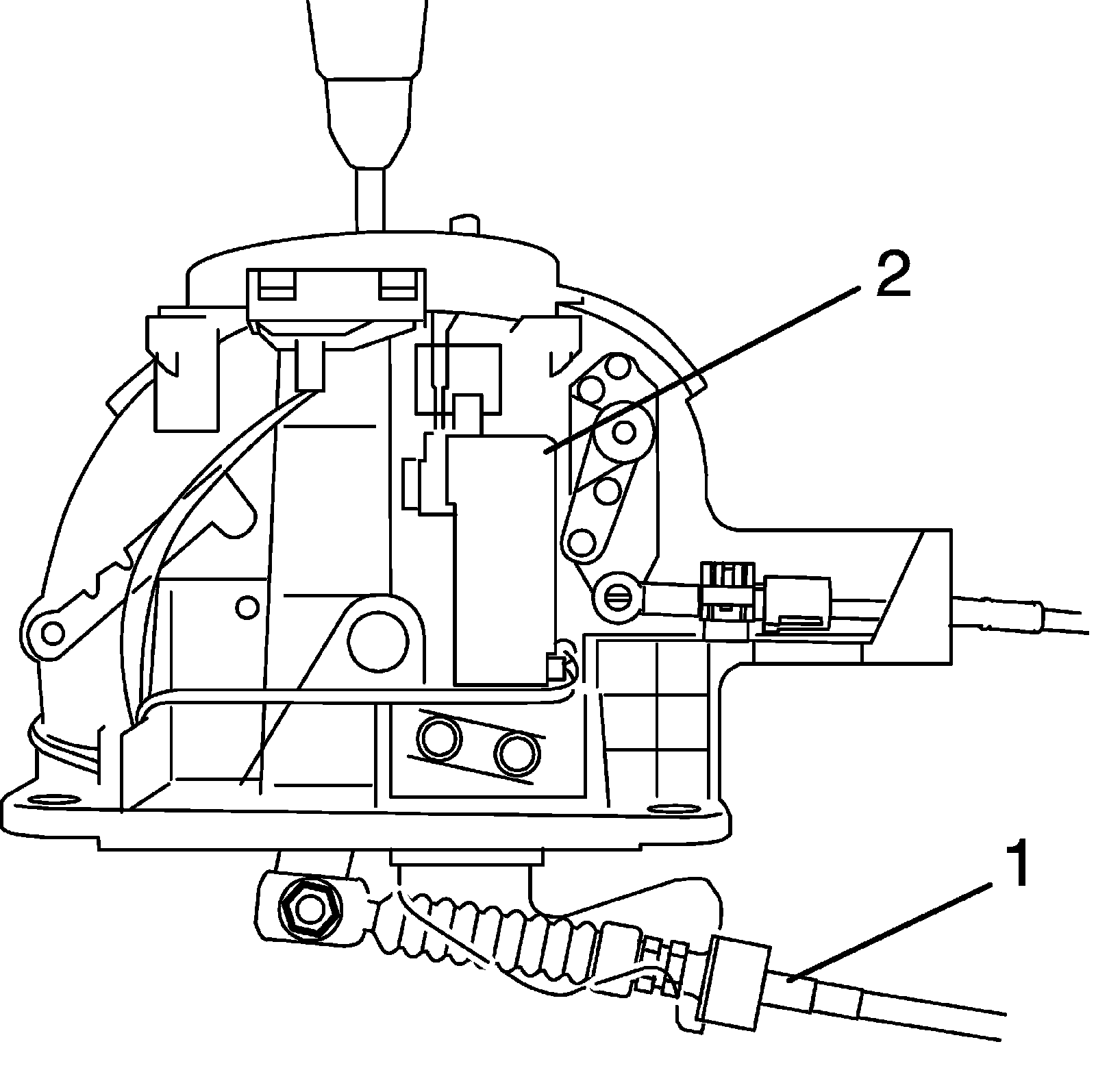

5) Disconnect select cable (1) from manual selector assembly (2).
Installation
Reverse removal procedure to install manual selector assembly noting the following instructions.
^ Tighten manual selector assembly mounting bolts to specified torque.
Tightening torque
Manual selector assembly mounting bolt: 18 Nm (1.8 kg-m, 13.0 lbf-ft)
^ Adjust select cable referring to Select Cable Adjustment:5 A/T.
