3-speed Automatic Transmission

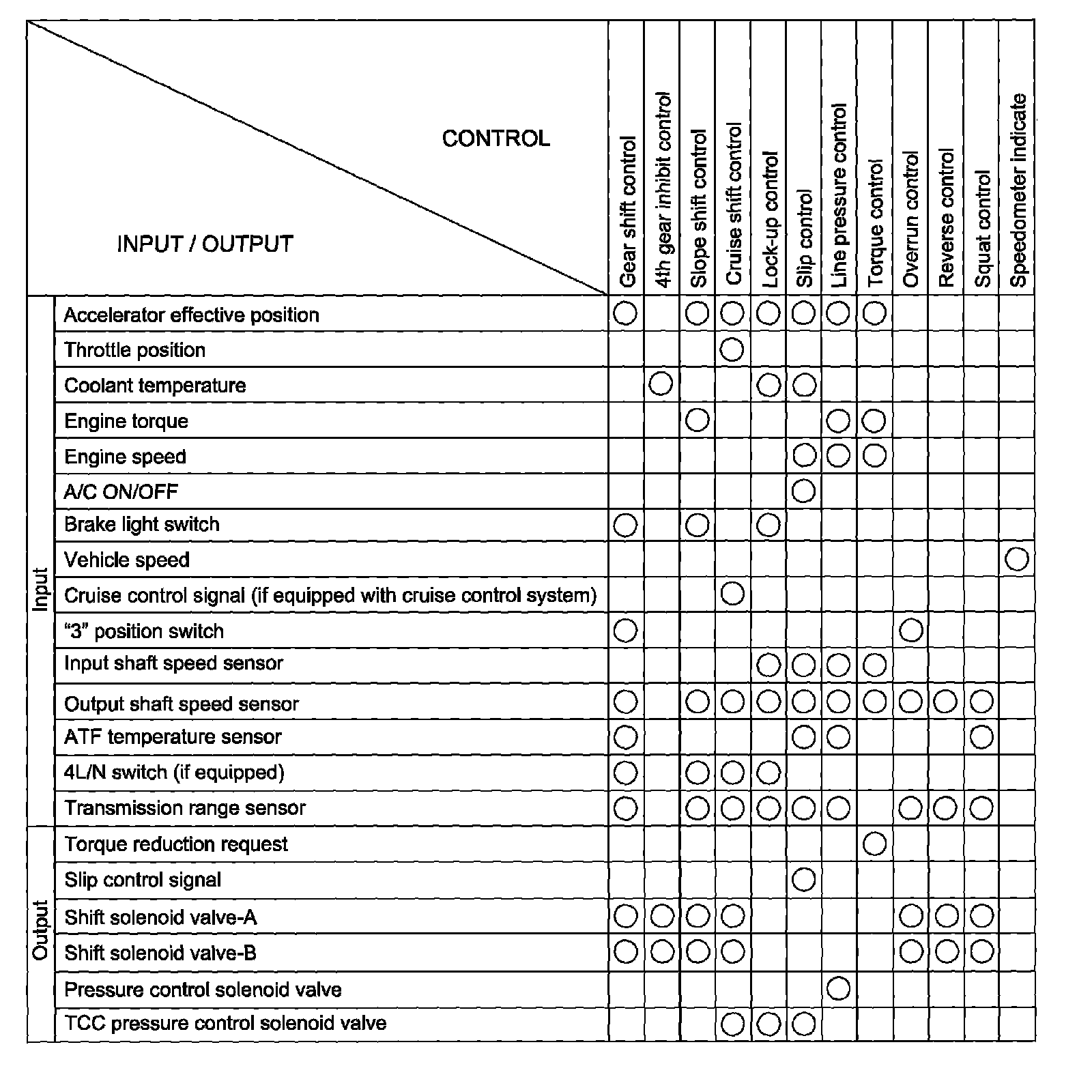

Electronic Shift Control Input / Output Table

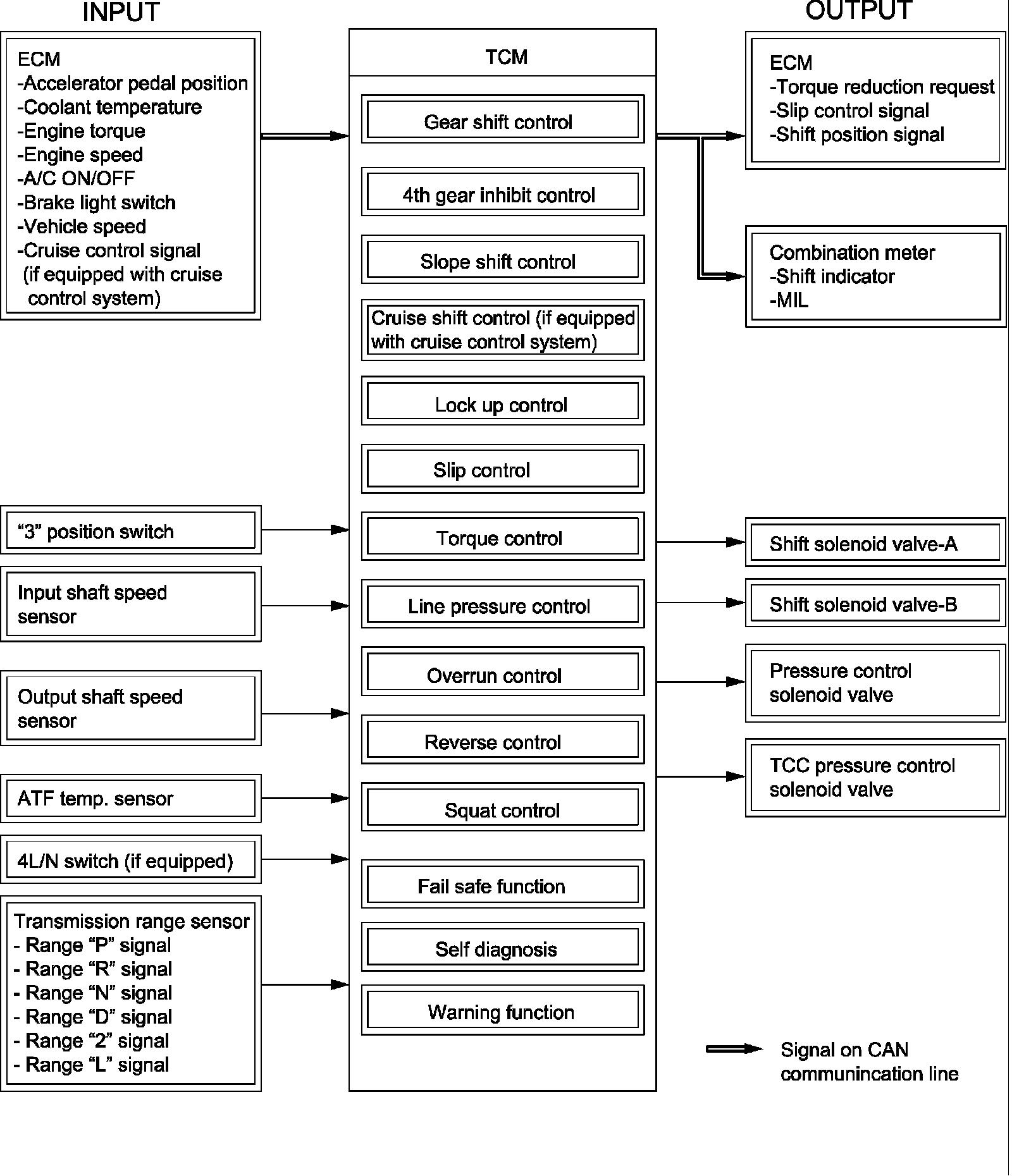

Electronic Shift Control Input / Output Diagram
