4-Speed Automatic Transmission

Select Cable Adjustment
1) Remove manual selector, refer to Manual Selector Assembly Removal and Installation:5 A/T with select cable connected.

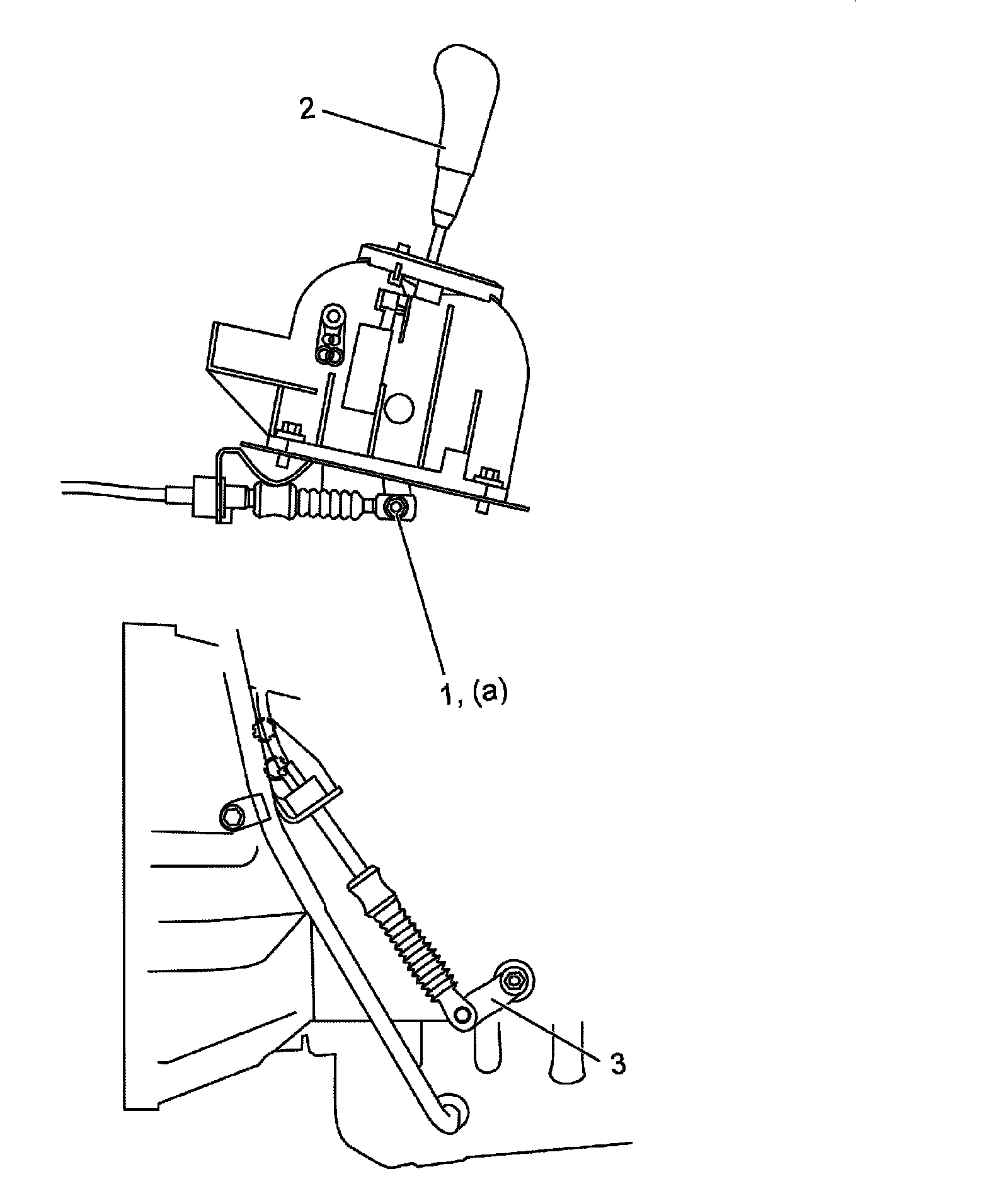

2) Loosen manual select cable end nut (1).
3) Shift select lever (2) and manual select lever (3) to "N".
4) Tighten manual select cable end nut (1) to specified torque.

Tightening torque
Manual select cable end nut (a): 13 Nm (1.3 kg-m, 9.5 lbf-ft)





5) After select cable was installed, check for the following.
^ Push vehicle with selector lever shifted to "P". Vehicle should not move.
^ Vehicle can not be driven in "N".
^ Vehicle can be driven in "D", "4", "3" and "L".
^ Vehicle can be backed in "R".
