3-Speed Automatic Transmission

Select Cable Adjustment
1) Loosen manual select cable nut.
2) Shift select lever to "N".

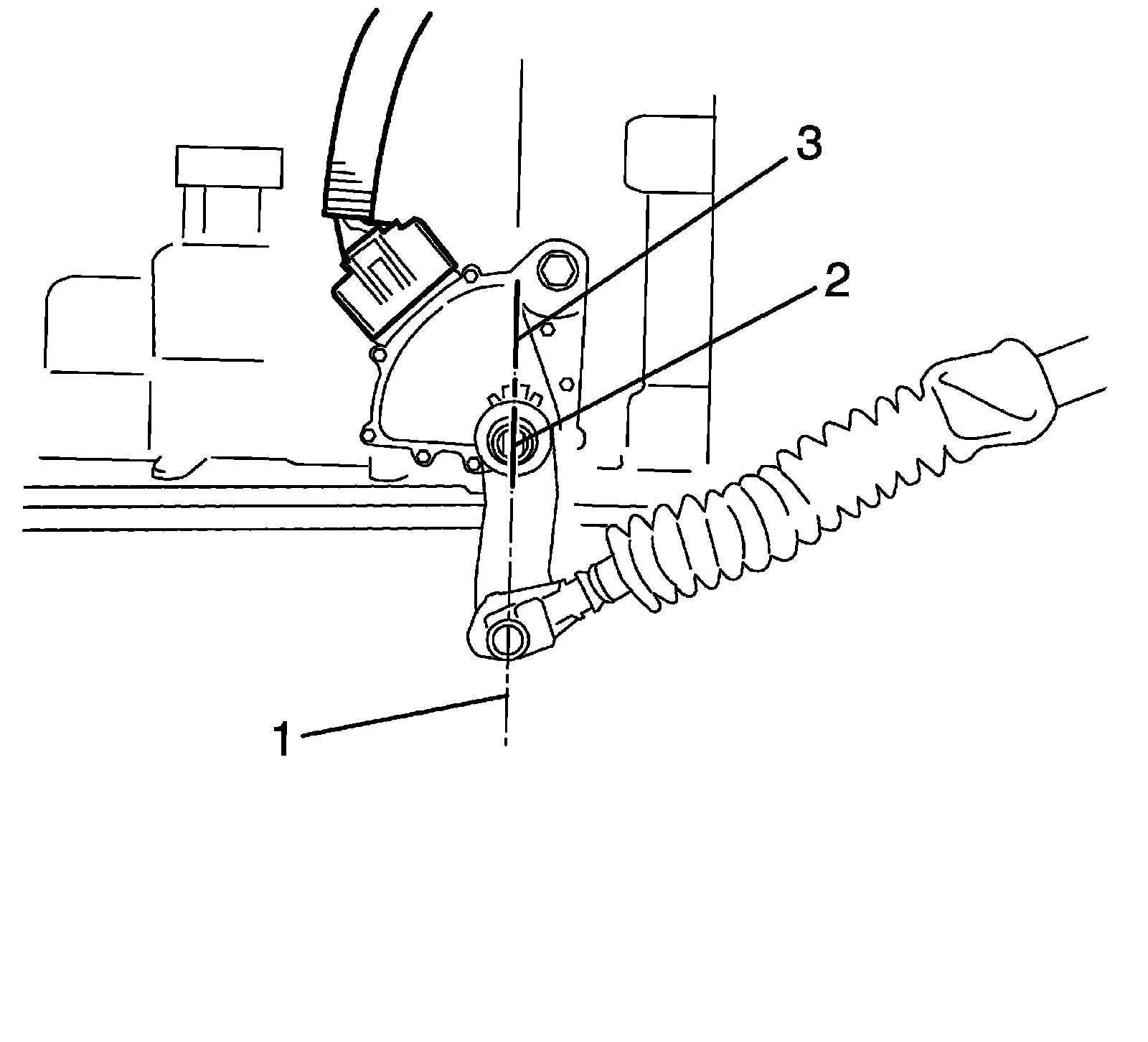

3) Align center line (1) on manual shift shaft (2) to "N" reference line (3) as shown in figure.

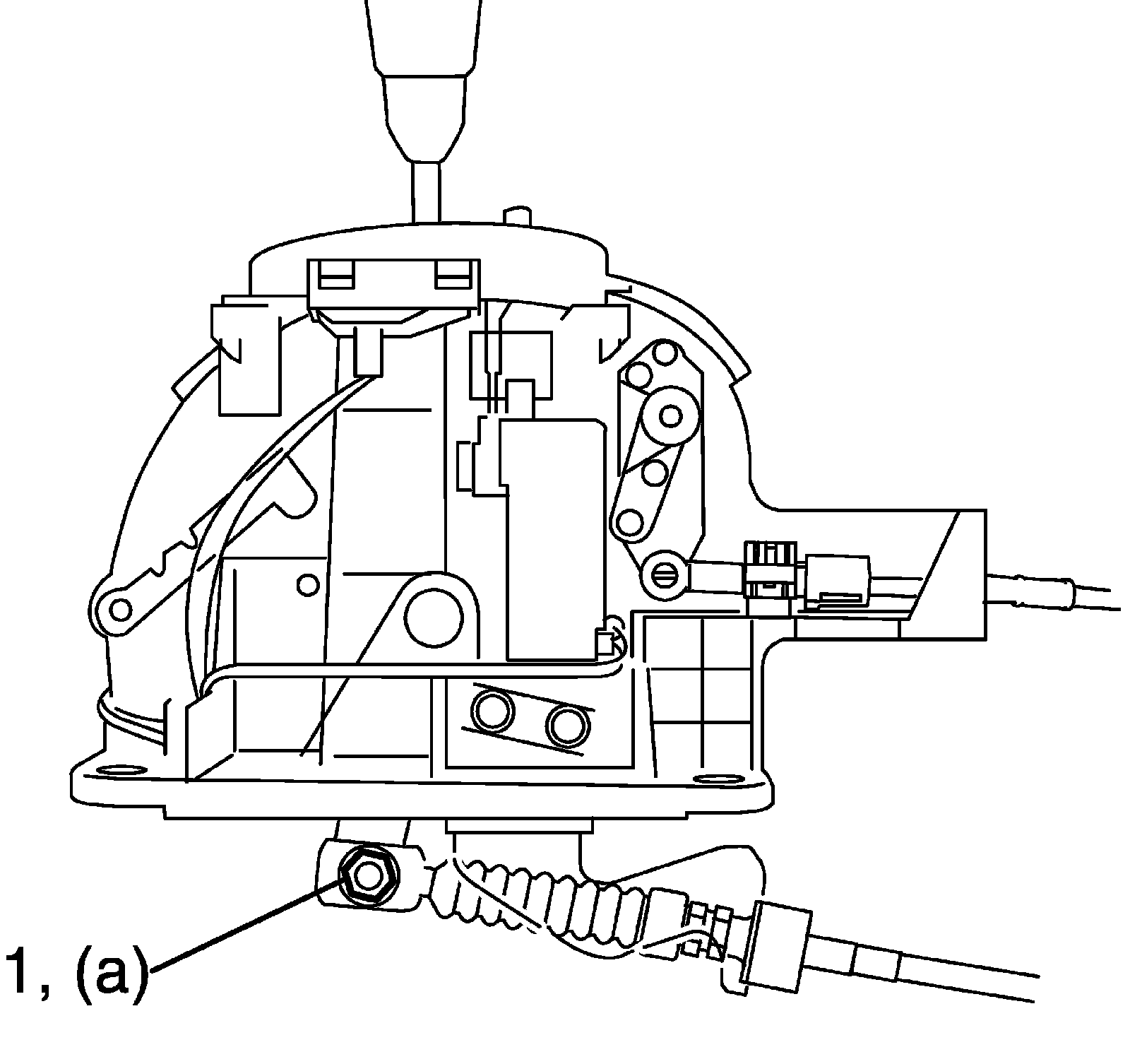

4) Tighten manual select cable nut (1) to specified torque.

Tightening torque
Manual select cable nut (a): 13 Nm (1.3 kg-m, 9.5 lbf-ft)





5) After select cable was adjusted, check for the following.
^ Push vehicle with selector lever shifted to "P". Vehicle should not move.
^ Vehicle can not be driven in "N".
^ Vehicle can be driven in "D", "3", "2" and "L".
^ Vehicle can be backed in "R".
