Control Rod / Bushing Disassembly and Assembly
Control Rod / Bushing Disassembly and AssemblyDisassembly

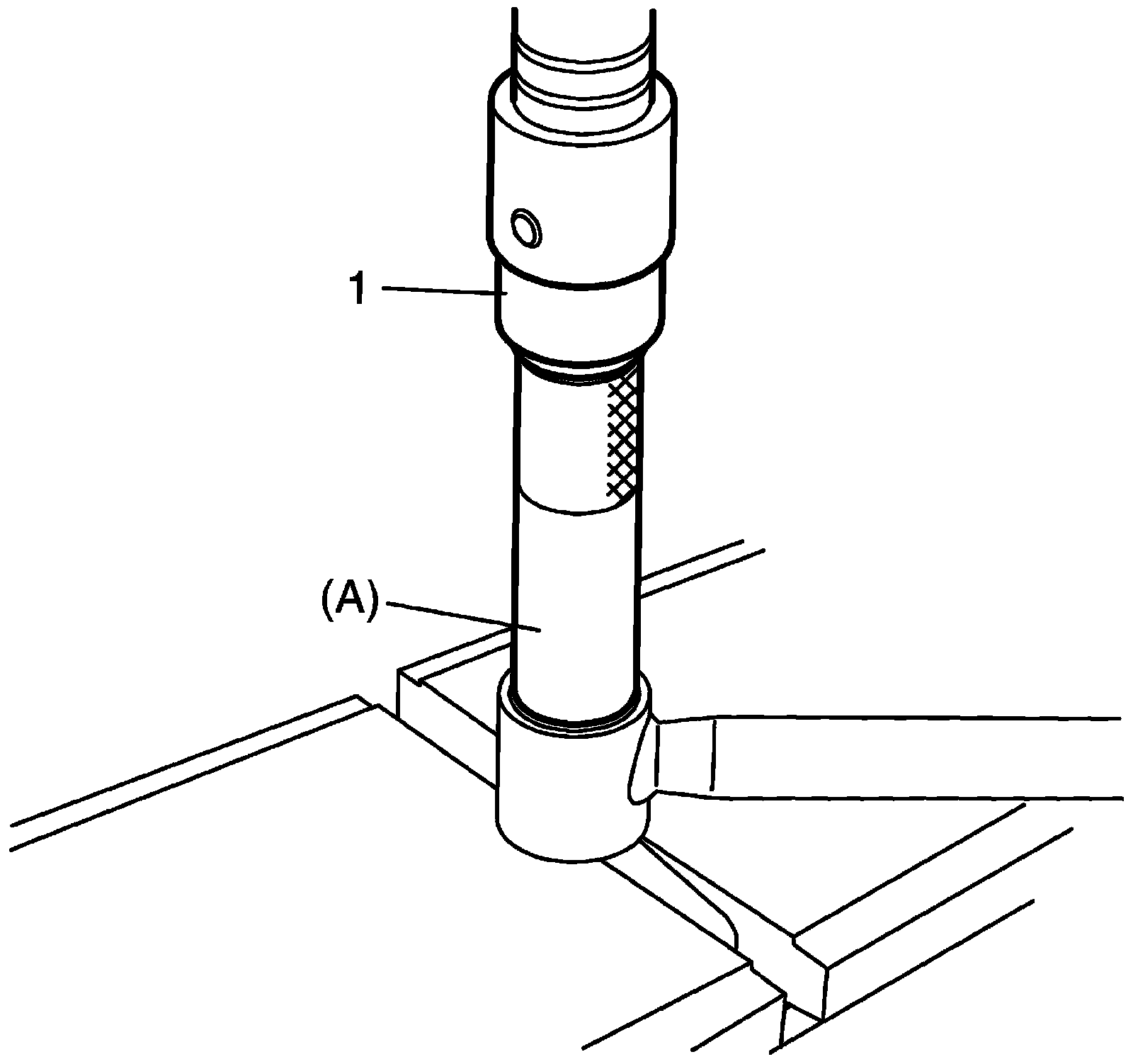

1) Push out control rod bushing by using hydraulic press (1) and special tool.
Special Tool
(A): 09913-84510
Assembly

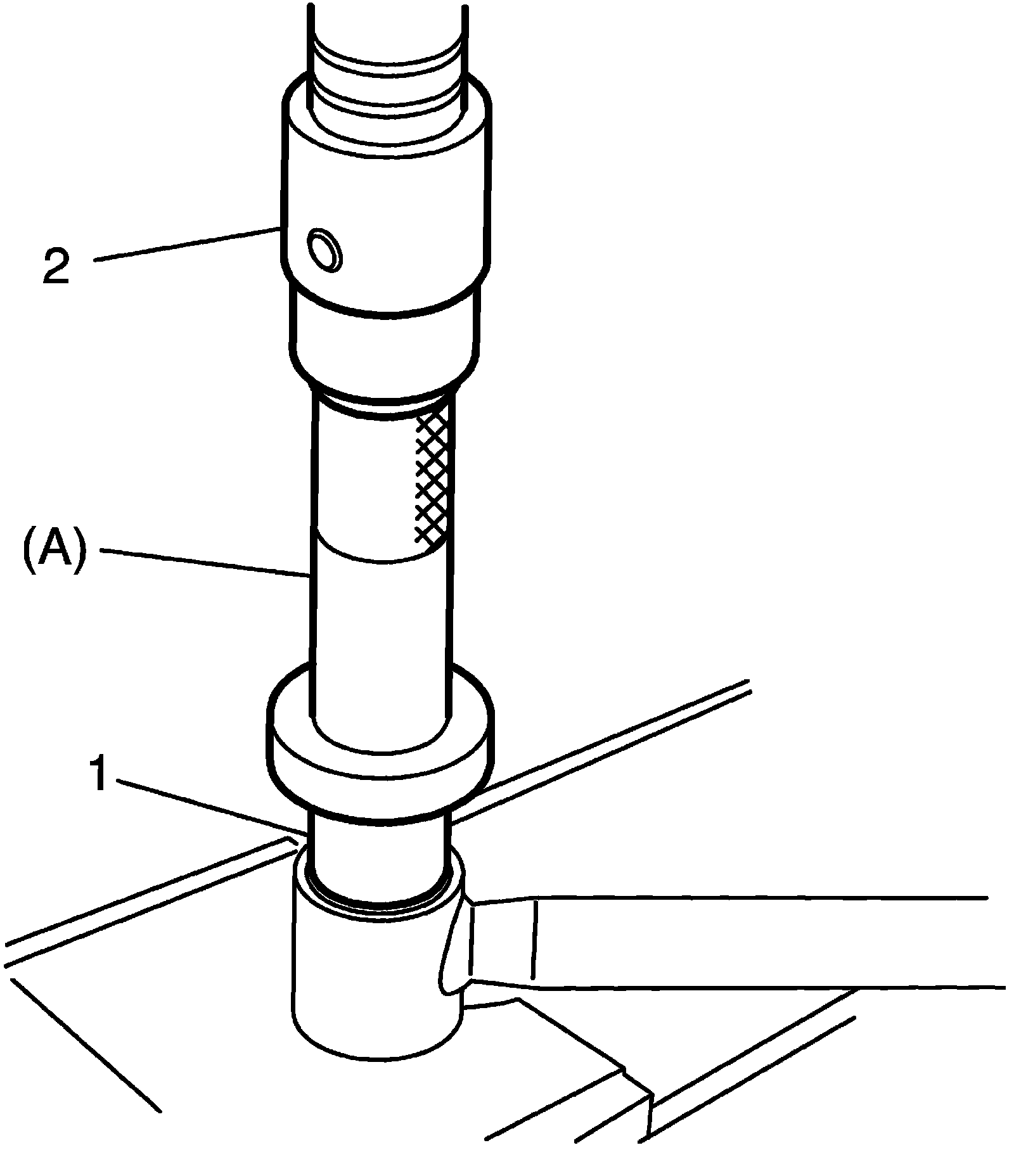

1) Press-fit control rod bushing (1) by using press (2) and special tool.
CAUTION:
Be sure to use new bushing.
Special Tool
(A): 09913-85210
2) Press-fit bushing so that dimensions "A" and "B" in figure become equal.
