Rear Suspension

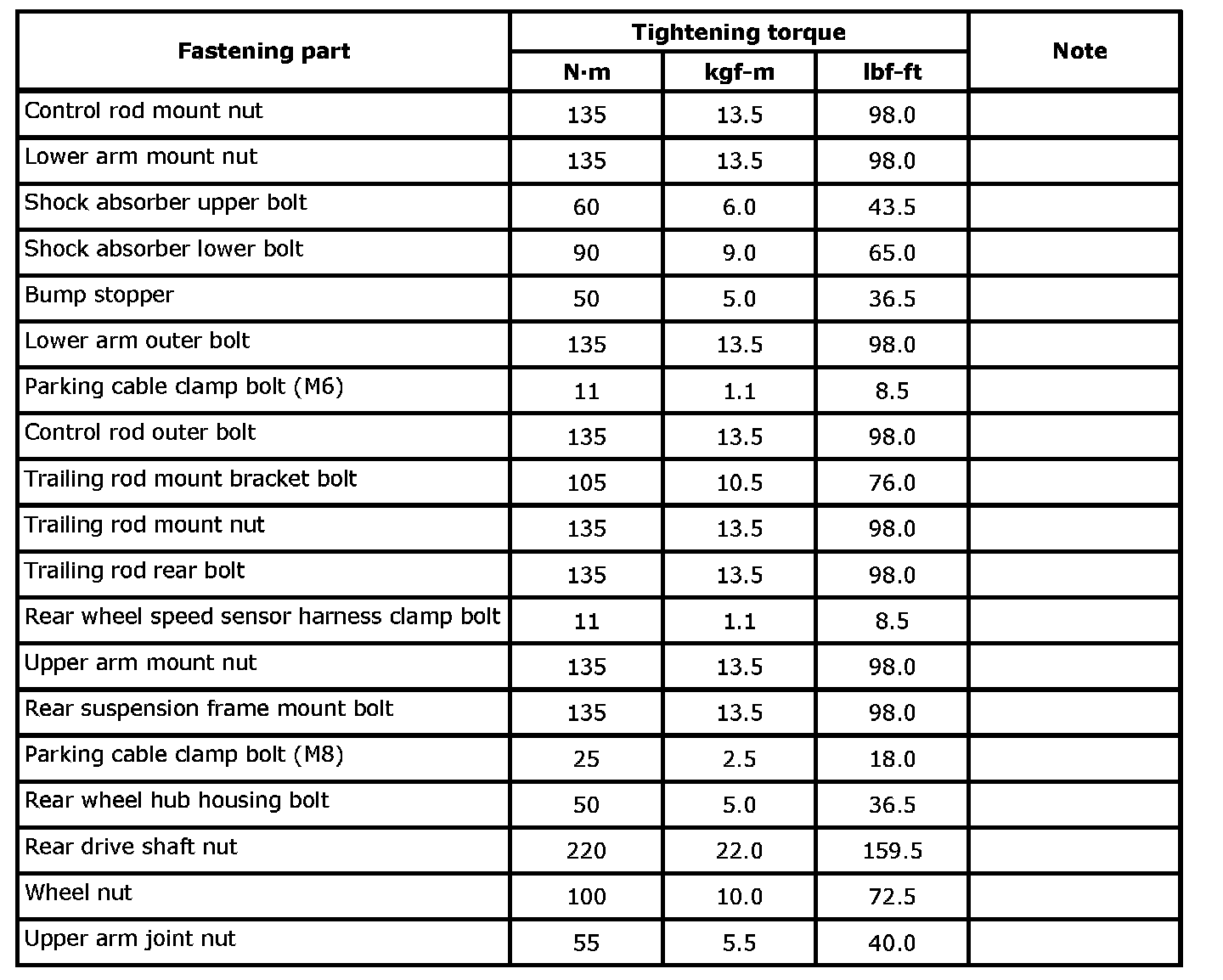

Tightening Torque Specifications

CAUTION:
For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".





NOTE:
The specified tightening torque is also described in the following.
Rear Suspension Construction
Rear Shock Absorber and Rear Cod Spring Components
Rod and Arm Components
Rear Suspension Frame Components
Rear Wheel Hub Assembly and Rear Suspension Knuckle Components

Reference:
For the tightening torque of fastener not specified, refer to Fastener Information.
