Front Suspension

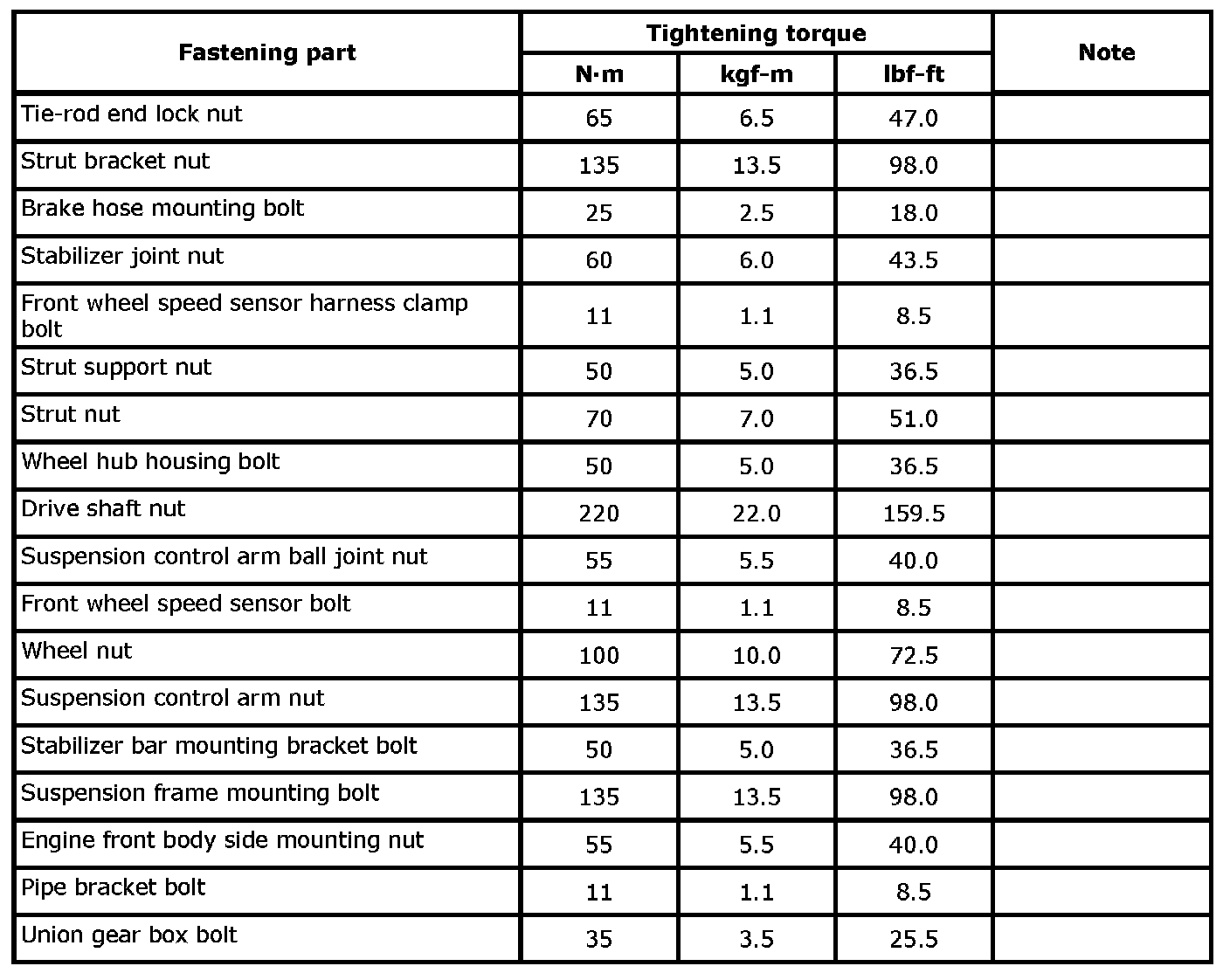

Tightening Torque Specifications

CAUTION:
For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".





NOTE:
The specified tightening torque is also described in the following.
Front Suspension Construction
Front Strut Assembly Components
Front Wheel Hub Assembly and Steering Knuckle Components
Front Suspension Frame, Stabilizer Bar and/or Bushings Components

Reference:
For the tightening torque of fastener not specified, refer to Fastener Information.
