Tightening Torque Specifications

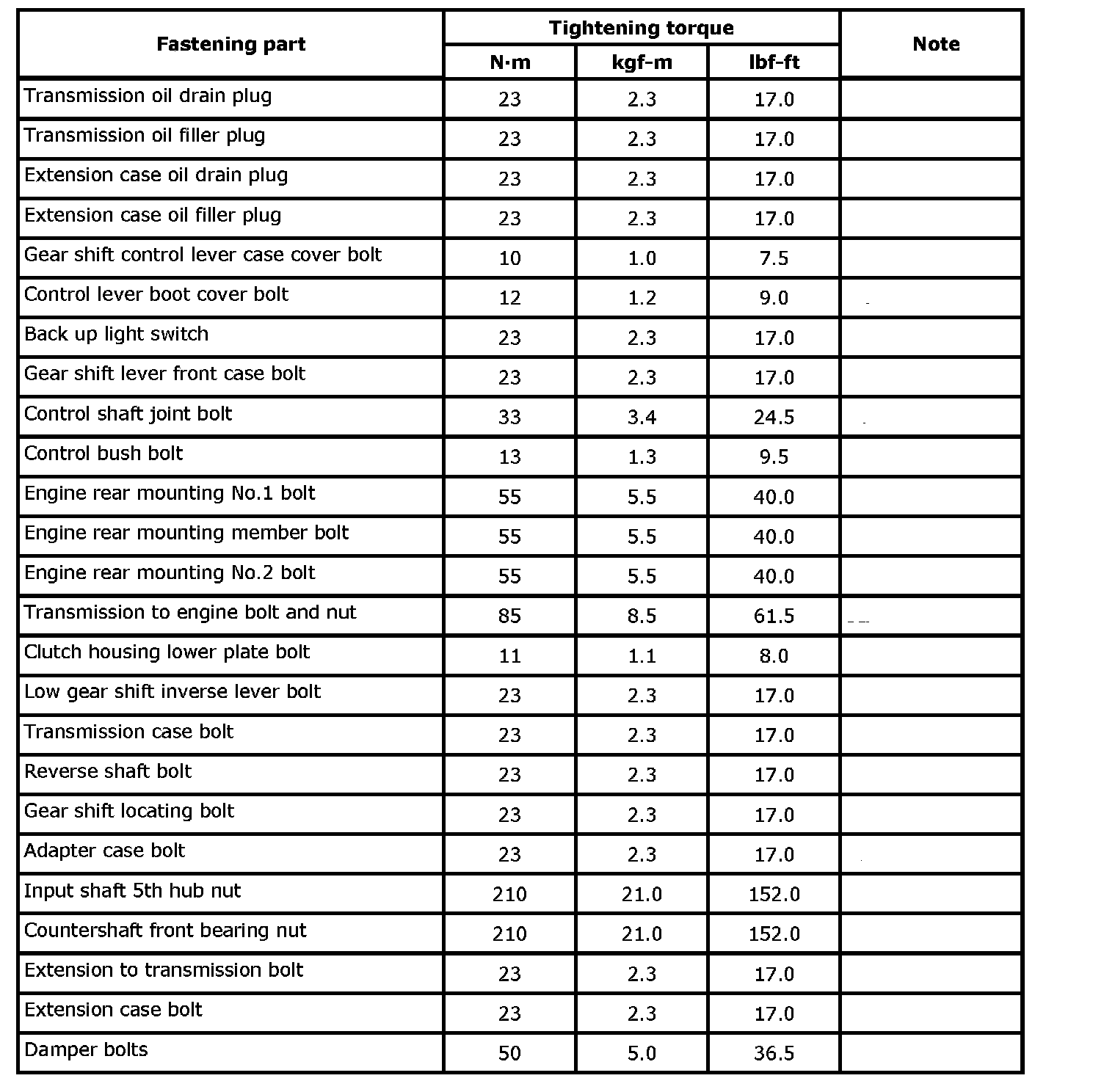

Tightening Torque Specifications

CAUTION:
For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".





NOTE:
The specified tightening torque is also described in the following.
Manual Transmission Assembly Components
Gear Shift Control Lever Assembly Components
Gear Shift Lever Front Case Assembly Components
Gear Shift Shaft and Fork Components
Input Shaft Assembly, Output Shaft Assembly and Countershaft Assembly Components
Extension Case Assembly Components

Reference:
For the tightening torque of fastener not specified, refer to Fastener Information.
