Clockspring Assembly / Spiral Cable: Testing and Inspection

Contact Coil Cable Assembly Inspection
Reference:Contact Coil Cable Assembly Removal and Installation

CAUTION:
Do not turn contact coil cable assembly more than allowable number of turns (about two and a half turns from the center position clockwise or counterclockwise respectively), or coil will break.

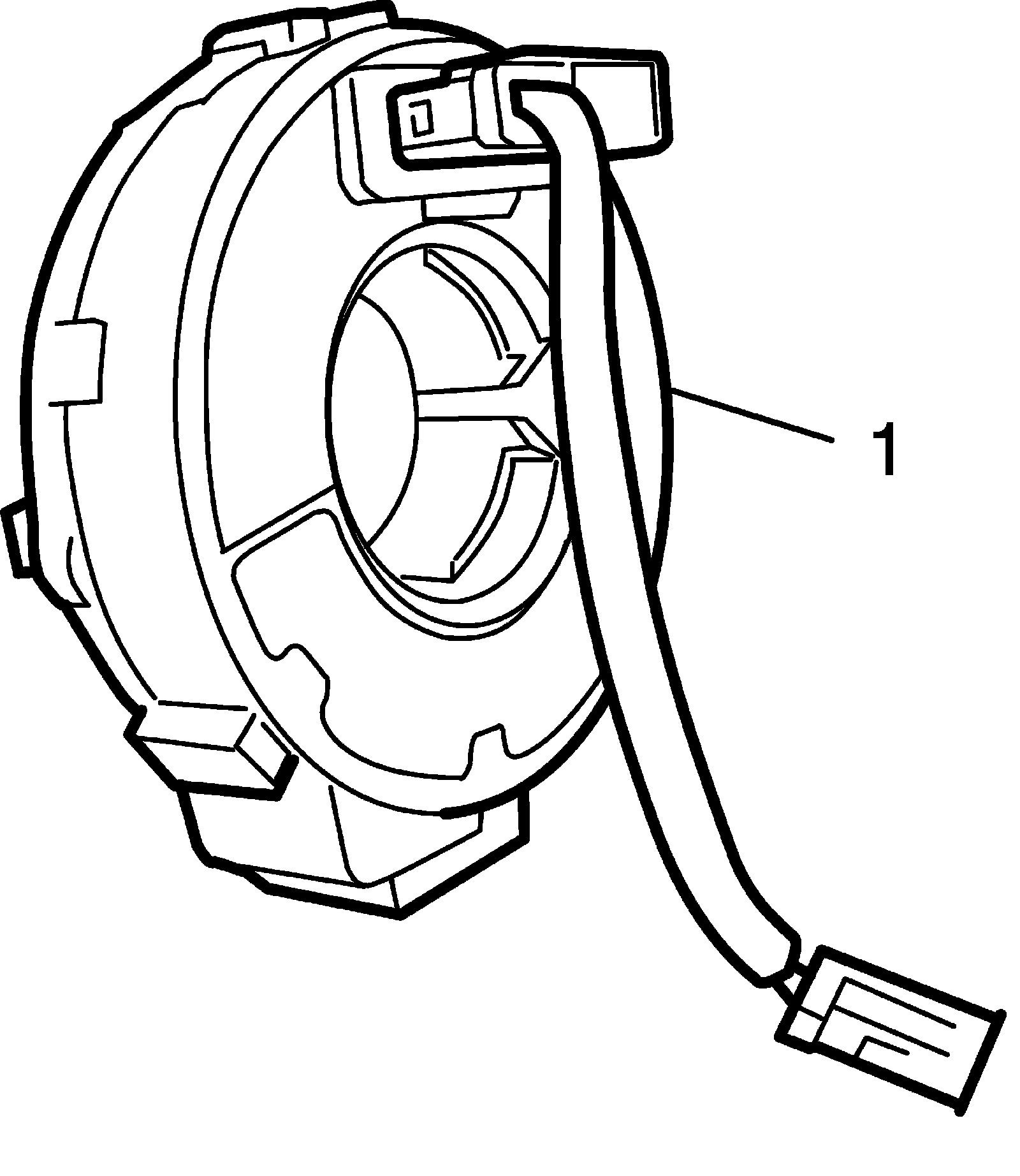

Check contact coil cable assembly (1) wire harness for any signs of scorching, melting or other damage.
If it is damaged, replace.
