Ballast Removal and Installation
Ballast Removal And InstallationWARNING: Be sure to read Precautions for Discharge Headlight Service (If Equipped)carefully before working. Neglecting them may result in personal injury.
Removal
1. Check to ensure that lighting switch is at OFF position.
2. Disconnect negative (-) cable at battery.
3. Remove headlight housing referring to Headlight Housing Removal and Installation.

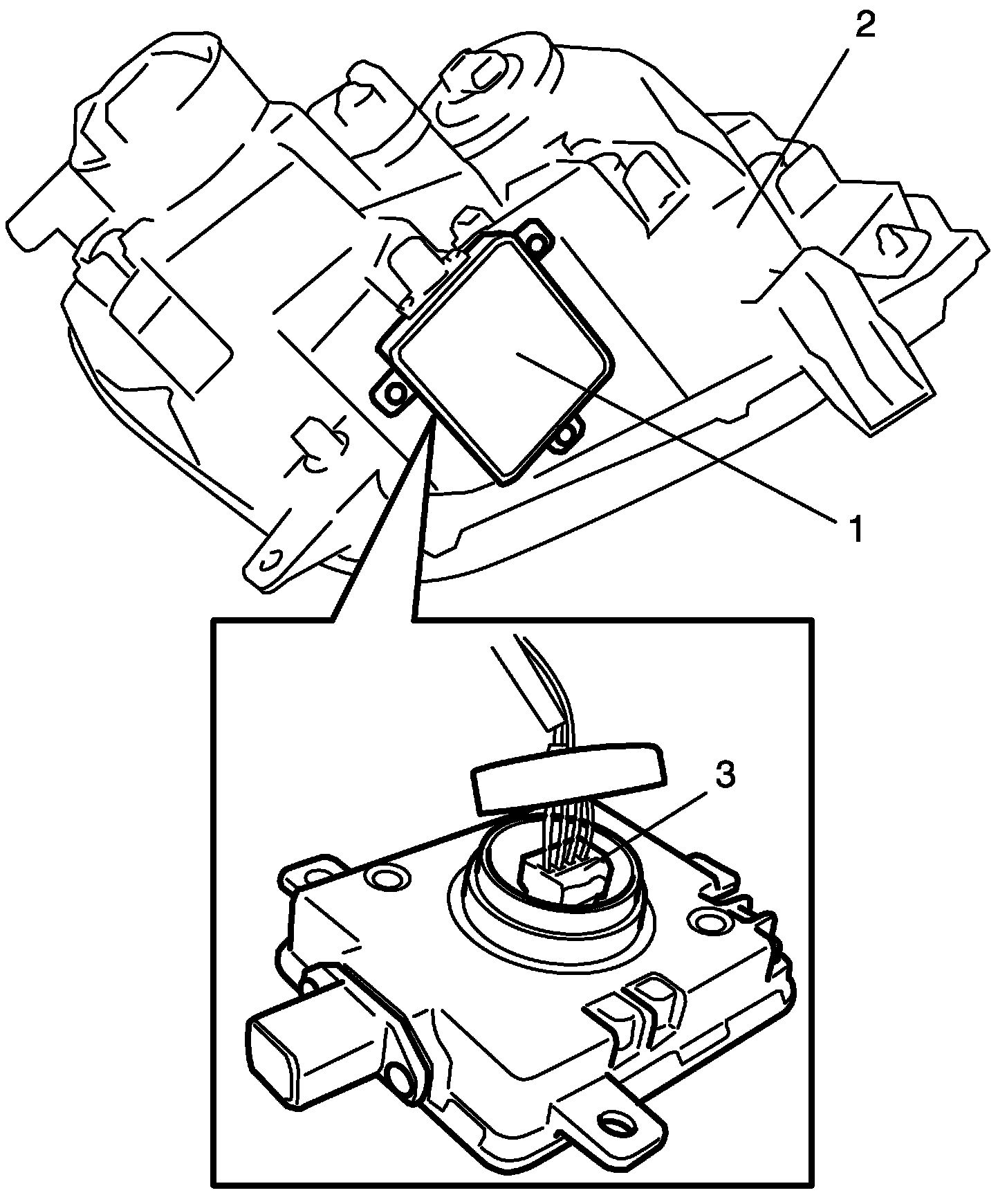

4. Remove ballast (1) from headlight housing (2).
5. Disconnect connector (3) from ballast.
Installation
Reverse removal procedure noting the following.
- Connect connectors securely.
- After installation, be sure to inspect and adjust aiming referring to Headlight Aiming Adjustment with Screen.
