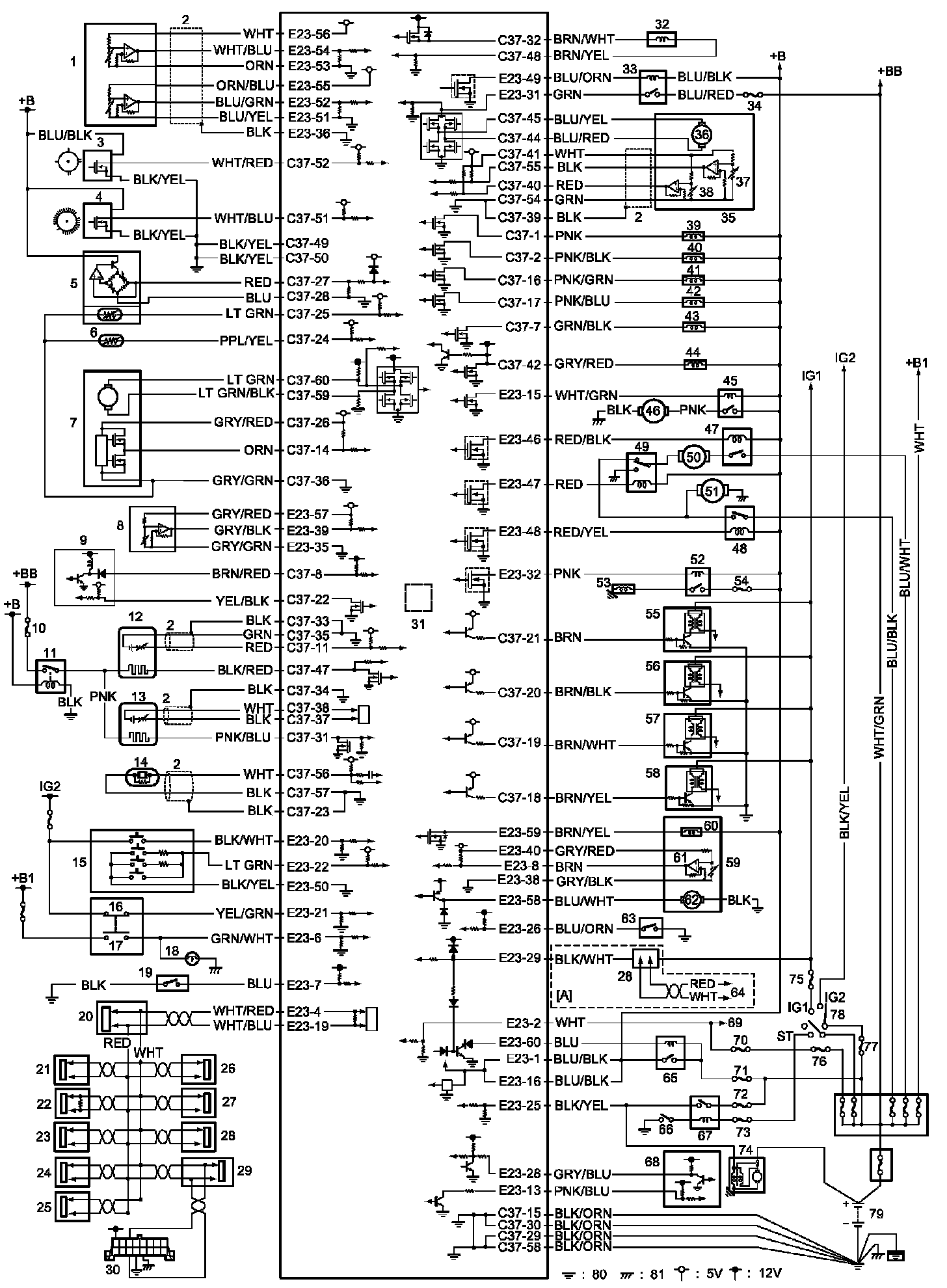

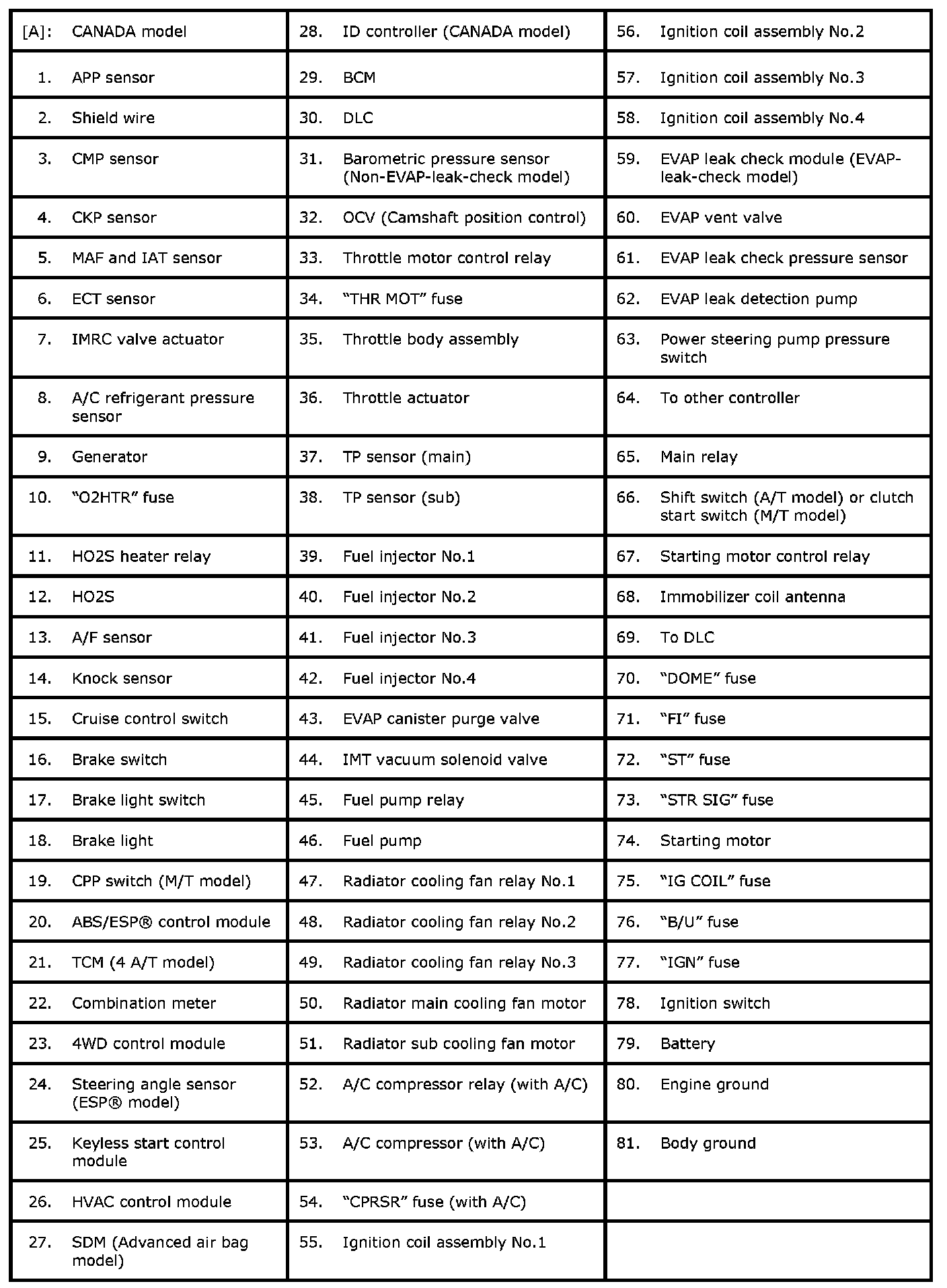

Engine Control System Circuit Diagram

Engine Control System Circuit Diagram

NOTE: For identification of each cylinder, refer to Precautions for Identification of Cylinder.
