Camshaft Position Control (VVT: Variable Valve Timing) Monitor (EVAP Leak Check Model)

OBD System Description - Camshaft Position Control (VVT: Variable Valve Timing) Monitor (EVAP Leak Check Model)

DTC Description / Detecting / Confirmation Procedure

P0010
Refer to DTC P0010 P0010
P0011, P0012
Refer to DTC P0011 P0011
P0016
Refer to DTC P0016 P0016


CMP Control System Monitor

Operation

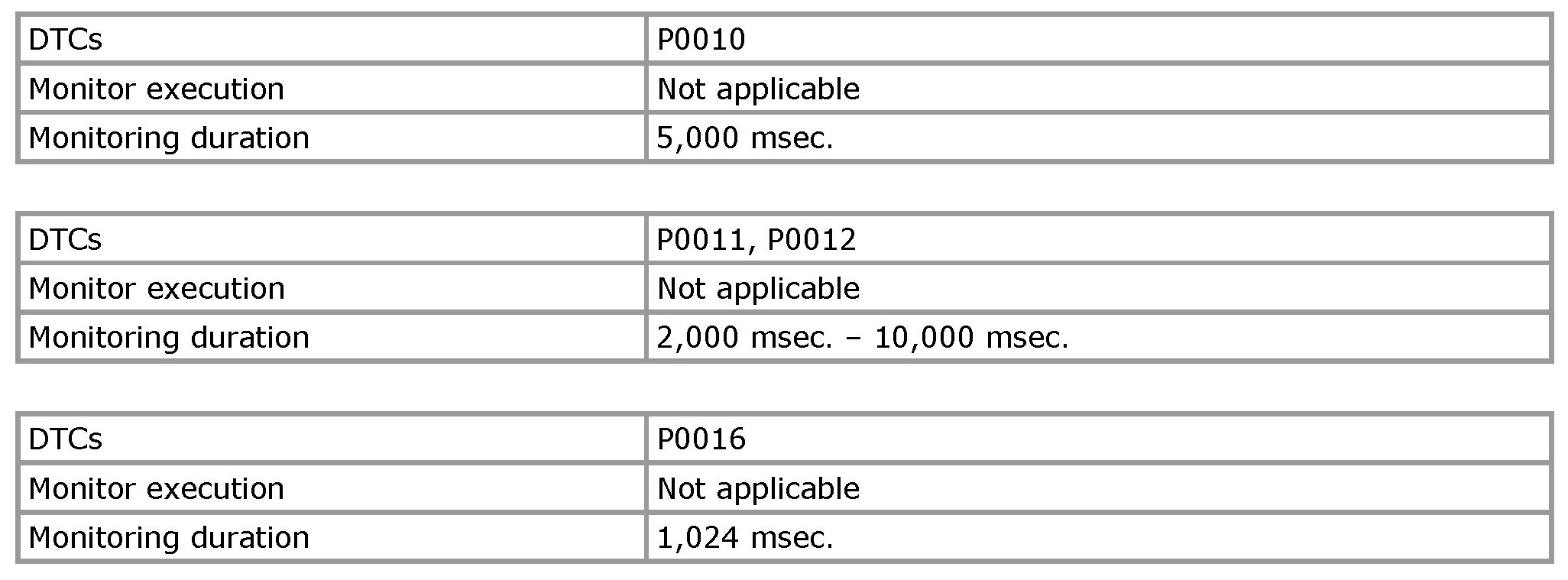

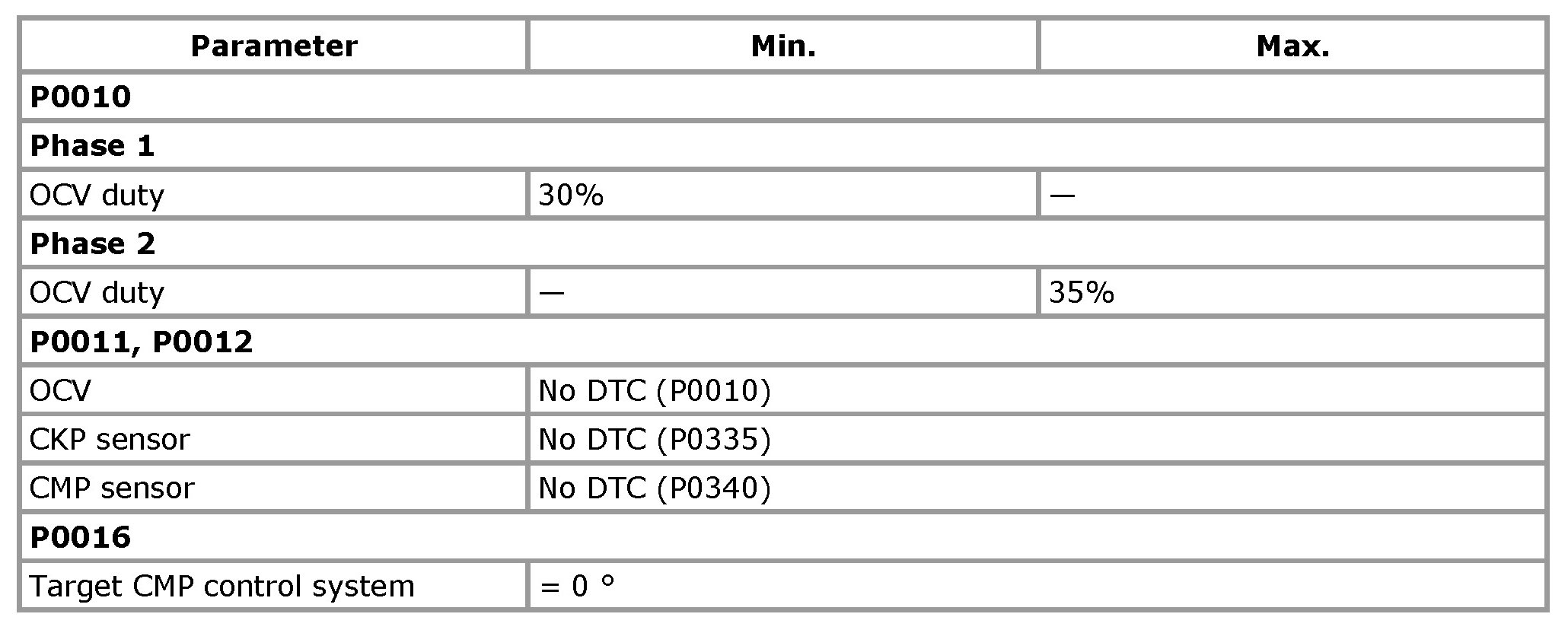

Enable conditions

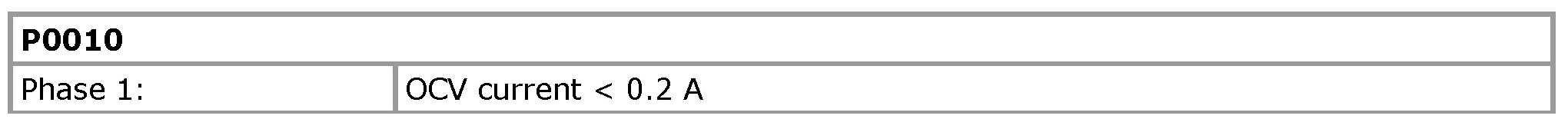

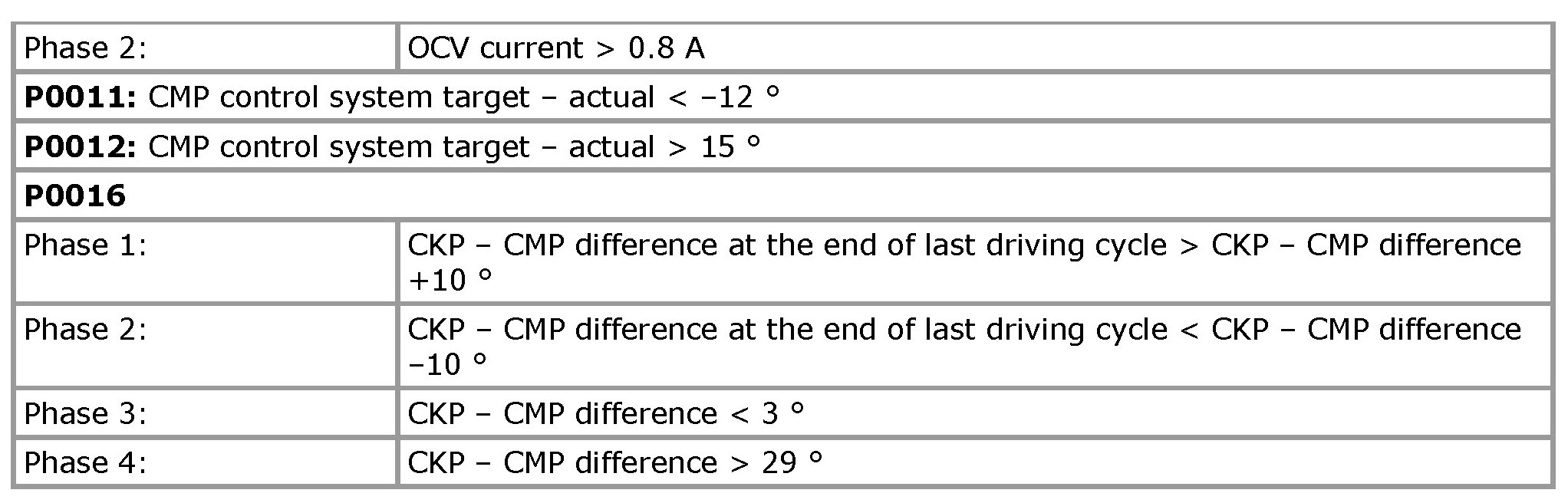

Typical malfunction thresholds








Mode $06 Data
