Floor Harness
Floor Harness
Center

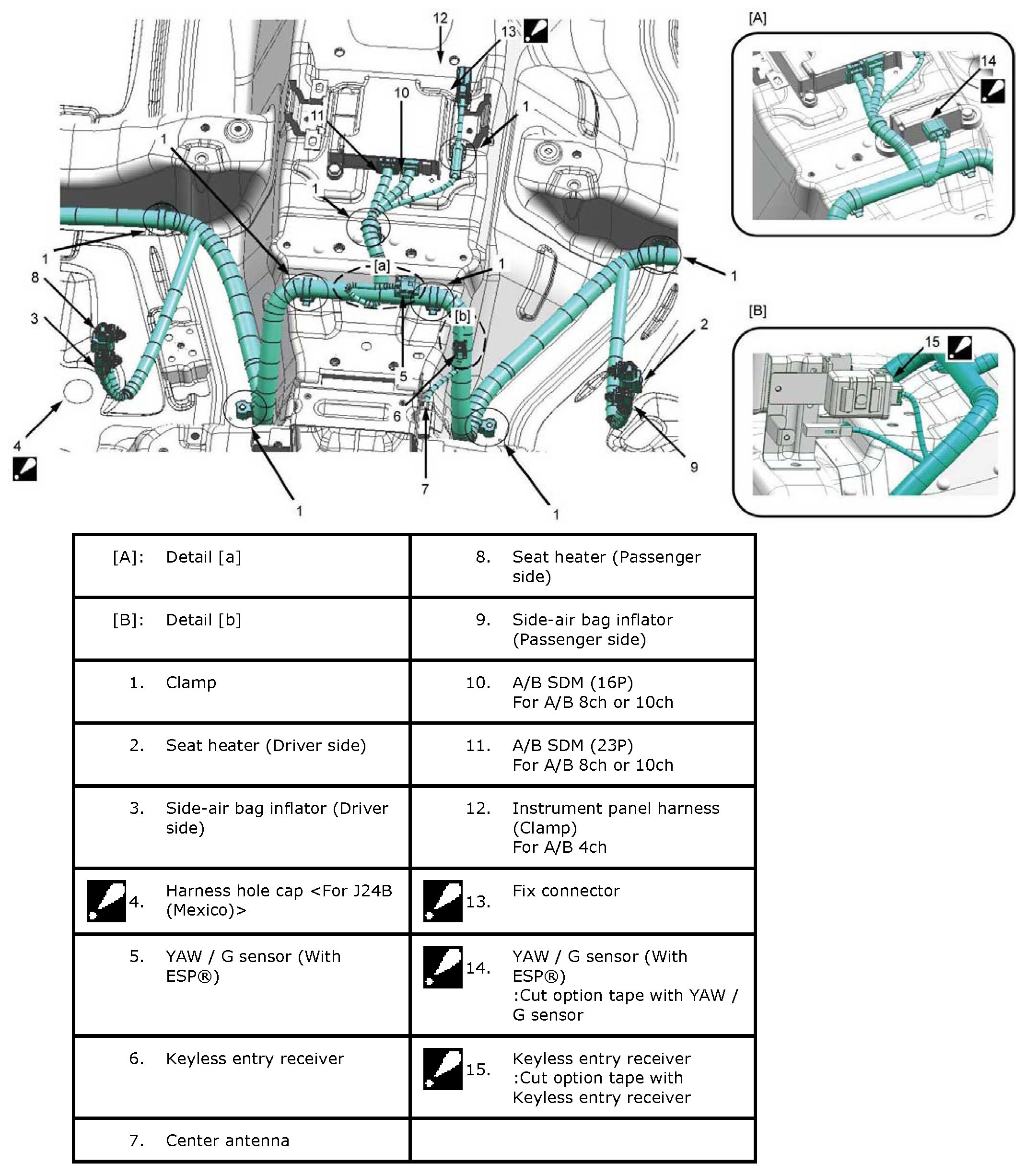

Floor Harness - Center:
Right side

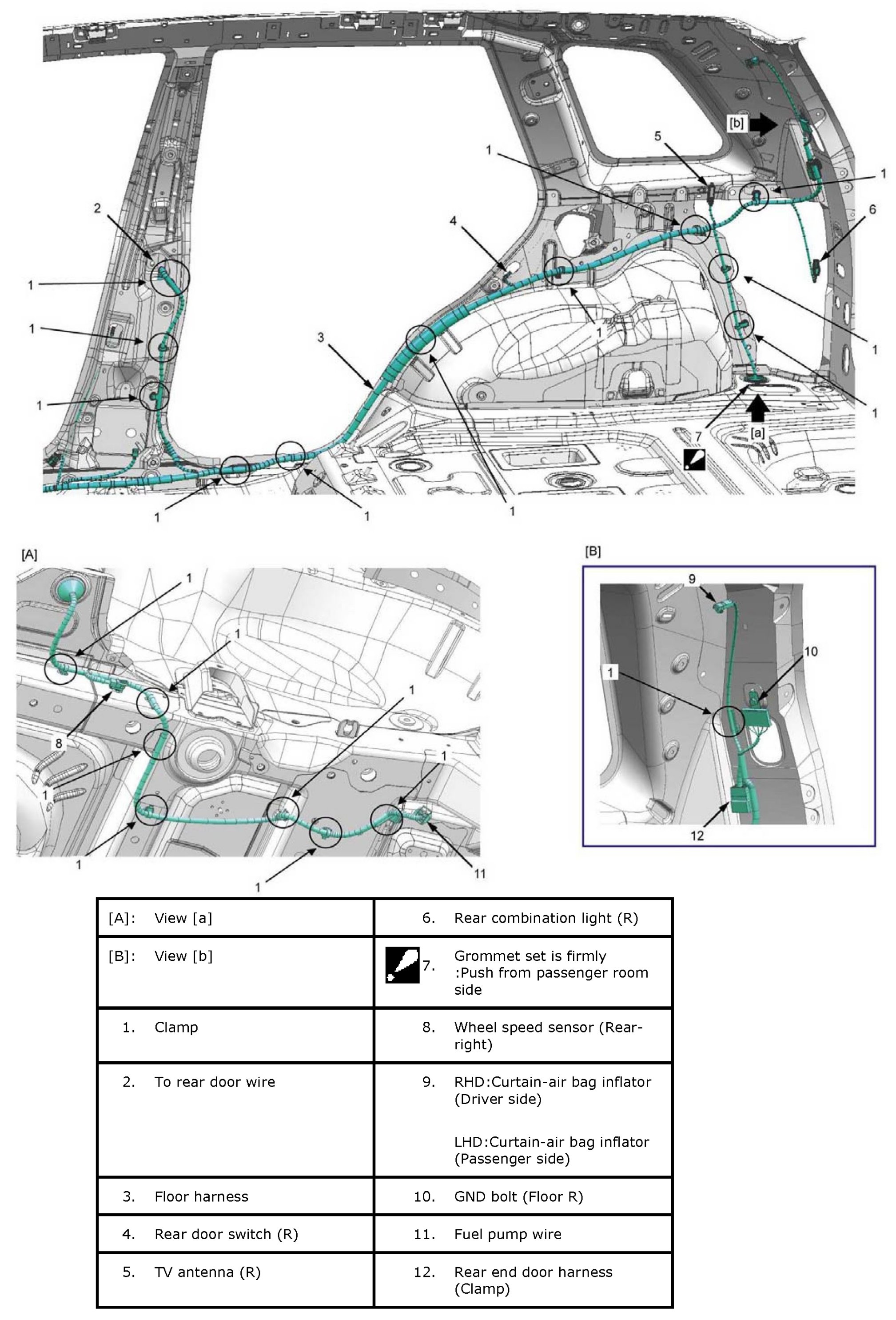

Floor Harness - Right Side:
Left side

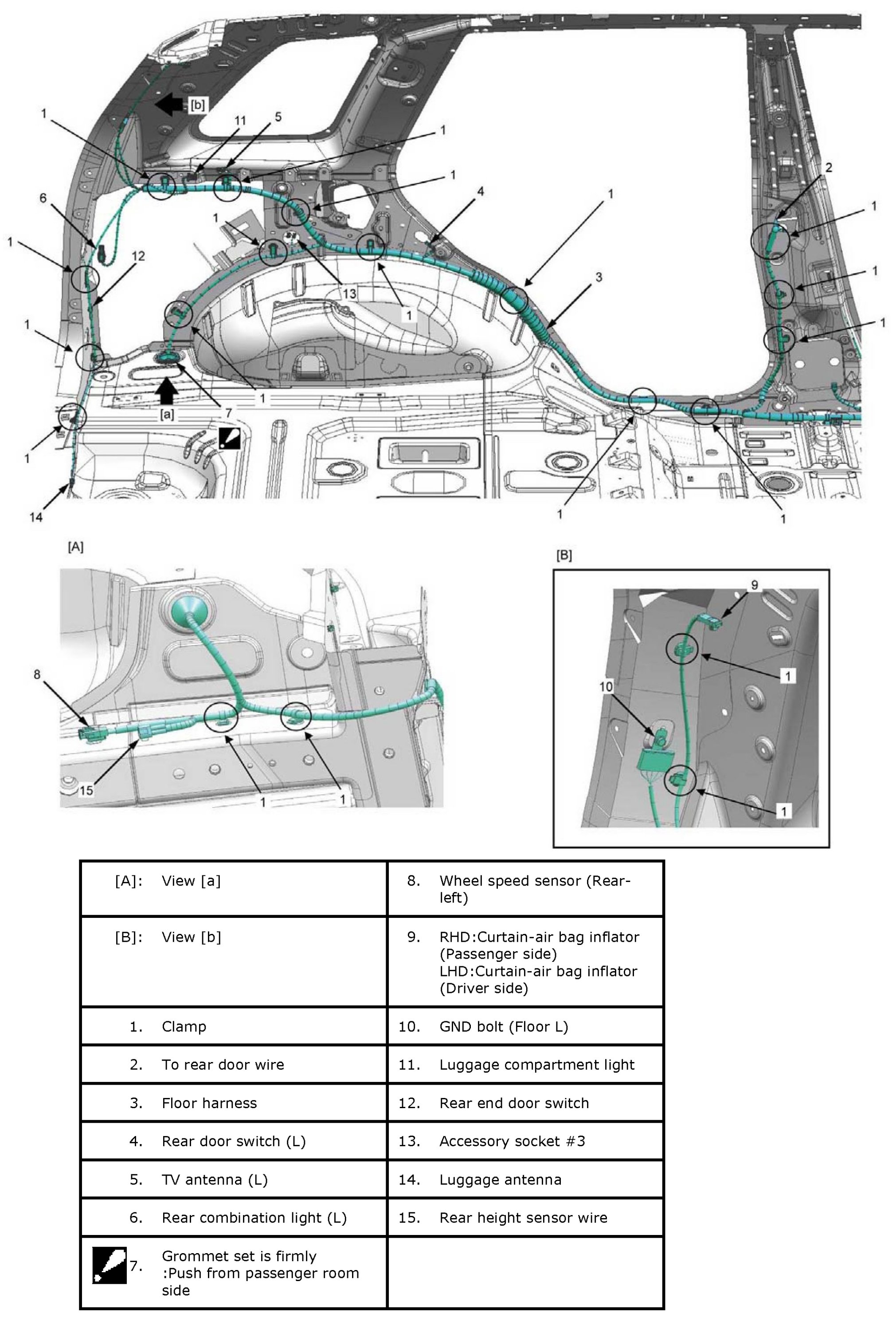

Floor Harness - Left Side:
Back

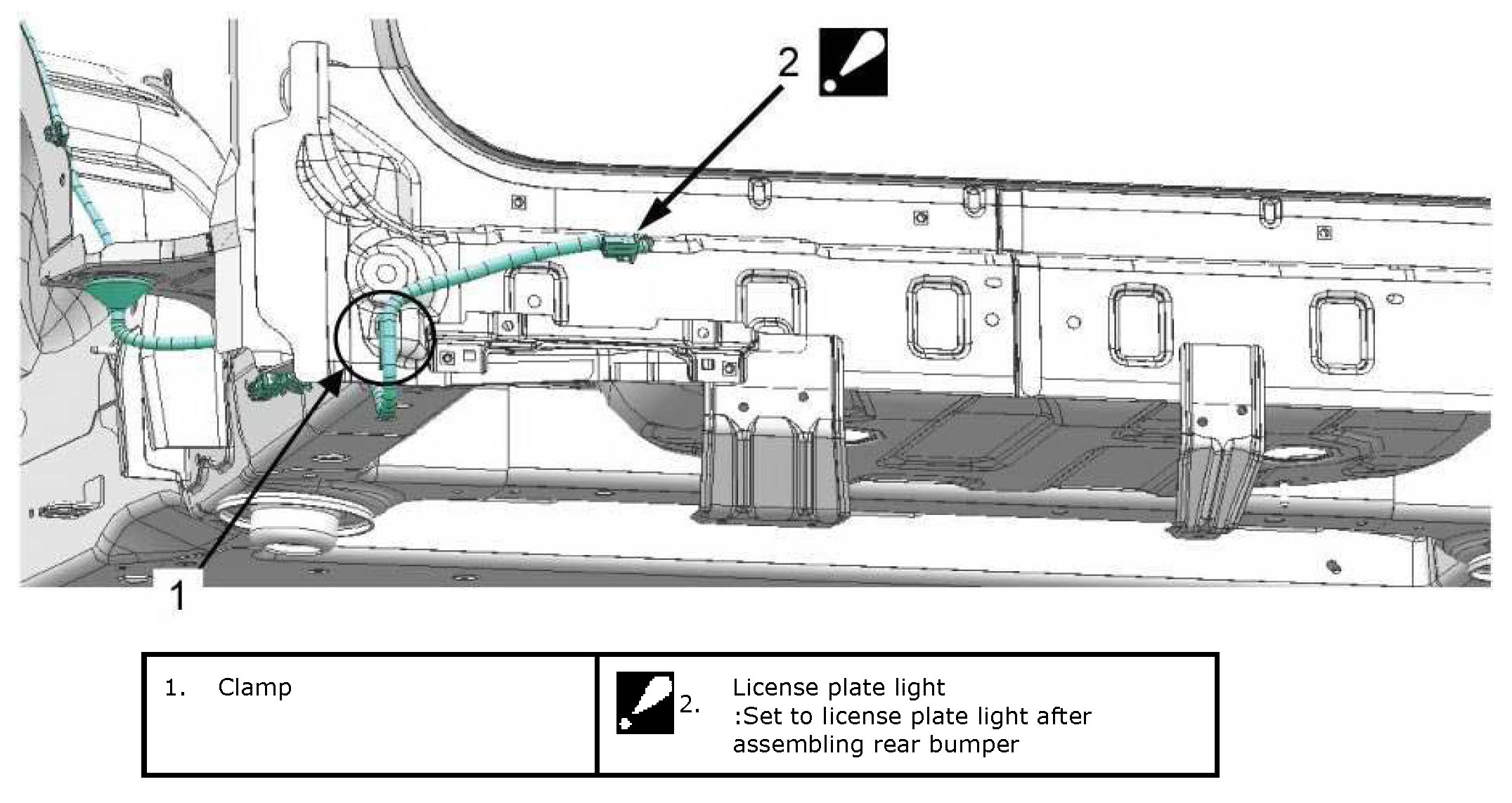

Floor Harness - Back:
