Fuse Box No.3 (In J/B)

Fuse Box No.3 (In J/B)

Fuse Box No.3 (In J/B):

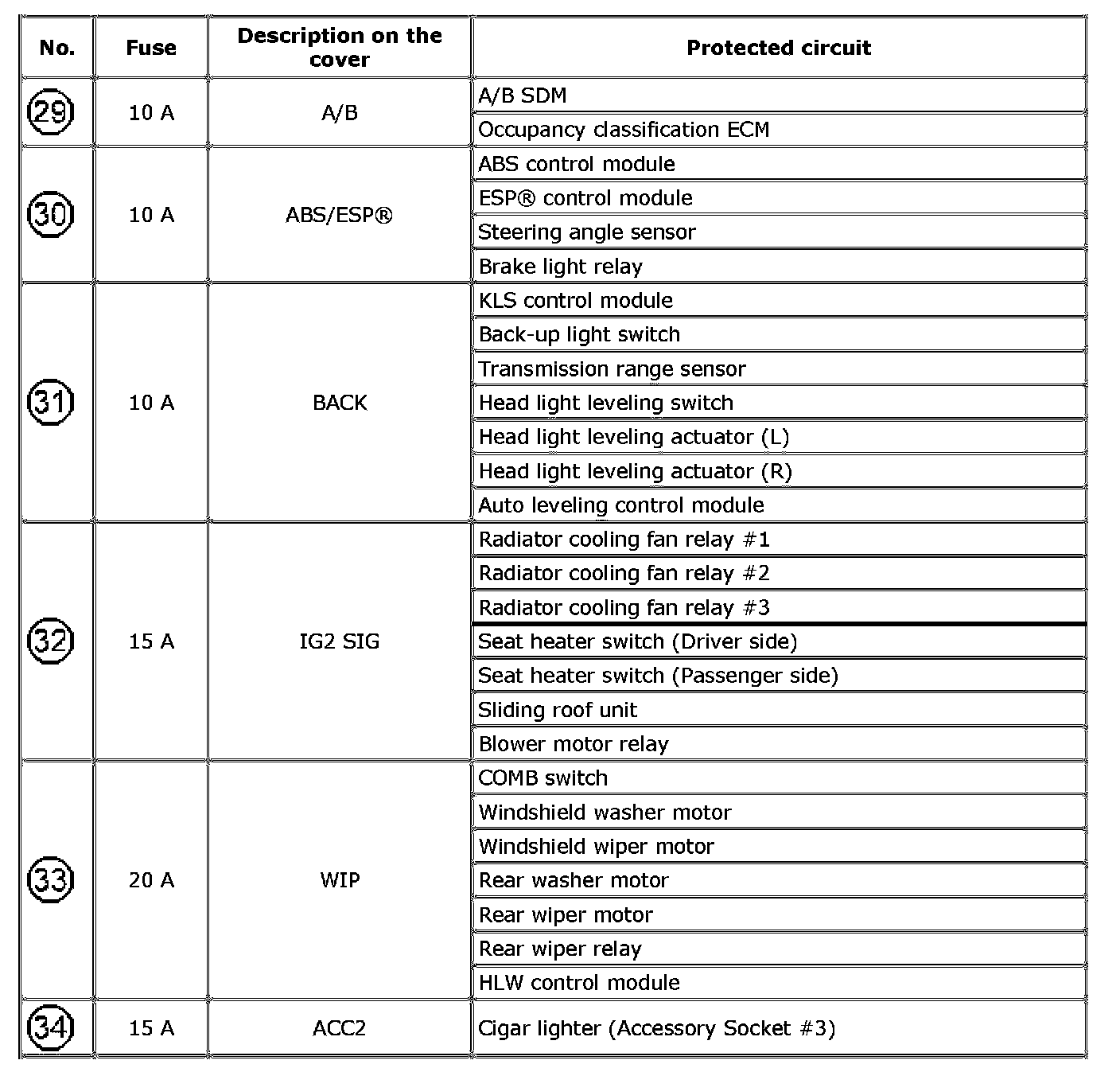

Fuse Box No.3 (In J/B) Application Table Fuse 29-Fuse 34:

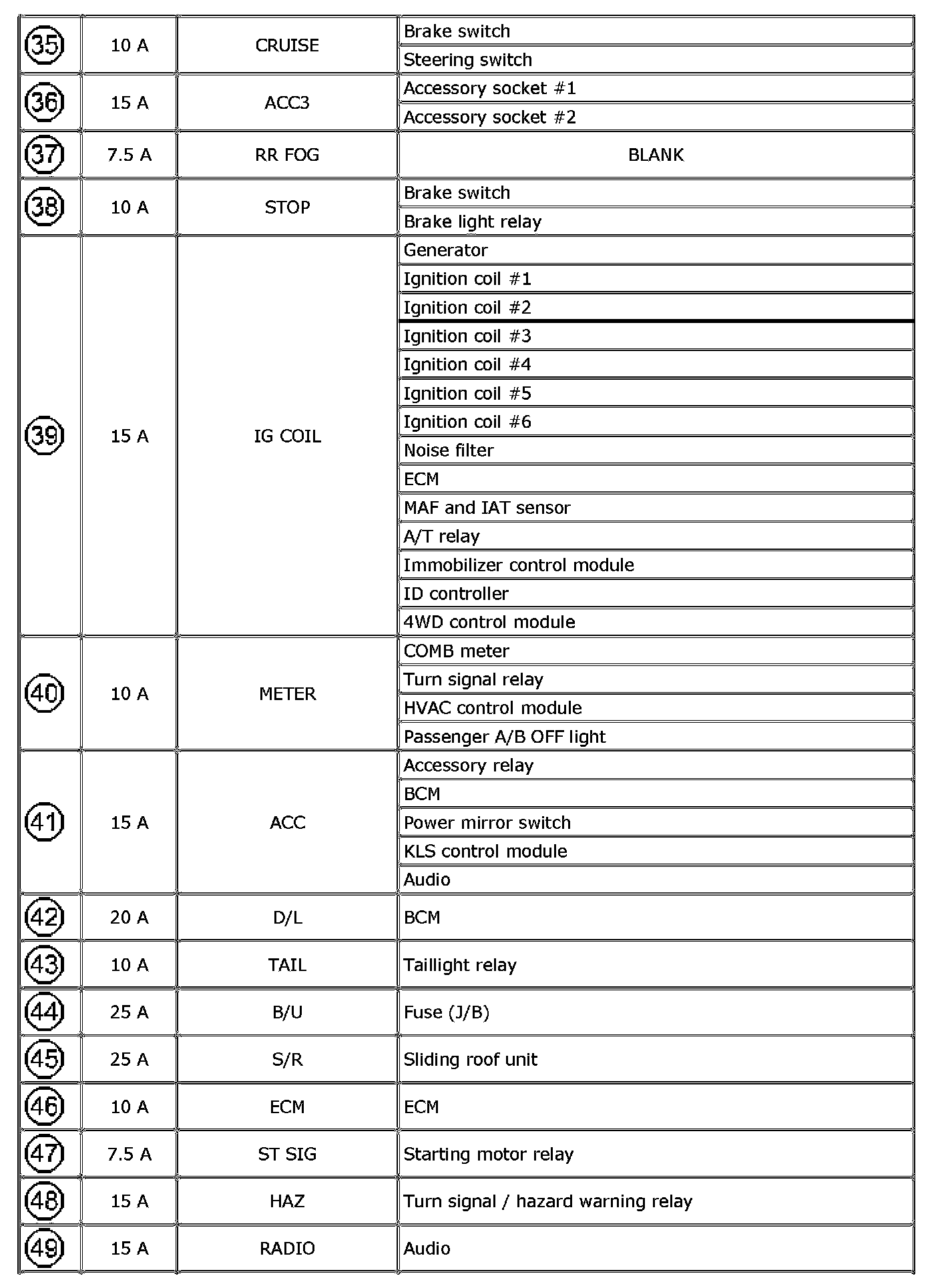

Fuse Box No.3 (In J/B) Application Table Fuse 35-Fuse 49:




Fuse Box No.3 (In J/B) Application Table Fuse 50-Fuse 59:
