Around Engine

Around Engine

J24B (Engine Harness)

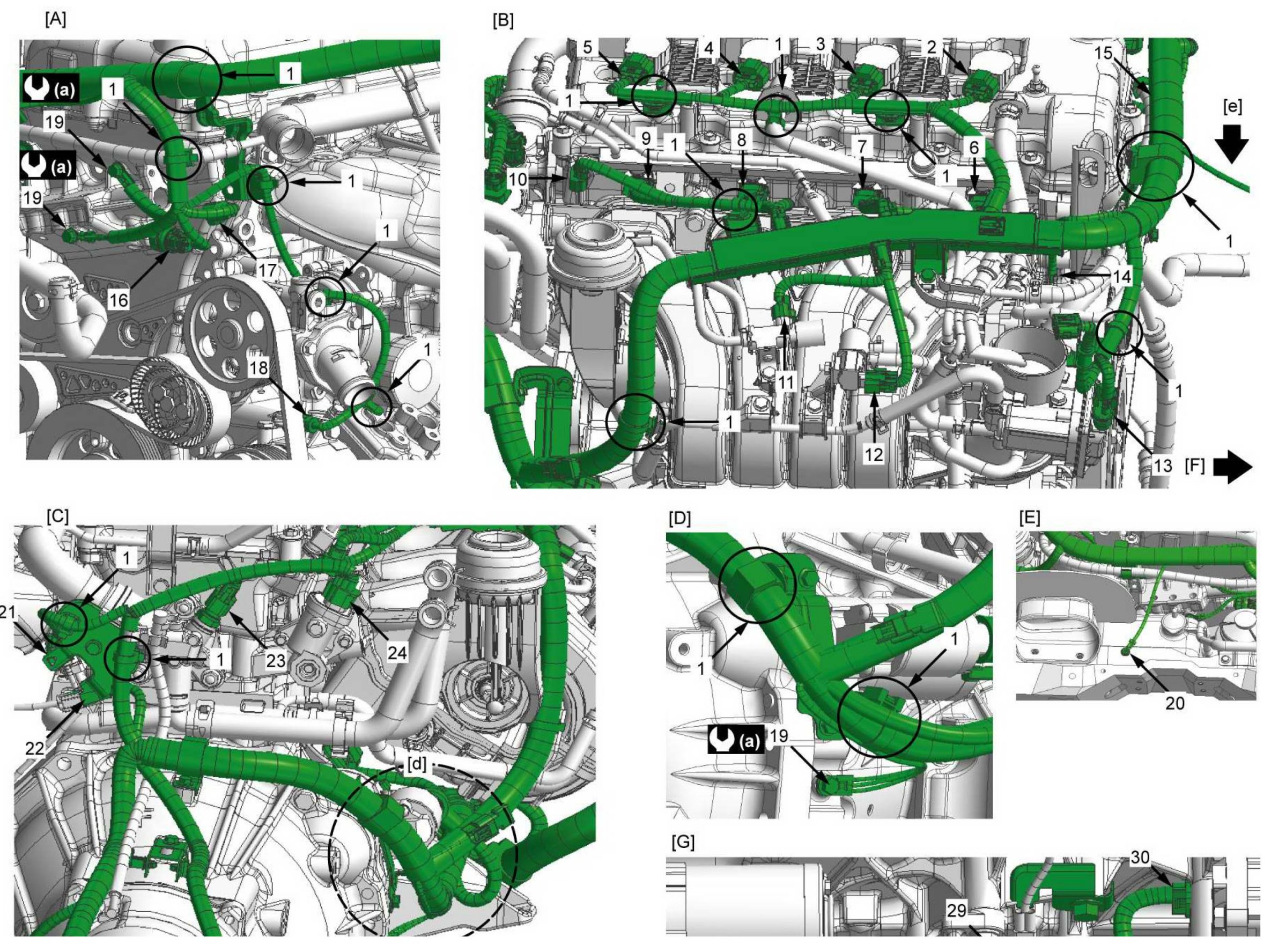

Around Engine (Engine Harness) (Part 1):




Around Engine (Engine Harness) (Part 2):
