L Connectors
FloorL: Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor (L) Wire, Rear Height Sensor Wire / R: Fuel Pump Wire / Q: Side-air Bag Harness View

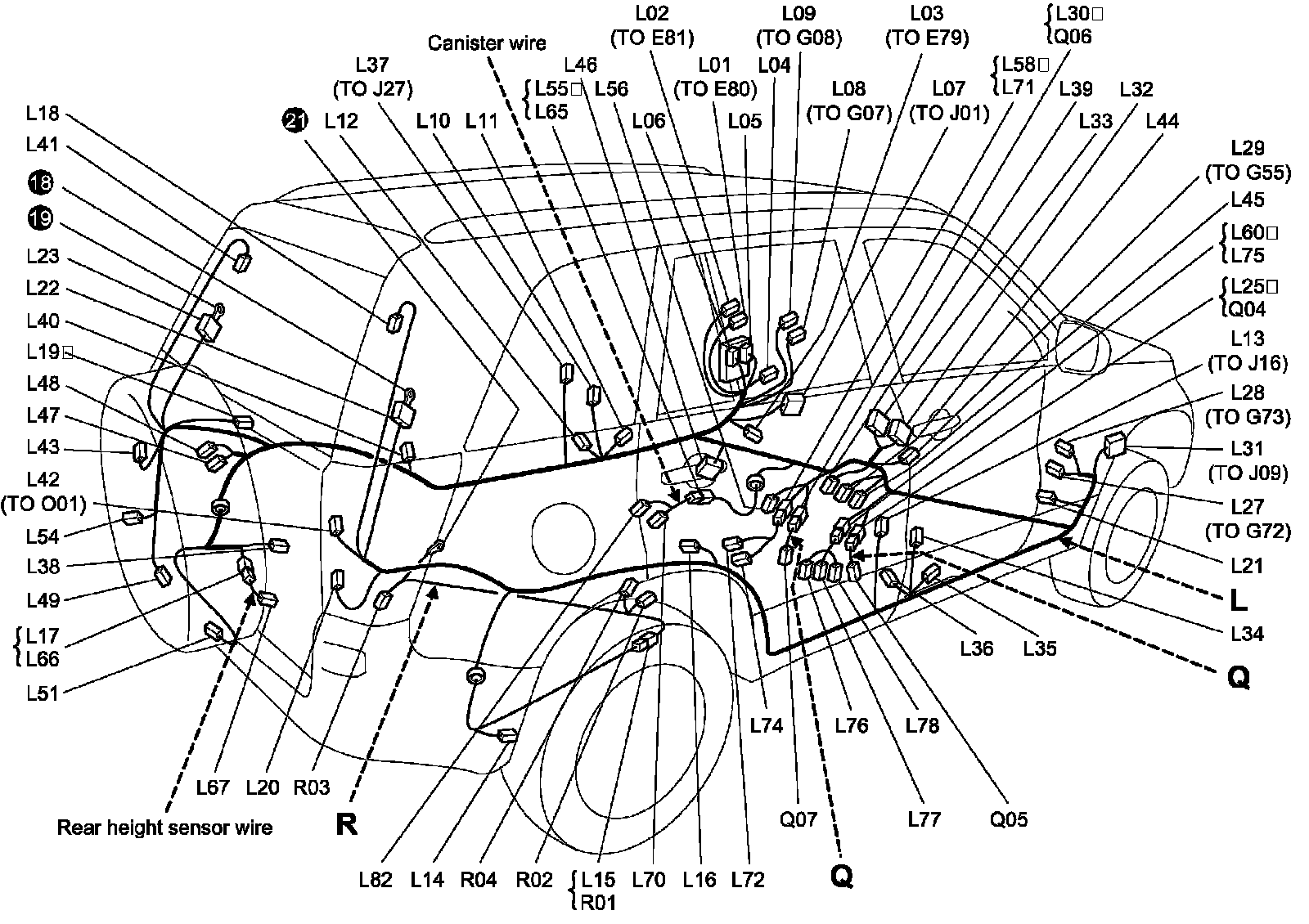

L: Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor (L) Wire, Rear Height Sensor Wire / R: Fuel Pump Wire / Q: Side-air Bag Harness View:
L: Floor Harness Index

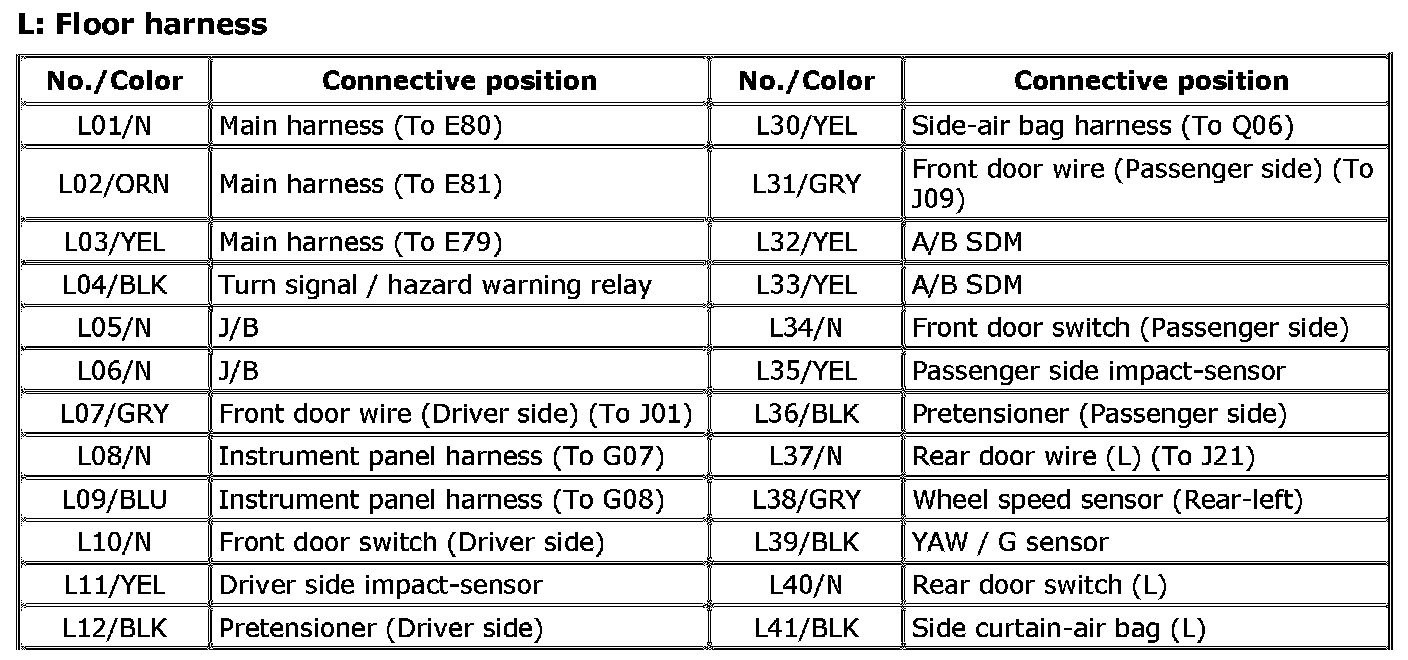

L: Floor Harness Index (Part 1):

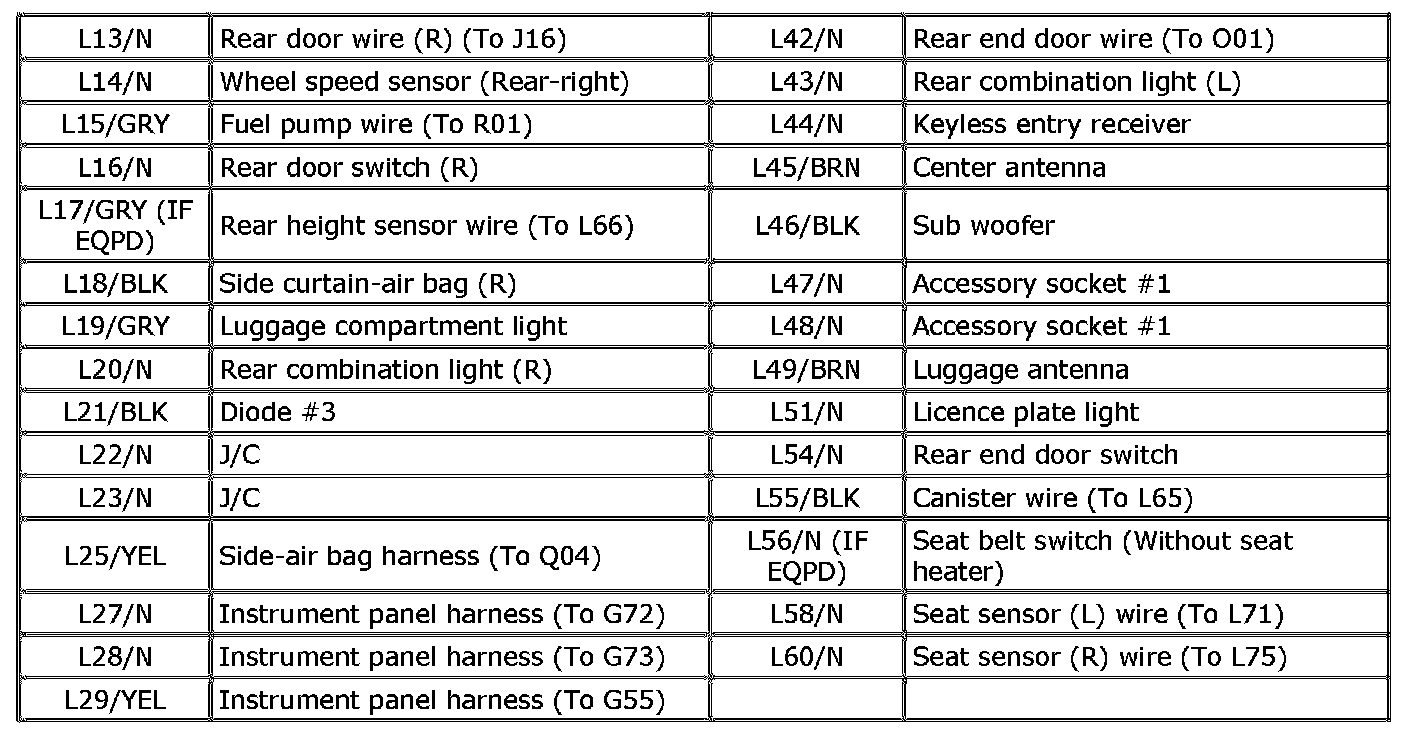

L: Floor Harness Index (Part 2):
L: Canister Wire Index
L: Canister Wire Index:
L: Seat Sensor (L) Wire Index
L: Seat Sensor (L) Wire Index:
L: Seat Sensor (R) Wire Index
L: Seat Sensor (R) Wire Index:
L: Rear Height Sensor Wire Index
L: Rear Height Sensor Wire Index:
