E Connectors

Engine Compartment

E: Main Harness, Front Height Sensor Wire View

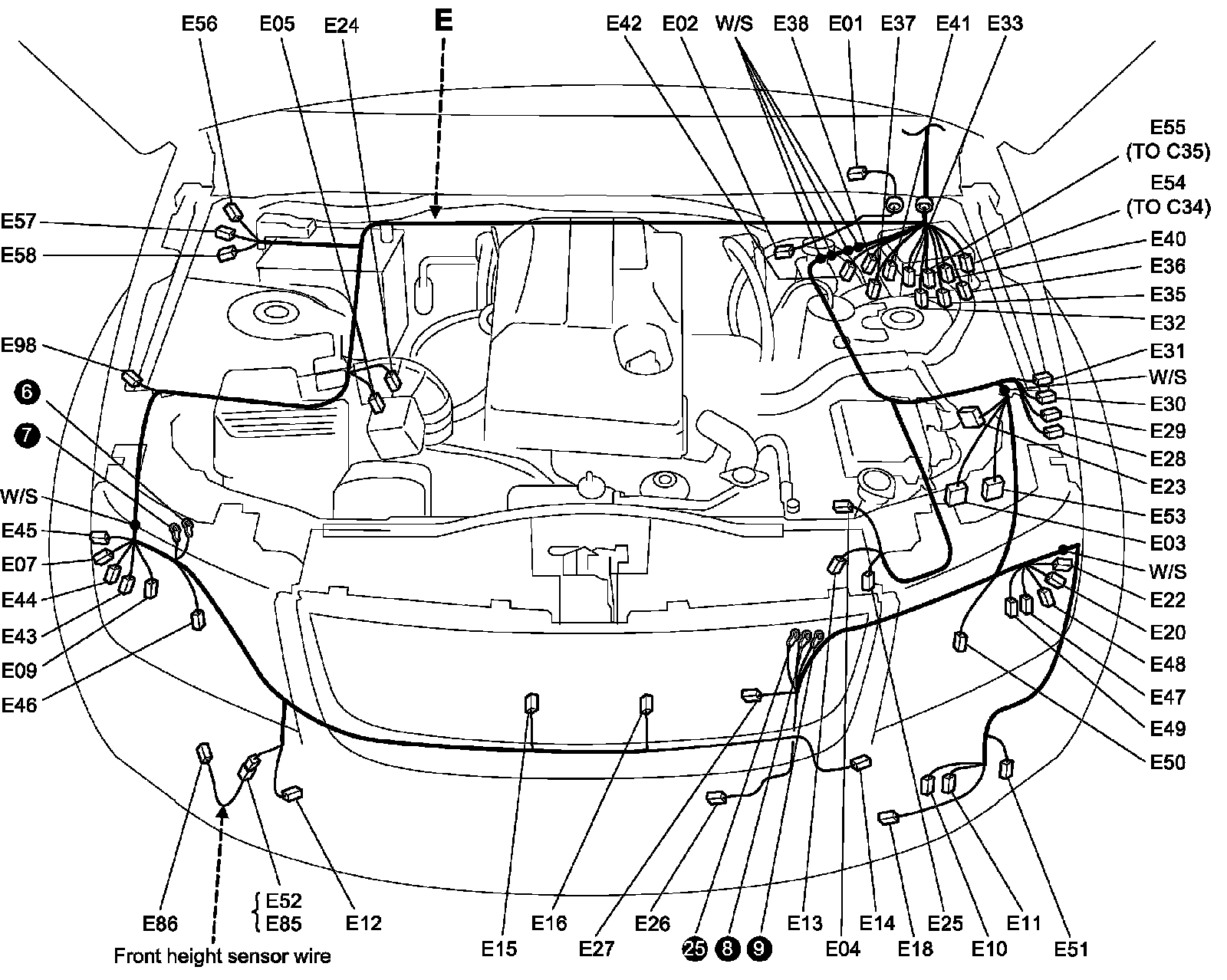

E: Main Harness, Front Height Sensor Wire View:

E: Main Harness Index

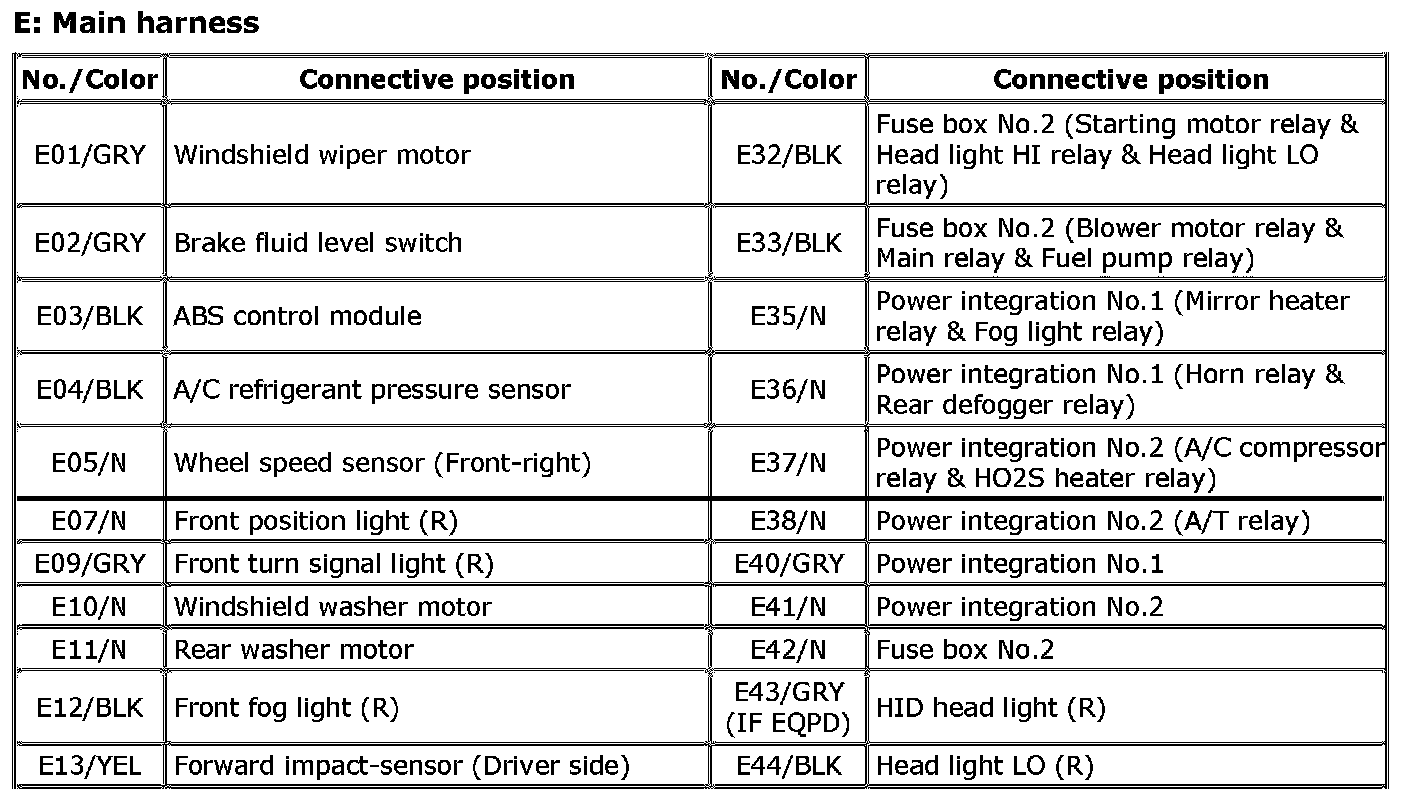

E: Main Harness Index (Part 1):

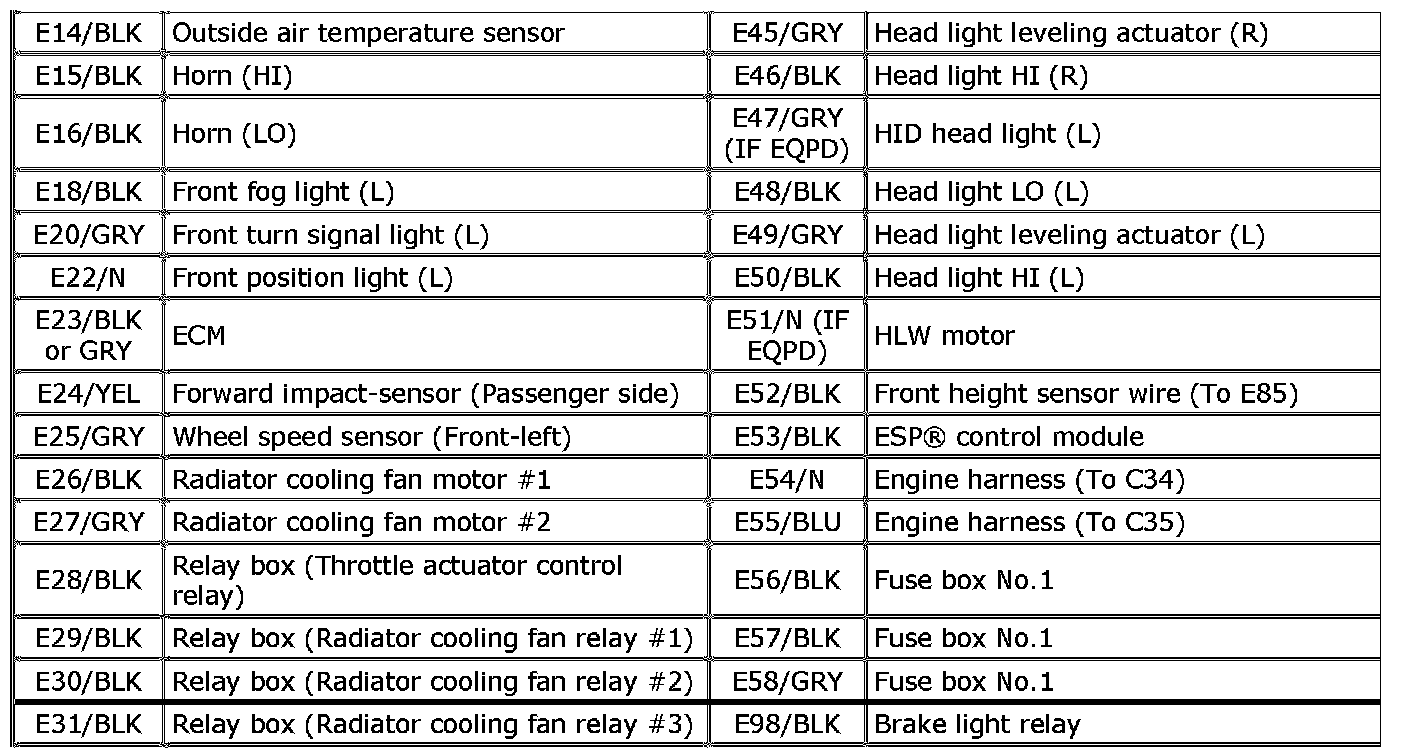

E: Main Harness Index (Part 2):

E: Front Height Sensor Wire Index

E: Front Height Sensor Wire Index:

Instrument Panel

E: Main Harness, Controller Wire View

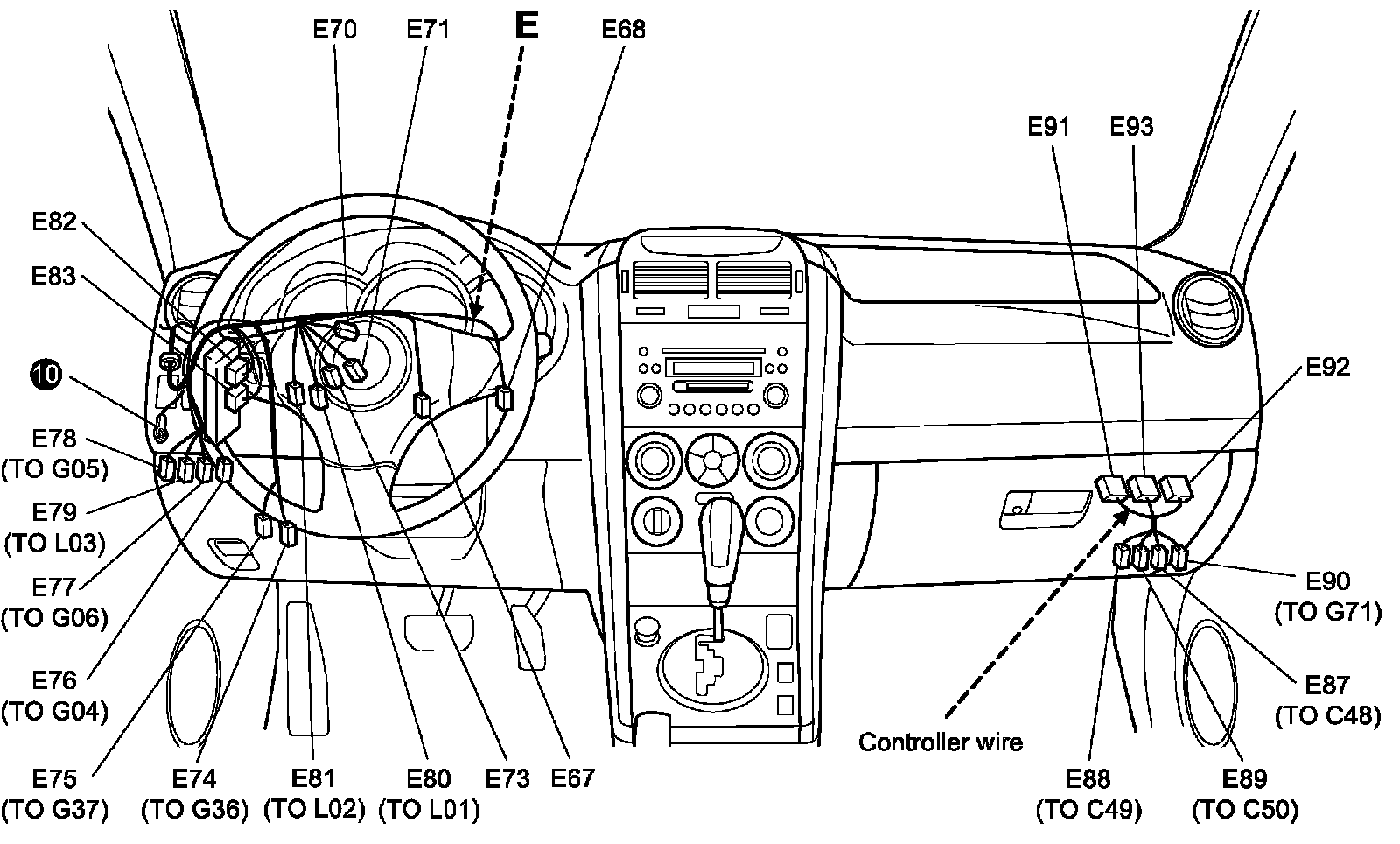

E: Main Harness, Controller Wire View:

E: Main Harness Index

E: Main Harness Index:

E: Controller Wire Index

E: Controller Wire Index:
