Headlight Switch (In Lighting Switch) Removal and Installation
Headlight Switch (In Lighting Switch) Removal And InstallationRemoval
1. Disconnect negative cable at battery.

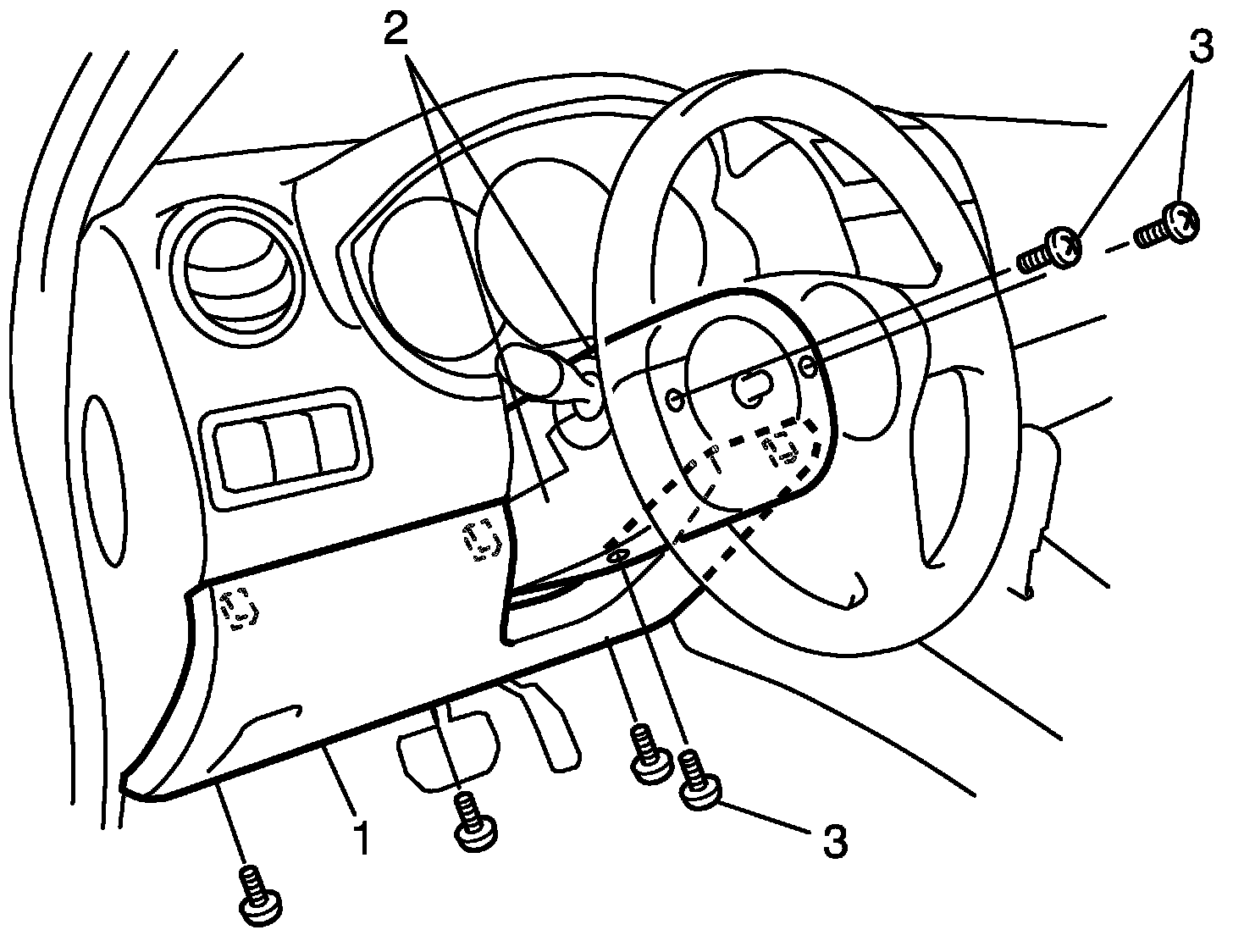

2. Remove steering column hole cover (1).
3. Remove steering column covers (2).
Turn steering wheel to access steering column cover screws (3).
4. Remove lighting switch (1) from combination switch assembly (2) and disconnect its coupler (3).
Installation
Reverse removal procedure for installation.
