Headlight Switch (In Lighting Switch) Inspection

Headlight Switch (In Lighting Switch) Inspection

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

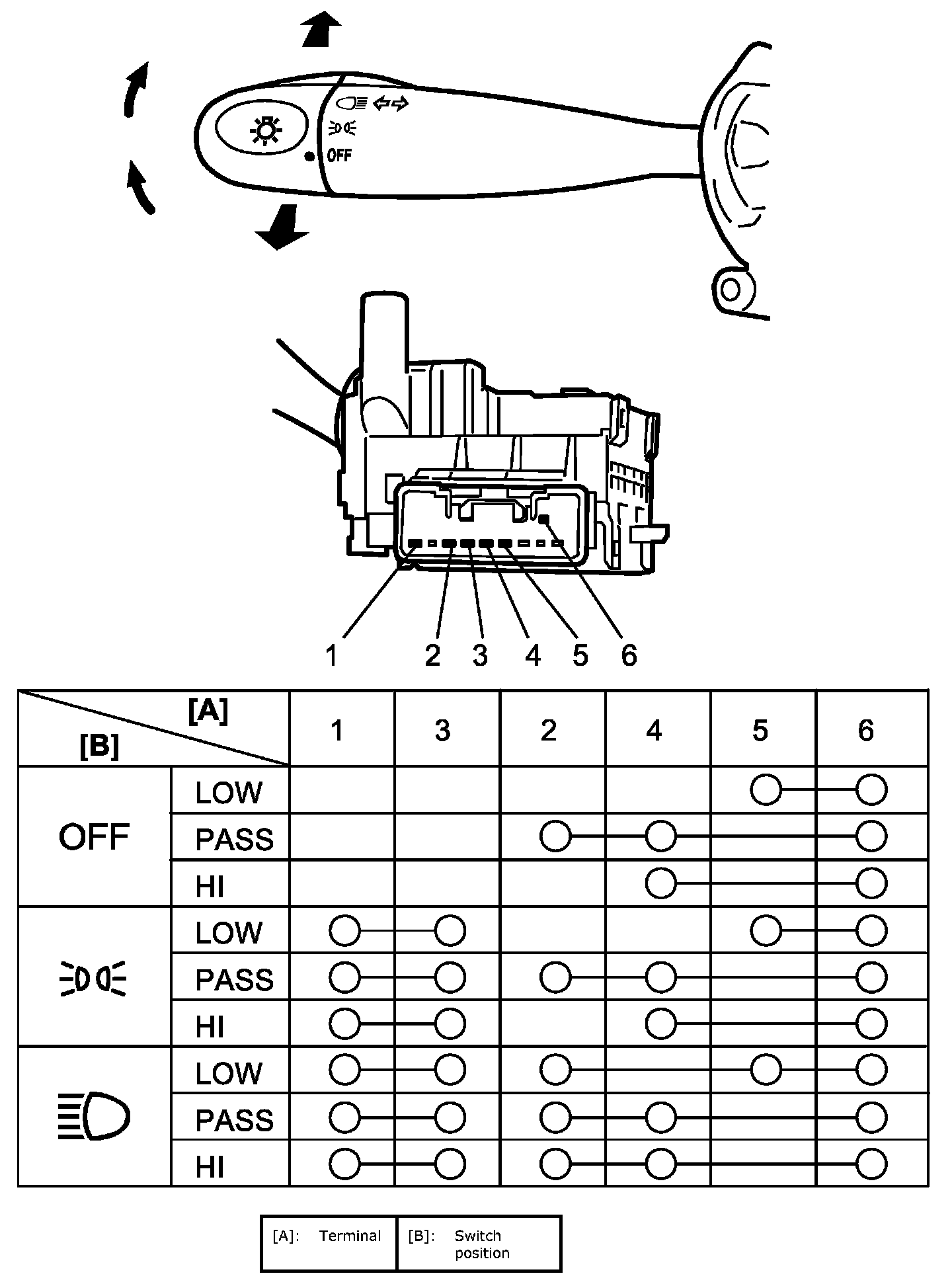

Without auto-on headlight switch

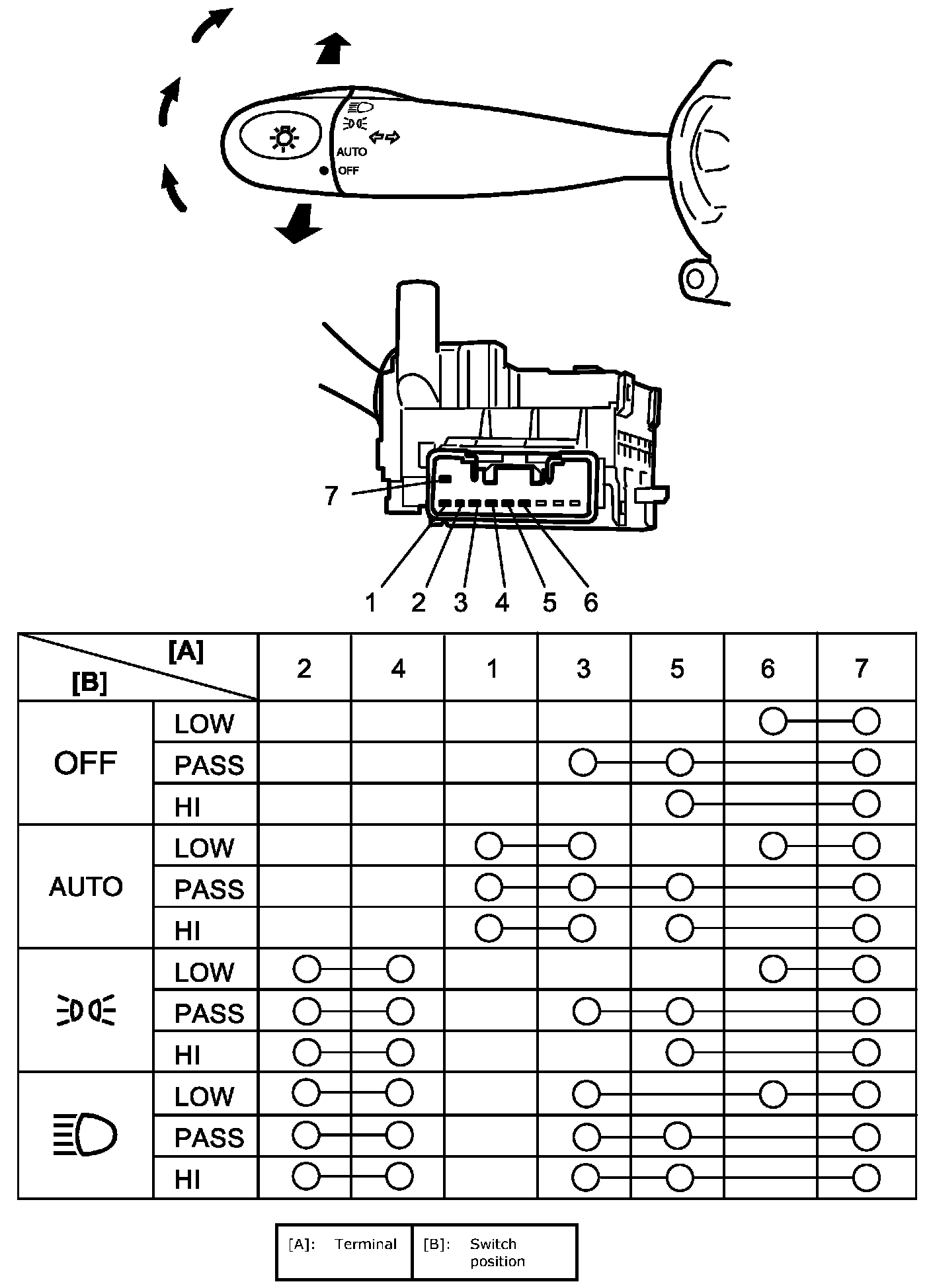

With auto-on headlight switch
