License Plate Lamp: Service and Repair

License Light Removal And Installation

Removal

1. Disconnect negative (-) cable at battery.

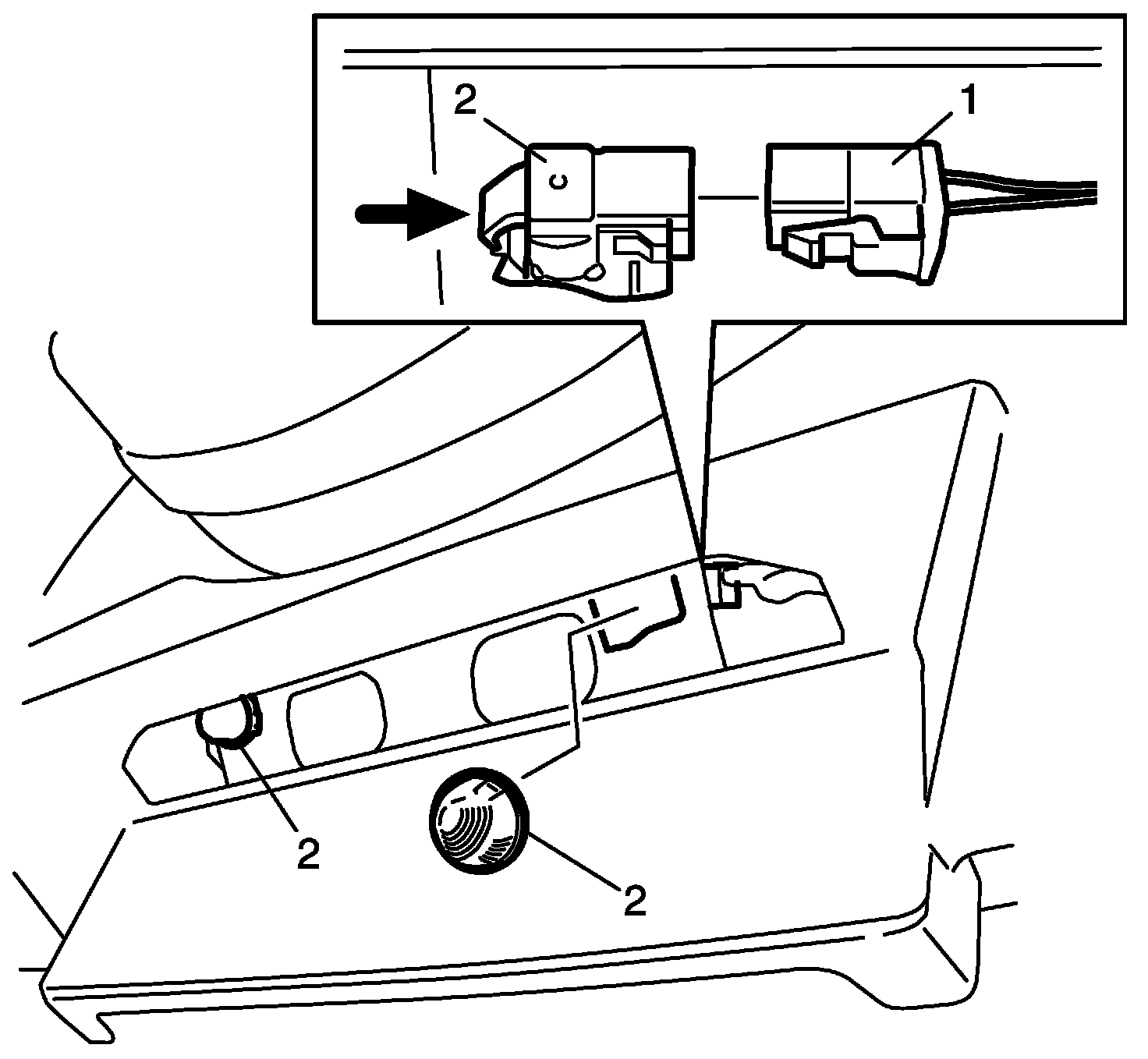

2. Disconnect coupler (1) from license light (2).
3. Push locking part to arrow direction, and then remove license light (2).







Installation

Reverse removal procedure for installation.
