Horn: Testing and Inspection

Horn Inspection

1. Disconnect negative (-) cable at battery.
2. Remove front bumper referring to Front Bumper Components.

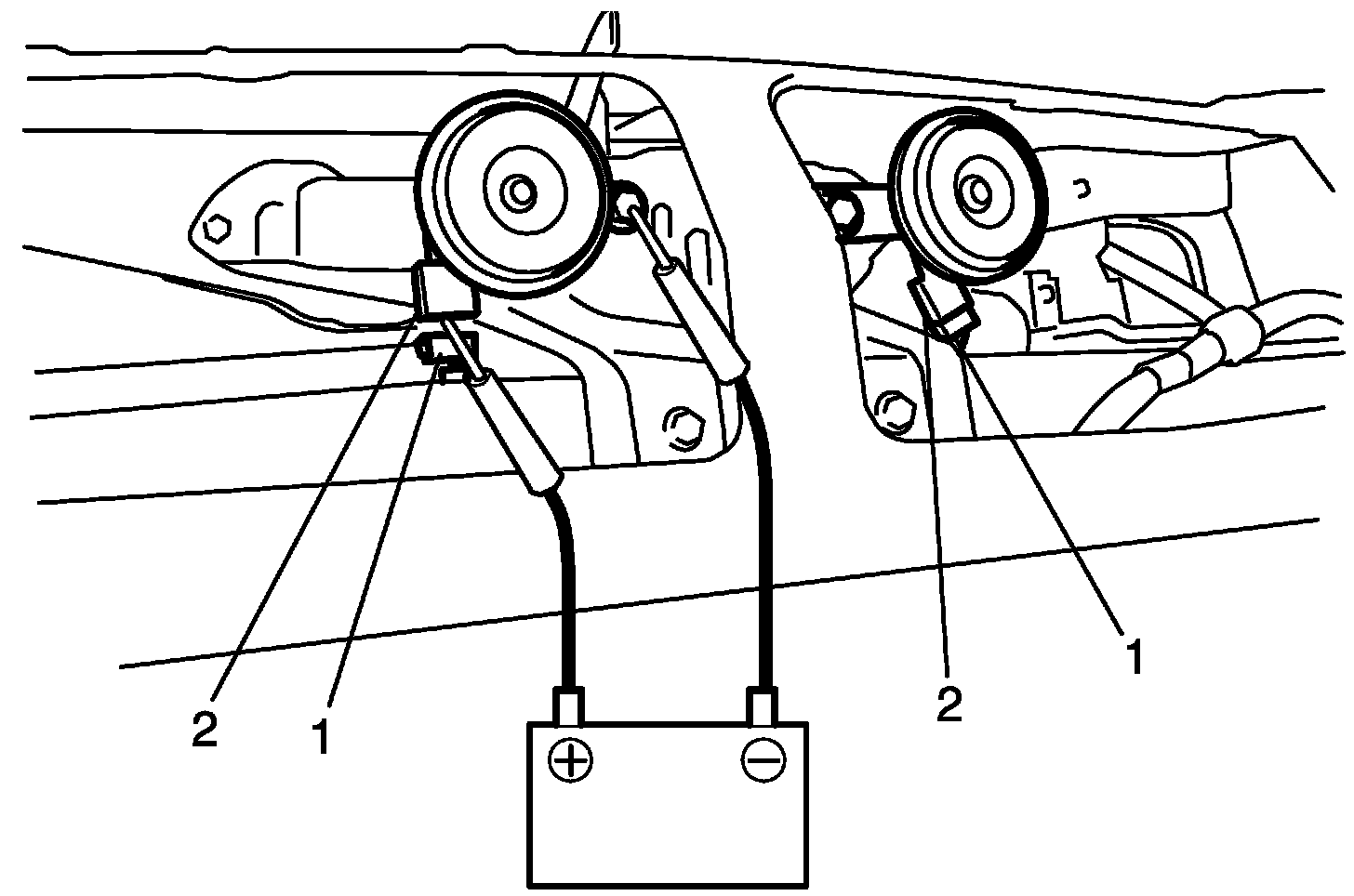

3. Disconnect horn connector (1).
4. Connect battery positive (+) to terminal of horn connector (2) and negative (-) terminal to body ground.
If horn is not sounding, replace horn.
