Horn: Service and Repair

Horn Removal And Installation

Removal

1. Disconnect negative (-) cable at battery.
2. Remove front bumper referring to Front Bumper Components.

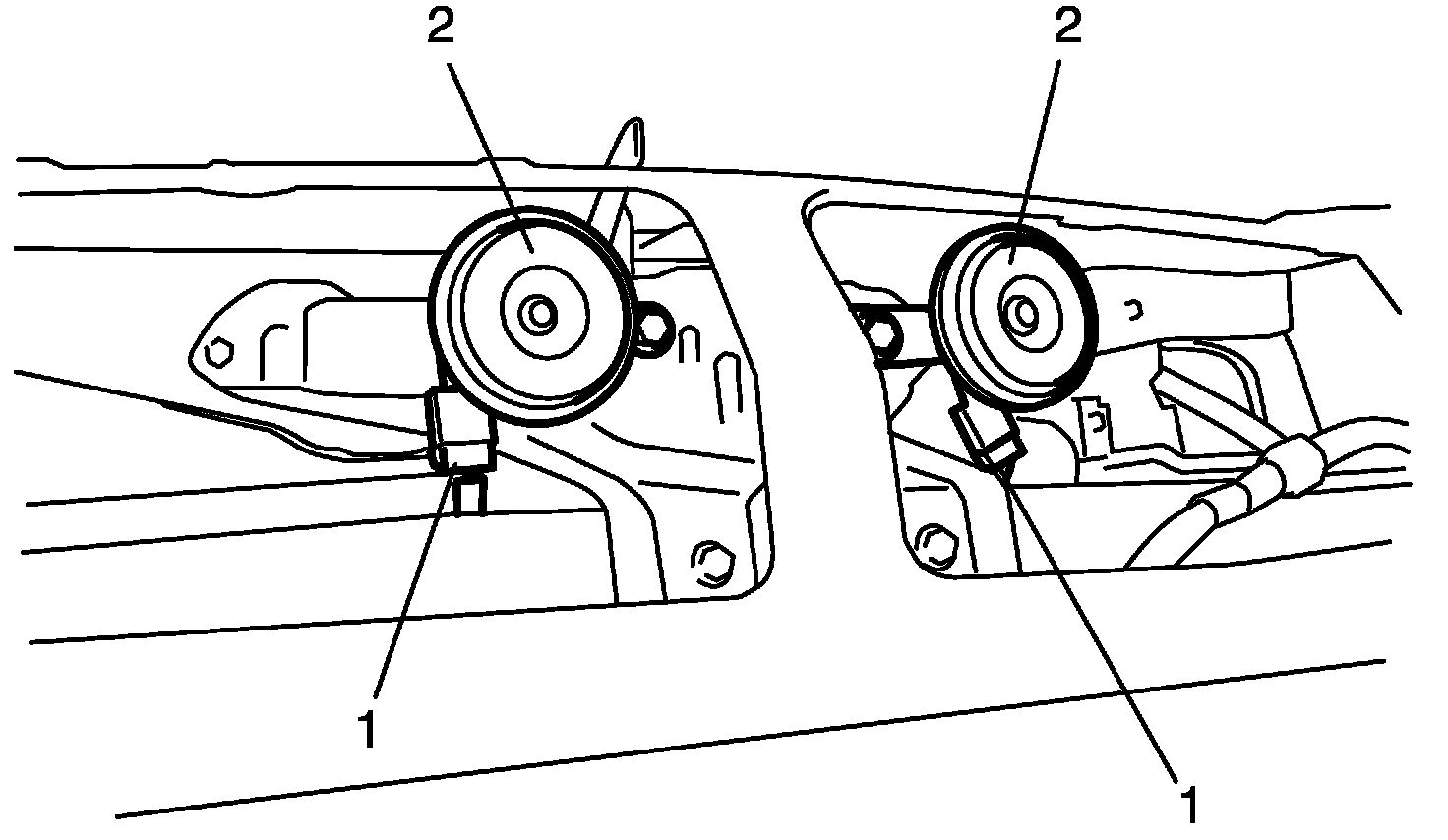

3. Disconnect horn connector (1).
4. Remove horn (2).







Installation

Reverse removal procedure for installation.
