Headlamp: Service and Repair
Headlight Housing Removal And InstallationWARNING:
Be sure to read Precautions for Discharge Headlight Service (If Equipped) before starting to service work.
Neglecting them may result in personal injury.
Removal
1. Disconnect negative (-) cable at battery.
2. Remove front bumper. Refer to Front Bumper Components.

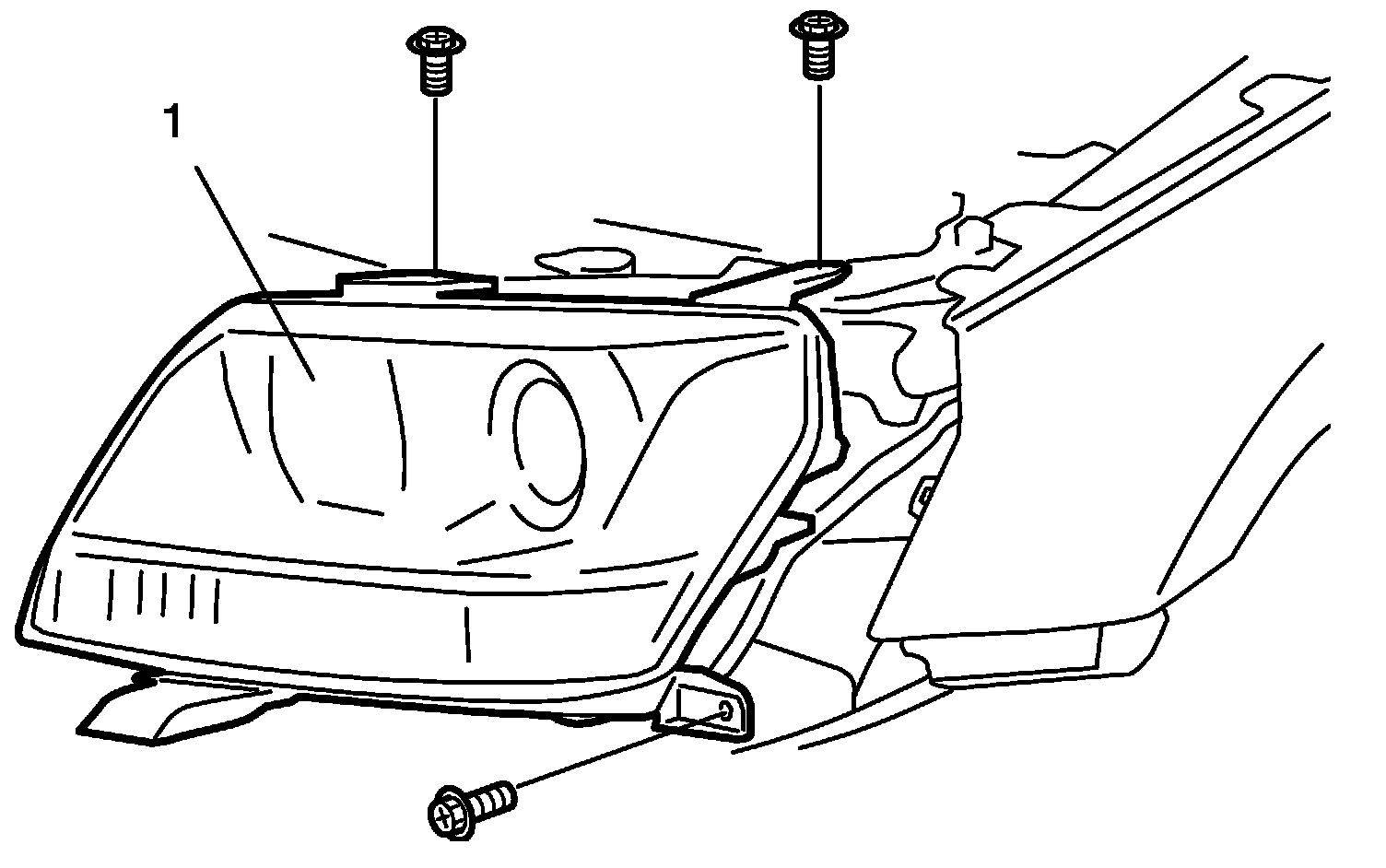

3. Remove headlight mounting bolts.
4. Detach headlight housing (1) from vehicle.
5. Disconnect couplers from headlight housing (1).
Installation
Reverse removal procedure noting the following.
- After installation, be sure to inspect and adjust aiming referring to Headlight Aiming Adjustment with Screen.
