Sub-Cool A/C System Description

Sub-Cool A/C System Description

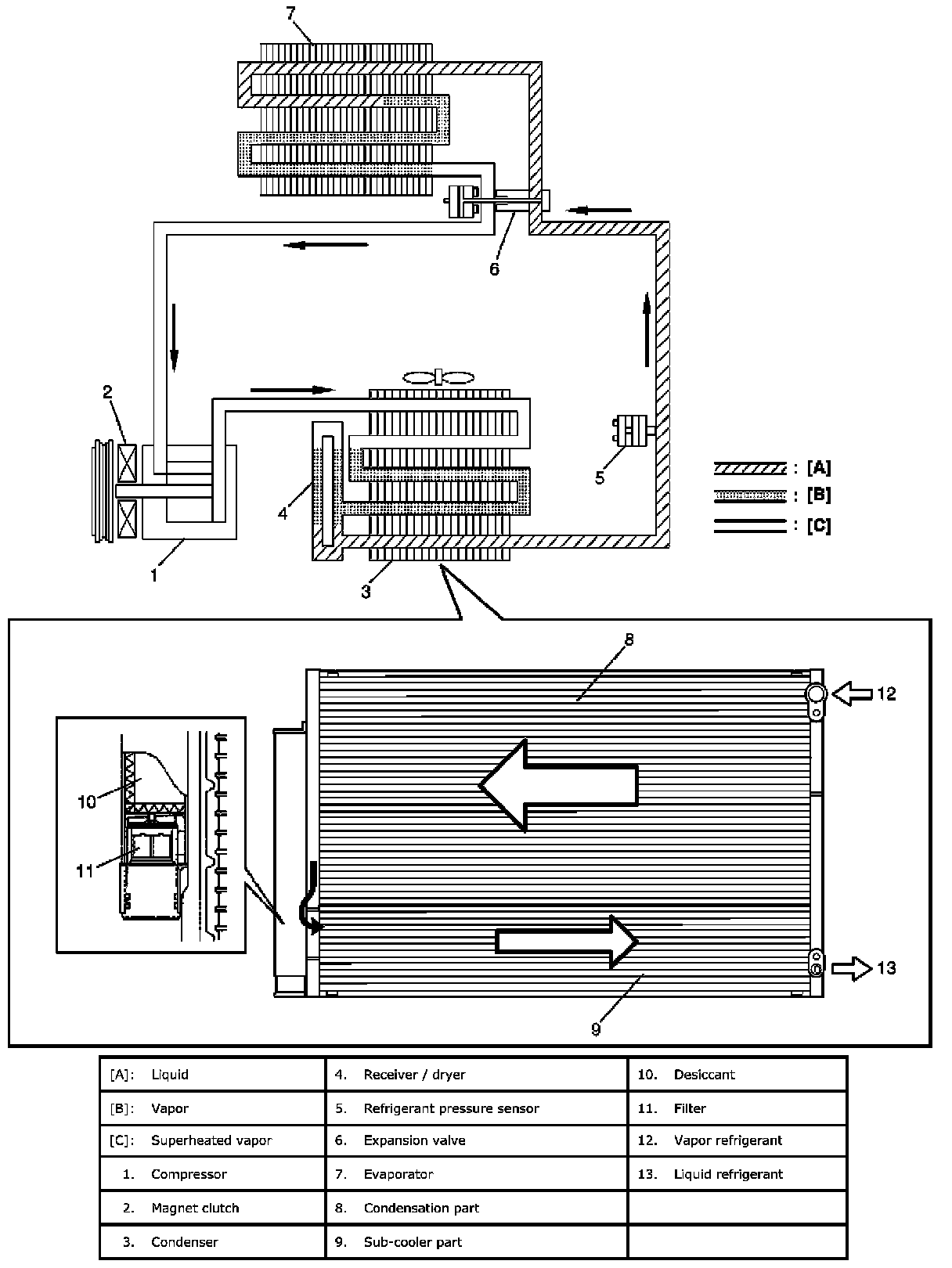

In the sub-cool A/C system (condenser (3) integrated with receiver/dryer (4)), the inside of condenser is divided into the condensation part and the sub-cooler part, and the receiver/dryer is located between those. In the receiver/dryer (4), the refrigerant is separated into the vapor refrigerant and the liquid refrigerant. Only the liquid refrigerant is delivered to the sub-cooler part of the condenser. The refrigerant is supercooled by the sub-cooler part of the condenser.
