Engine: Specifications

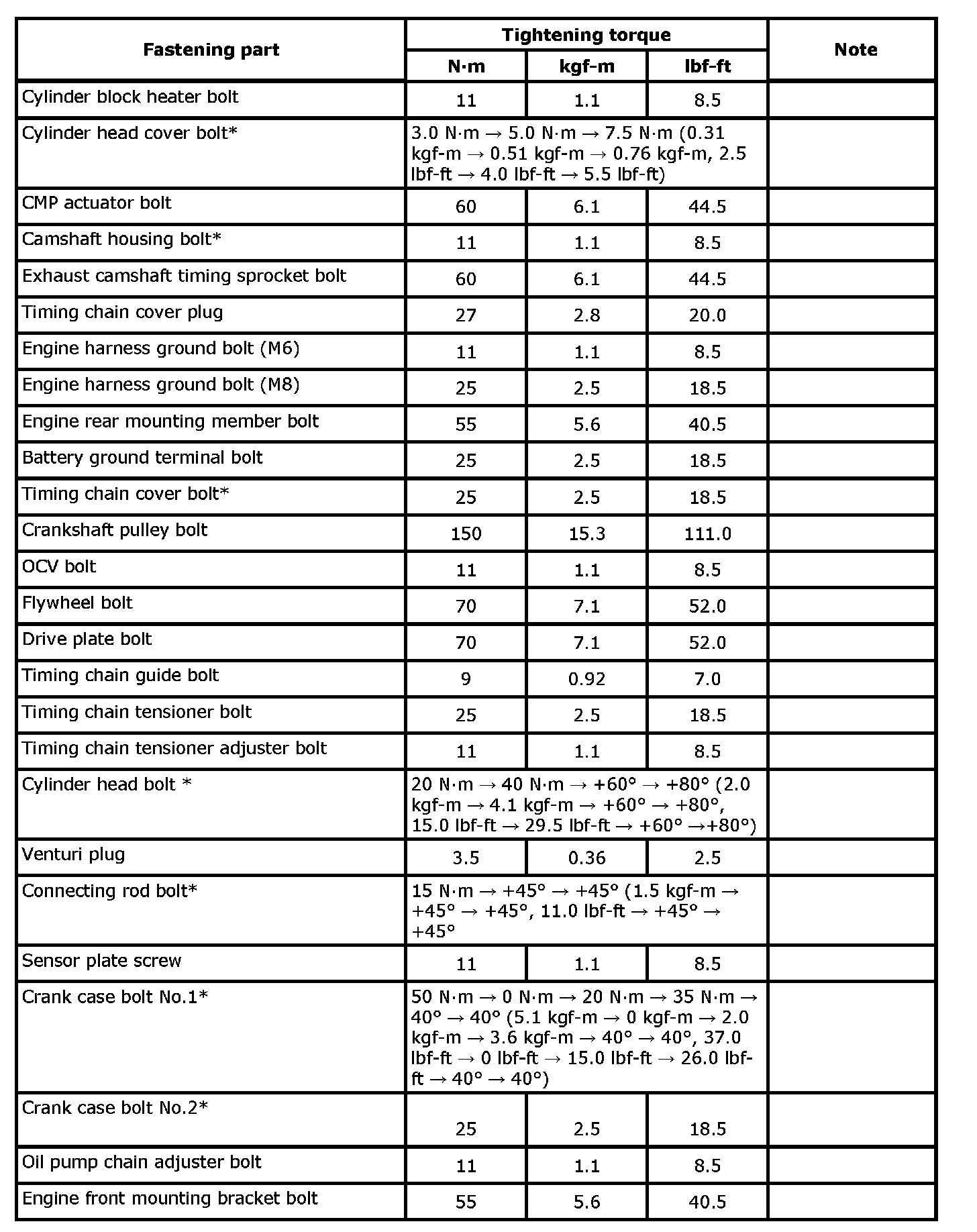

Tightening Torque Specifications

CAUTION:
For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".





If cylinder head bolts are reused, check them for deformation.
