Flywheel/Drive Plate Inspection

Flywheel/Drive Plate Inspection

Visual Inspection
^ Check ring gear of flywheel for 5 M/T model or drive plate for 4 A/T model, for crack, wear or any damage.
If defective condition is found, replace flywheel for 5 M/T model or drive plate for 4 A/T model.

Flywheel/Drive Plate Face Runout

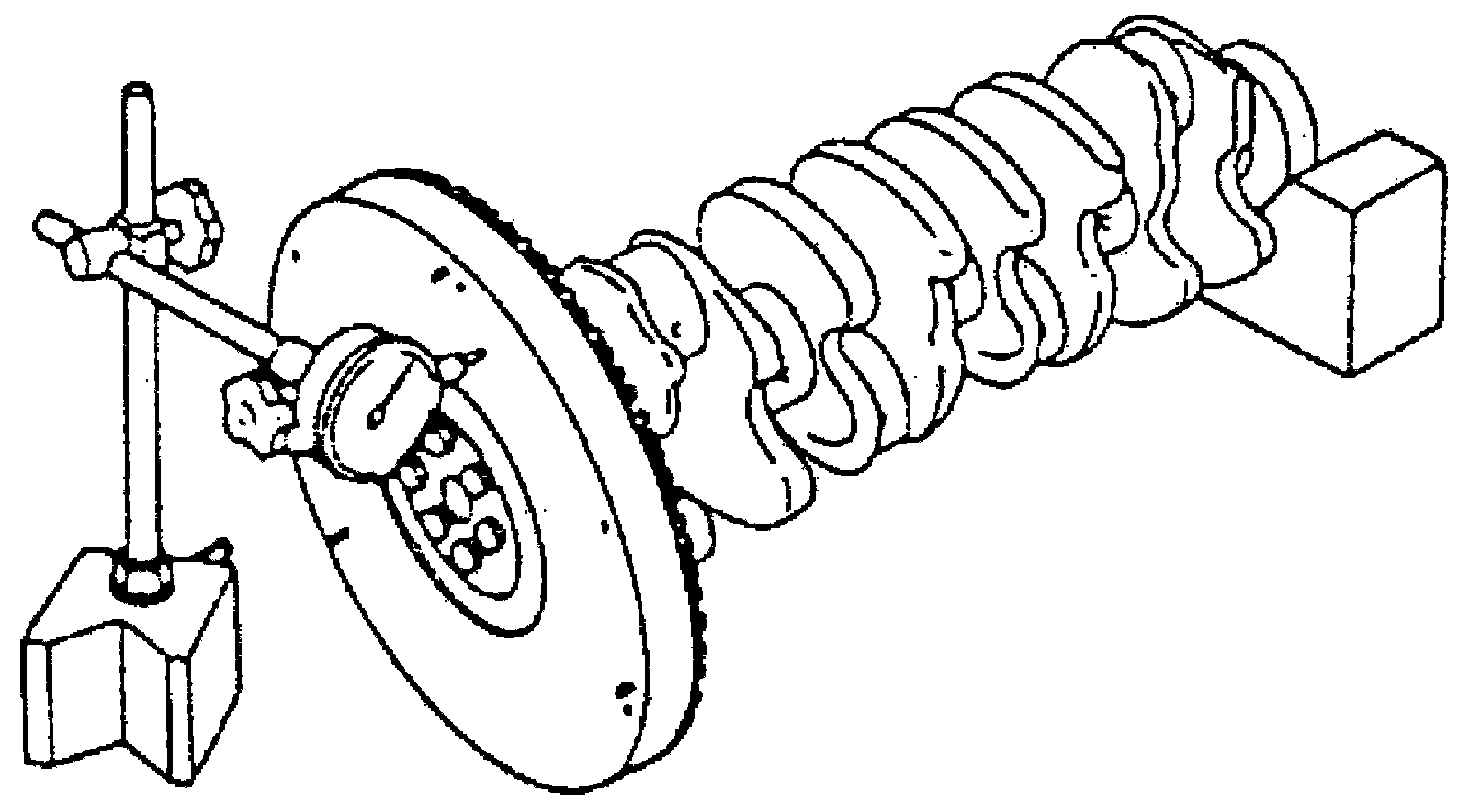

^ Check flywheel for 5 M/T model or drive plate for 4 A/T model for runout using dial gauge and "V" blocks. If measured runout exceeds its limit, replace flywheel for 5 M/T model or drive plate for 4 A/T model.
Flywheel/drive plate face runout
Limit: 0.2 mm (0.0078 in.)
