Radiator Removal and Installation
Radiator Removal and InstallationRemoval
1) Disconnect negative (-) cable from battery.
2) For 4 A/T model, drain A/T fluid.
3) Drain coolant.
4) Remove cooling fan assembly. "Radiator Cooling Fan Assembly Removal and Installation:J24B"
5) For 4 A/T model, remove A/T fluid cooler hoses.
6) Remove radiator inlet hose and outlet hose from radiator.
7) Remove front grill.

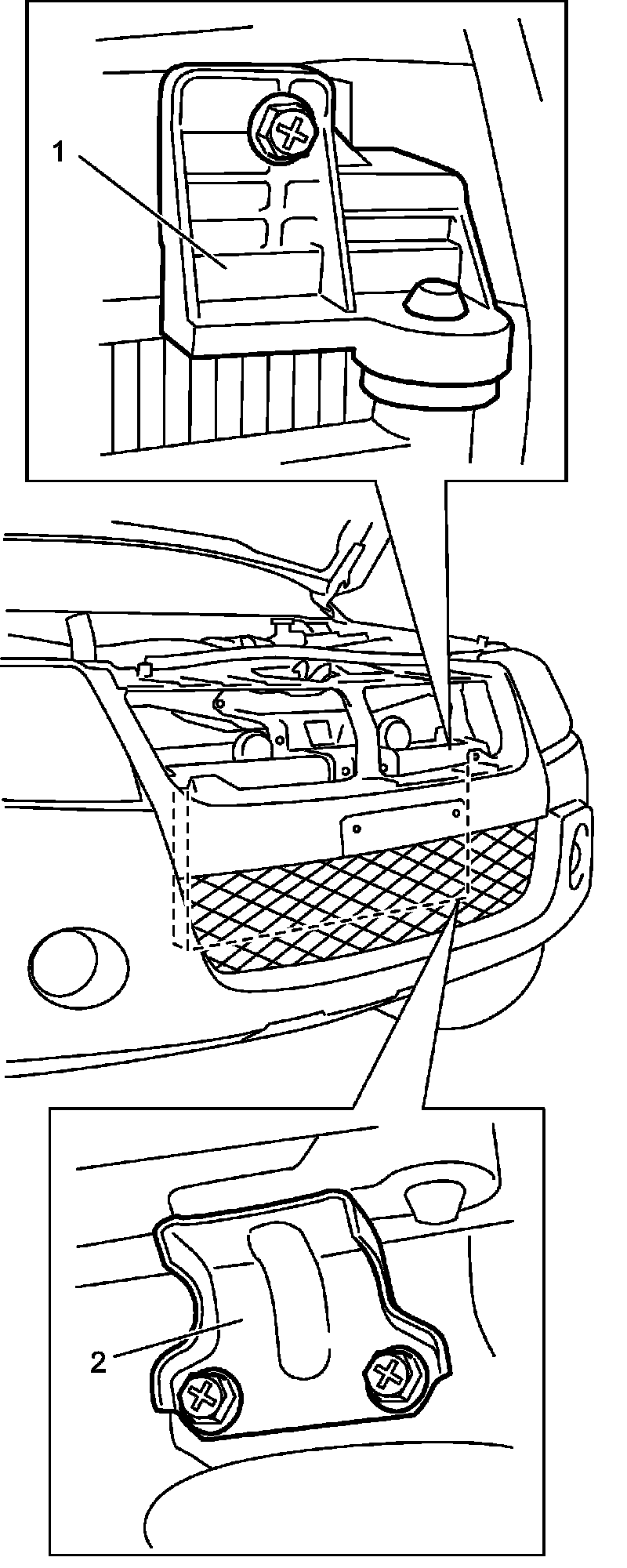

8) Remove condenser upper brackets (1) and lower brackets (2) from radiator.
9) Remove radiator from vehicle.
Installation
Reverse removal procedures for installation noting the following.
^ Refill cooling system.
^ After installation, verify that there is no coolant leakage at each connection.
^ Refill A/T fluid (A/T model).
