Junction Block Inner Circuit (Detail)

Junction Block Inner Circuit (Detail)

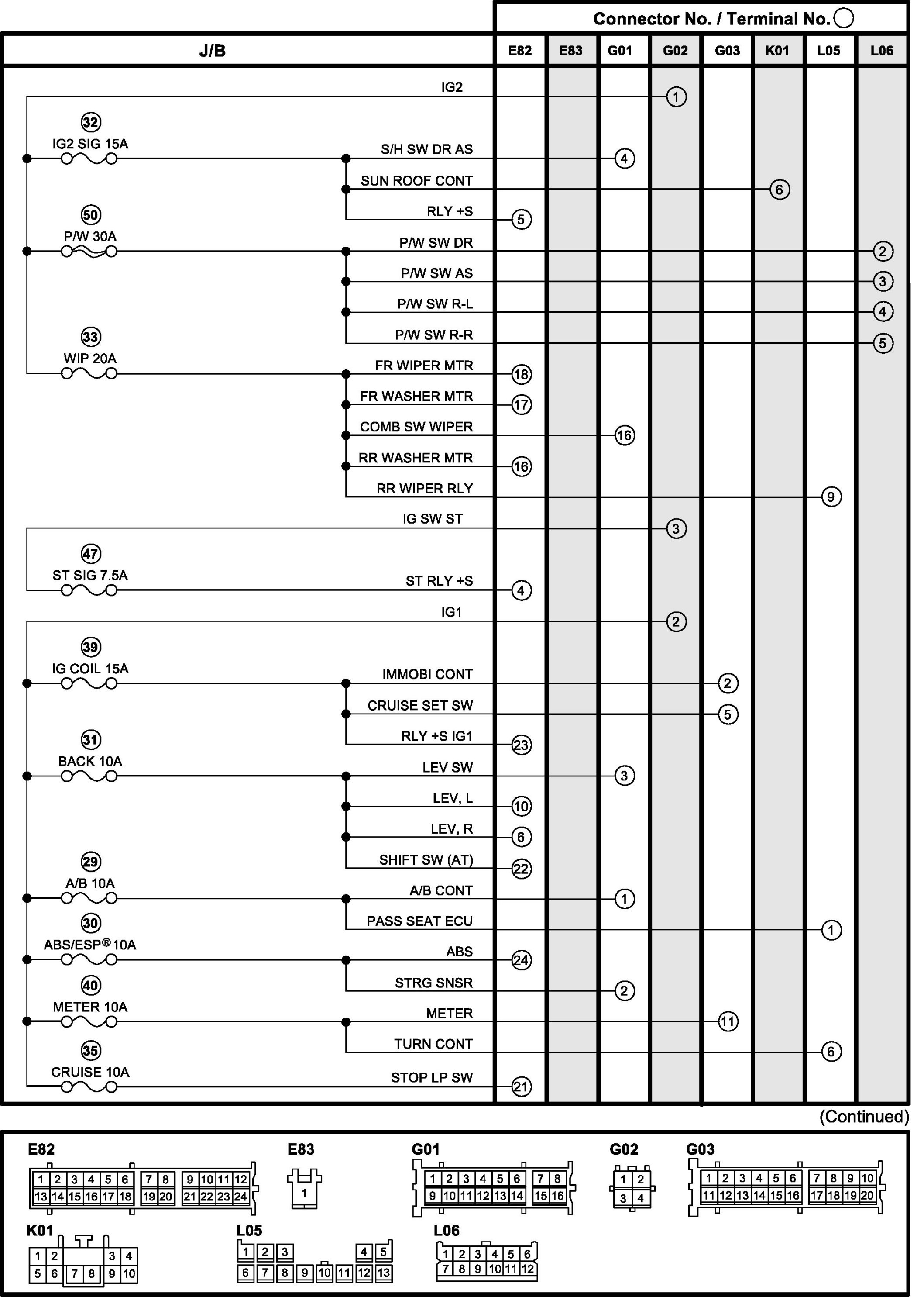

Junction Box Inner Circuit (Detail) Diagram 1:

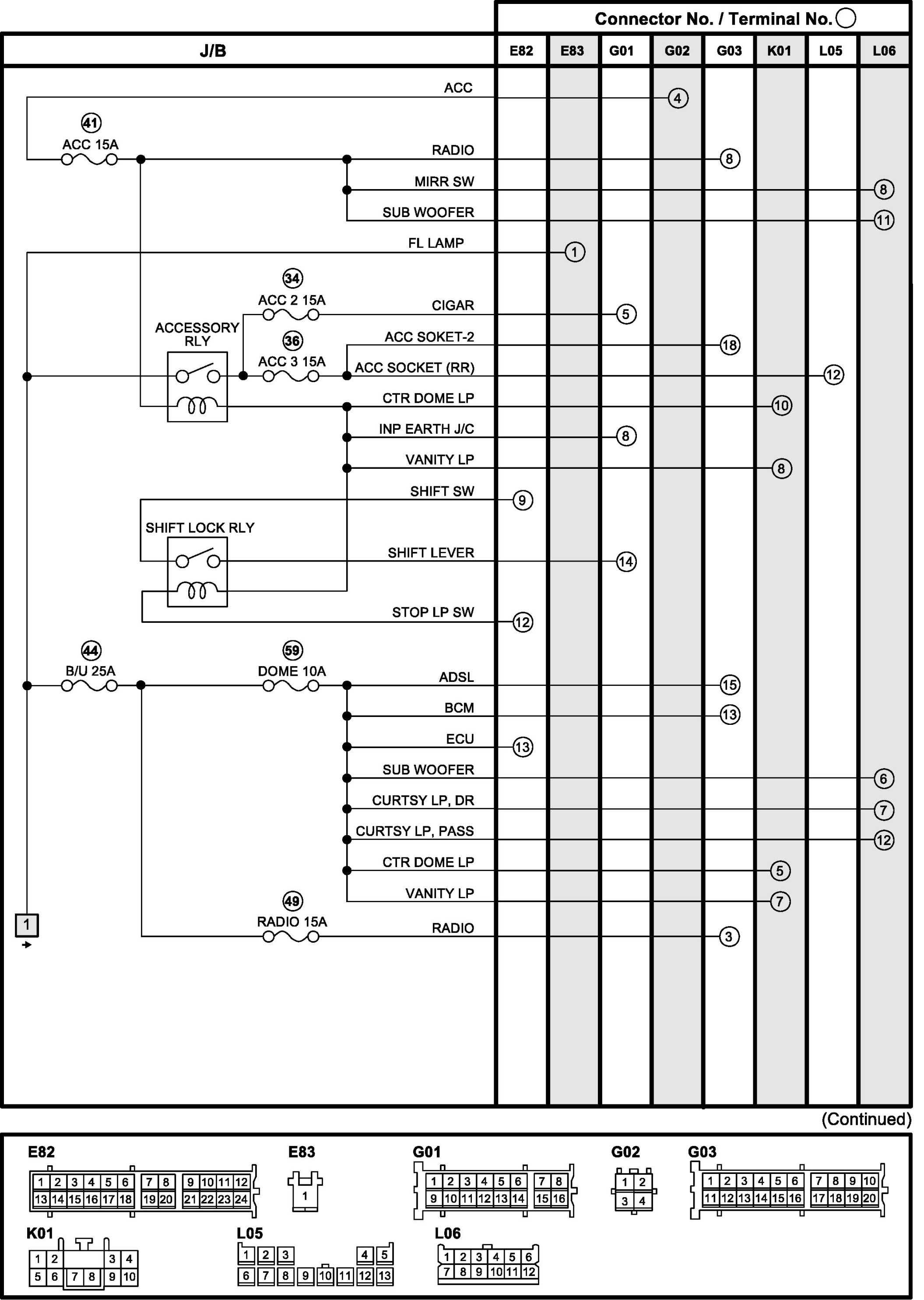

Junction Box Inner Circuit (Detail) Diagram 2:

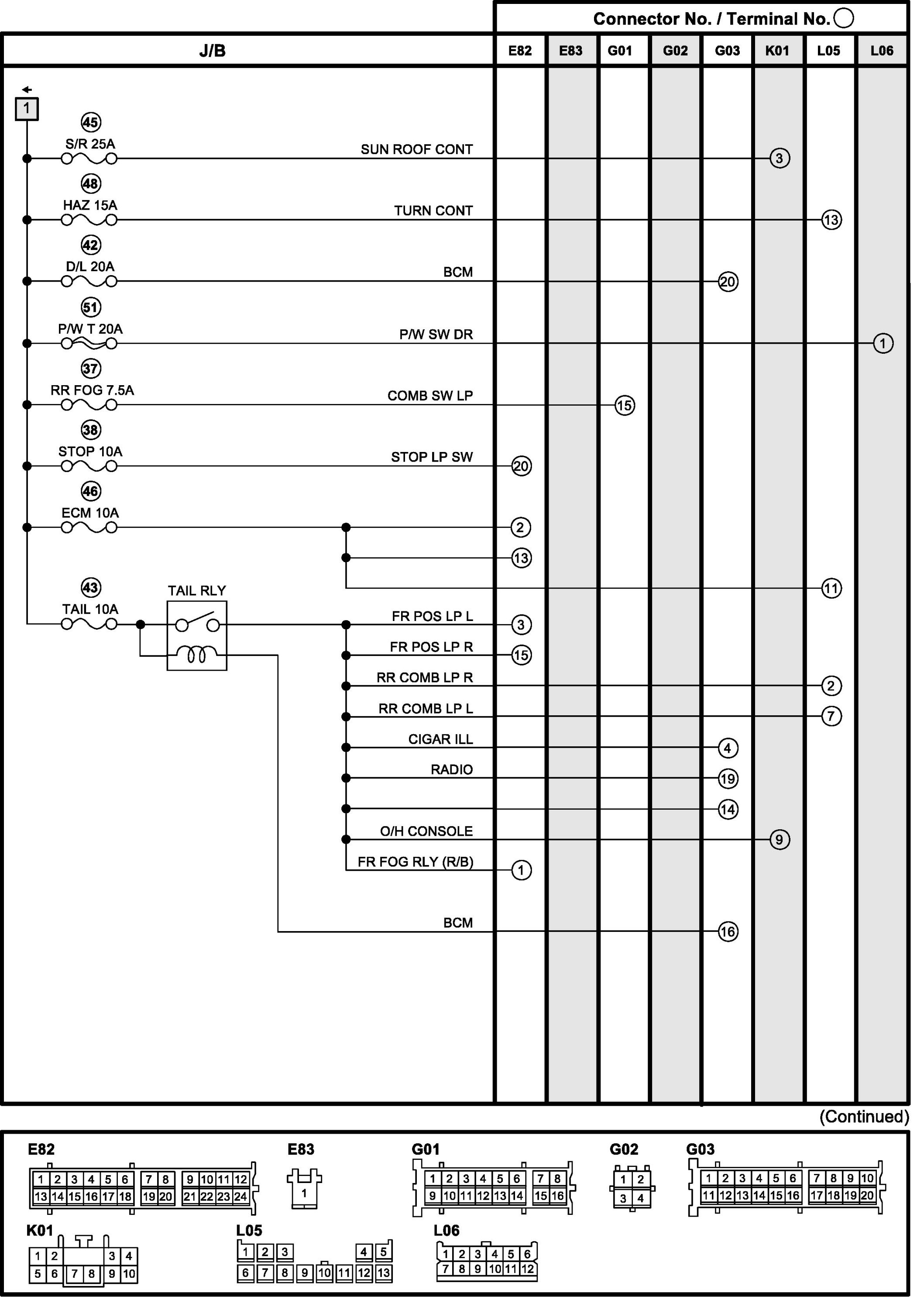

Junction Box Inner Circuit (Detail) Diagram 3:

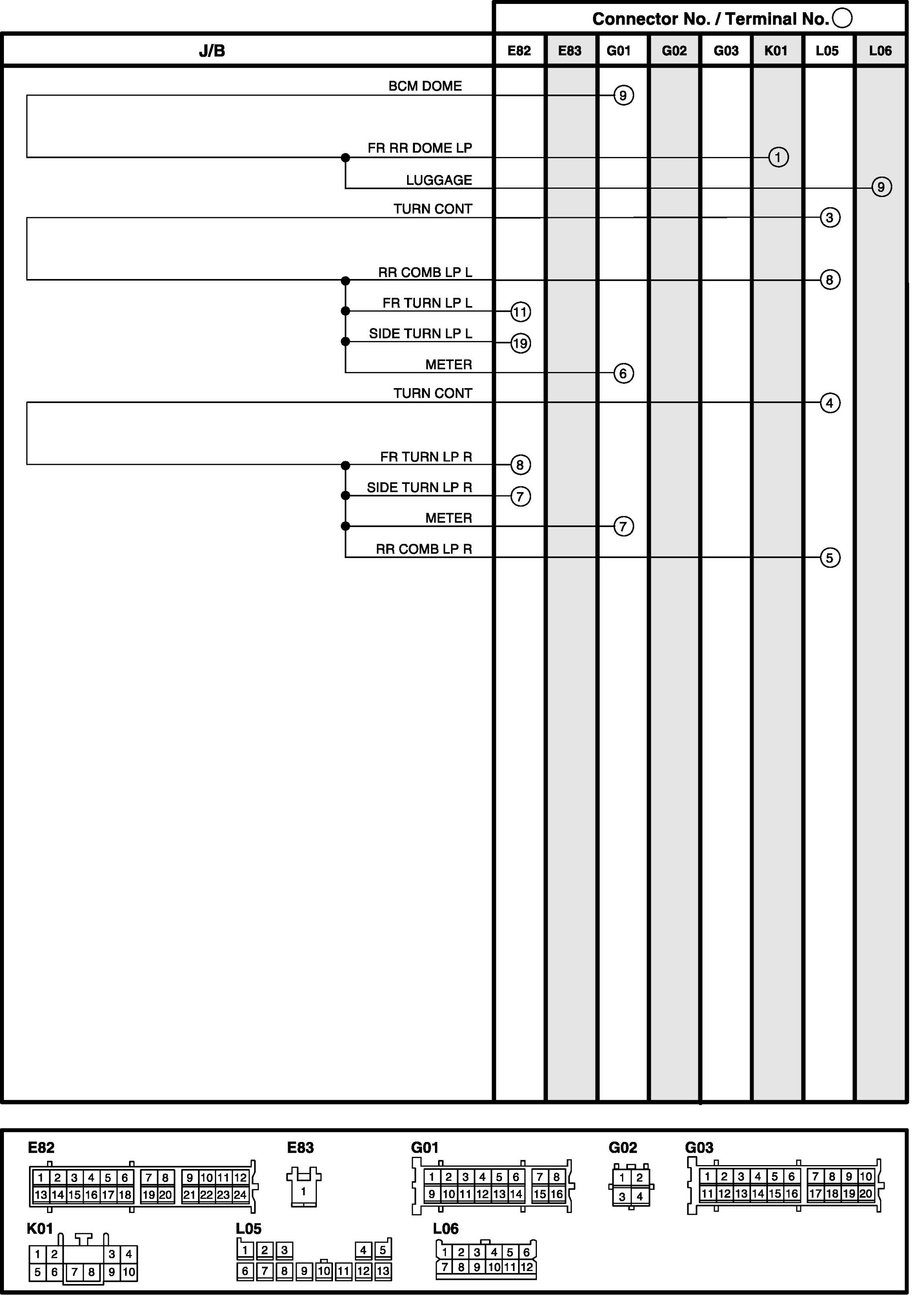

Junction Box Inner Circuit (Detail) Diagram 4:
