4-Speed Automatic Transmission

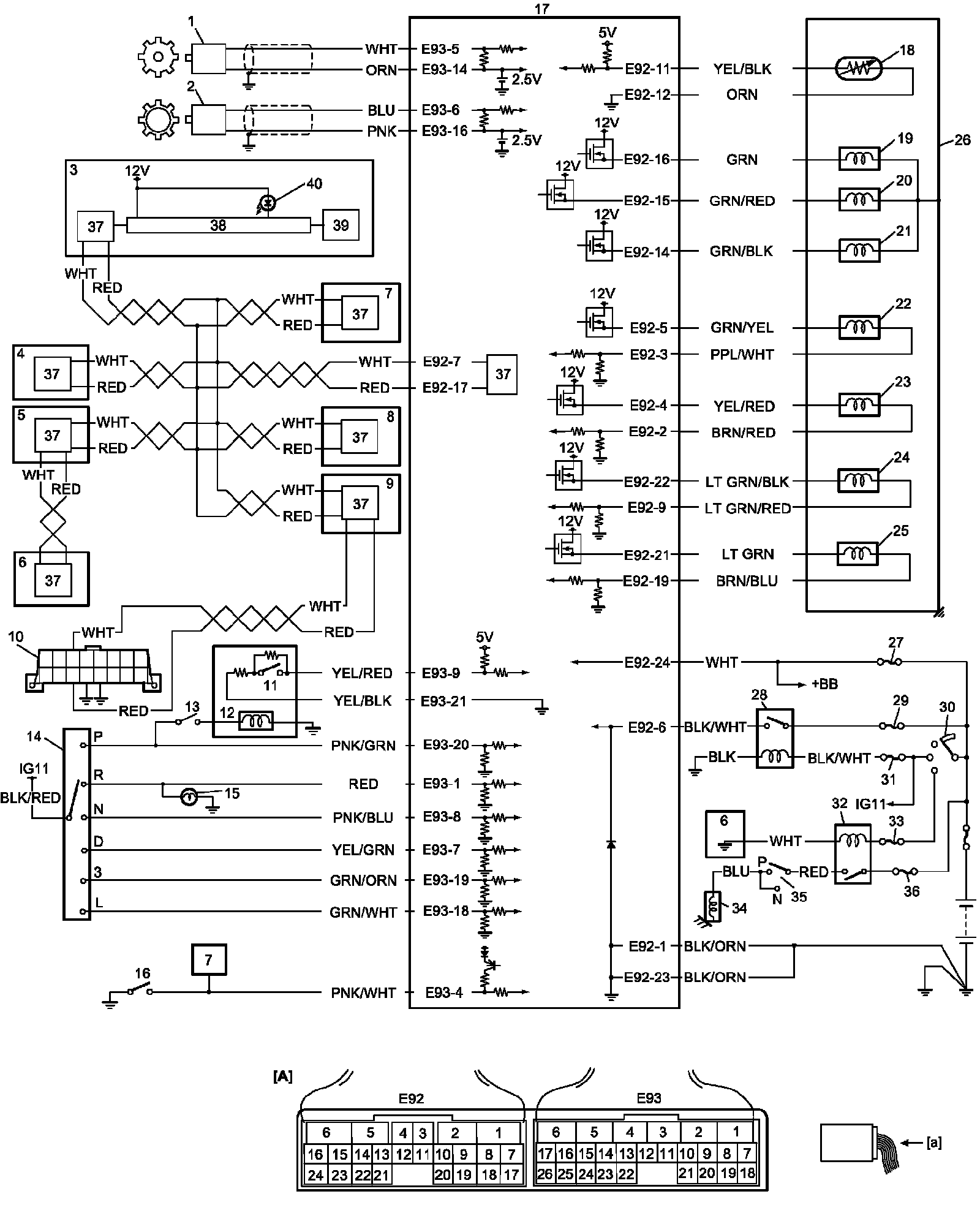

Electronic Shift Control System Wiring Diagram

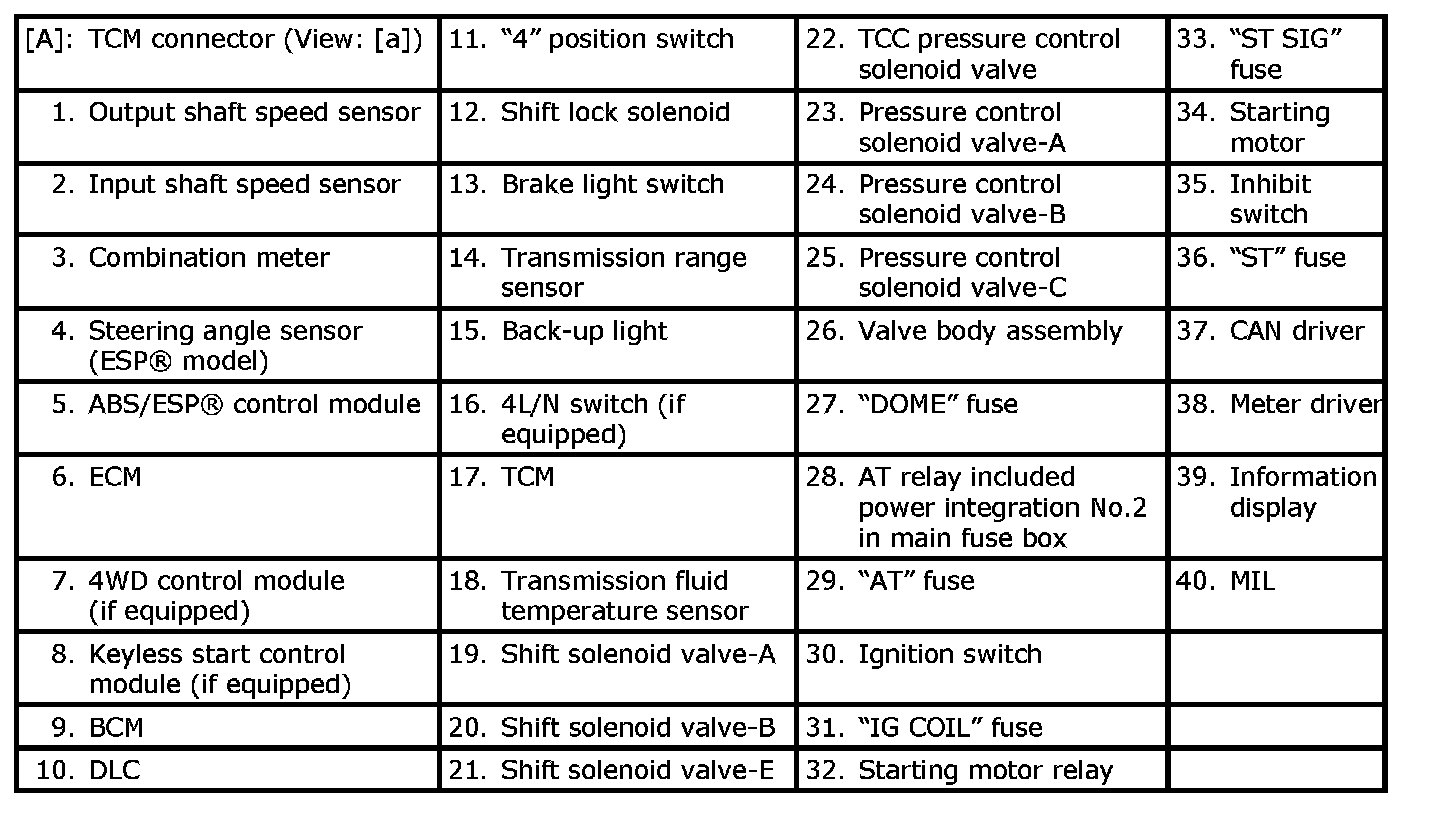

Electronic Shift Control System Wiring Diagram 1:




Electronic Shift Control System Wiring Diagram 2:
