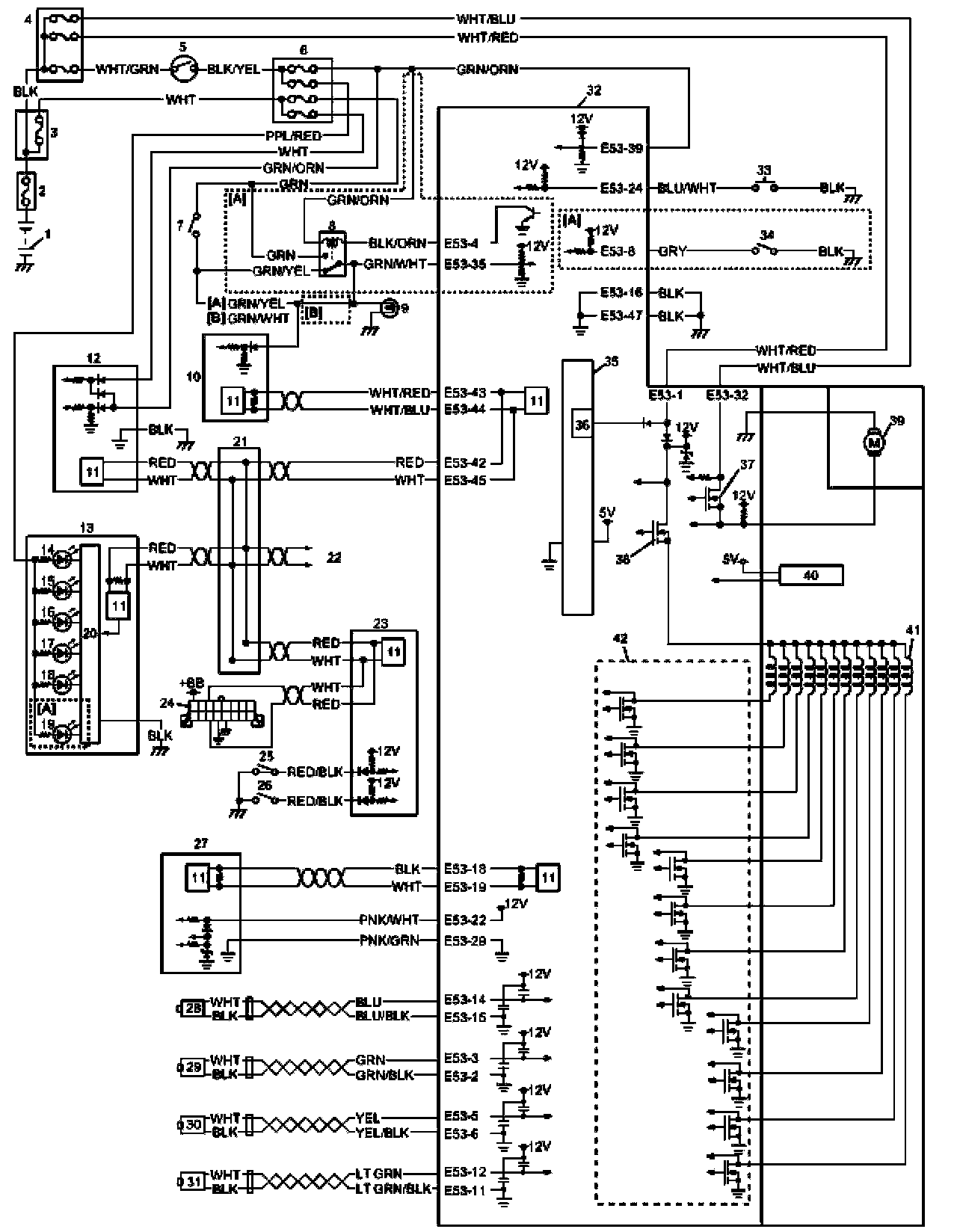

Electronic Stability Program Wiring Circuit Diagram

Electronic Stability Program Wiring Circuit Diagram

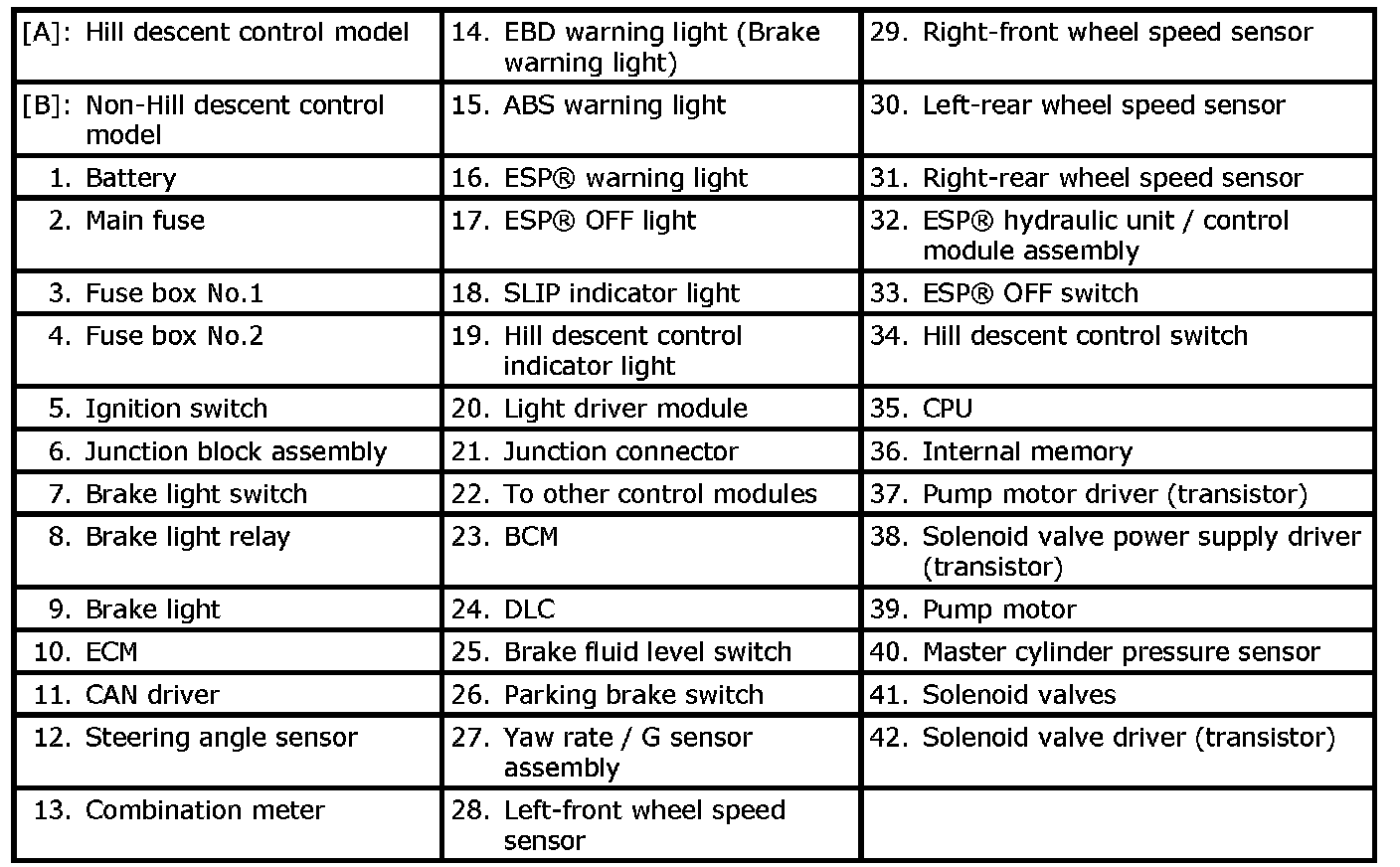

Wiring Diagram:

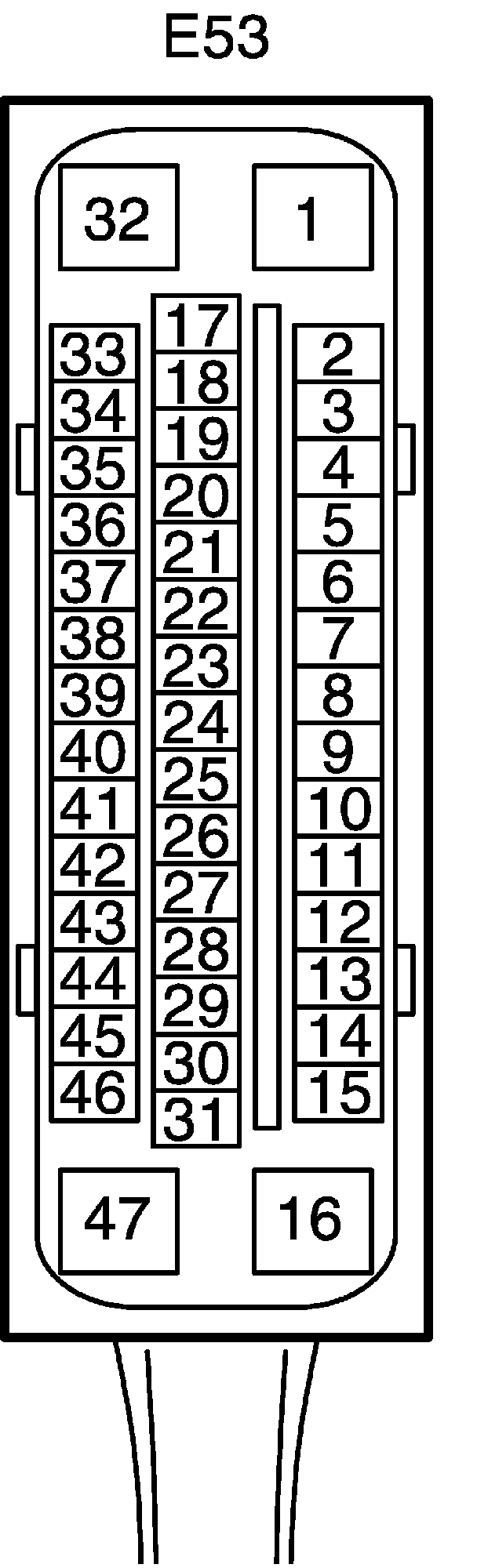

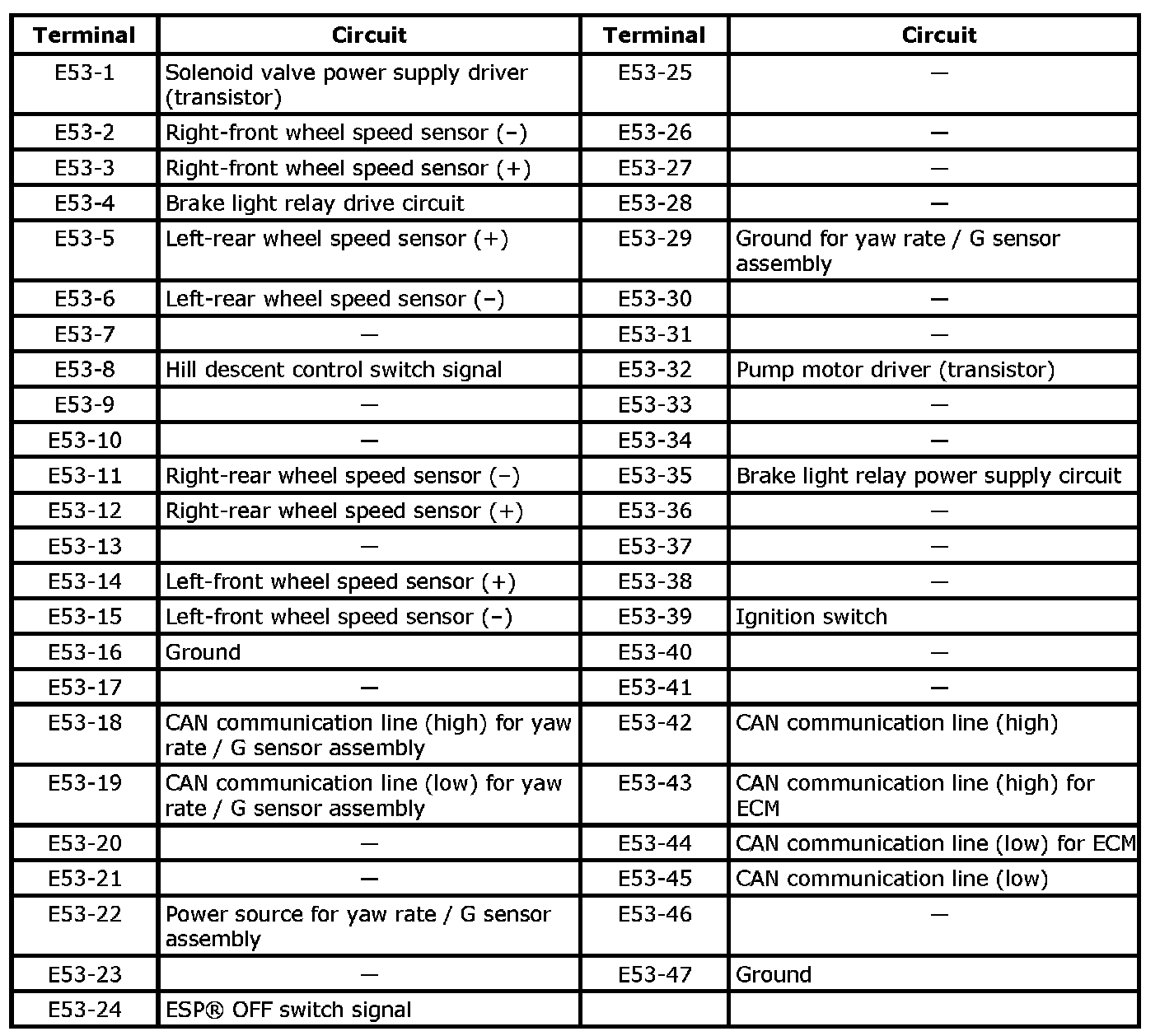

Terminal Arrangement of ESP@ Control Module Connector (Viewed from Terminal Side)
