Rear

Rear Brake Caliper Removal and Installation

CAUTION:
^ Do not allow brake fluid to get on painted surfaces. Painted surfaces will be damaged by brake fluid, flush it with water immediately if any fluid is spilled.
^ During removal, be careful not to damage brake flexible hose and not to depress brake pedal.
^ Do not reuse brake flexible hose washers.
Otherwise, brake fluid may leak.

Removal
1) Hoist vehicle and remove rear wheel.

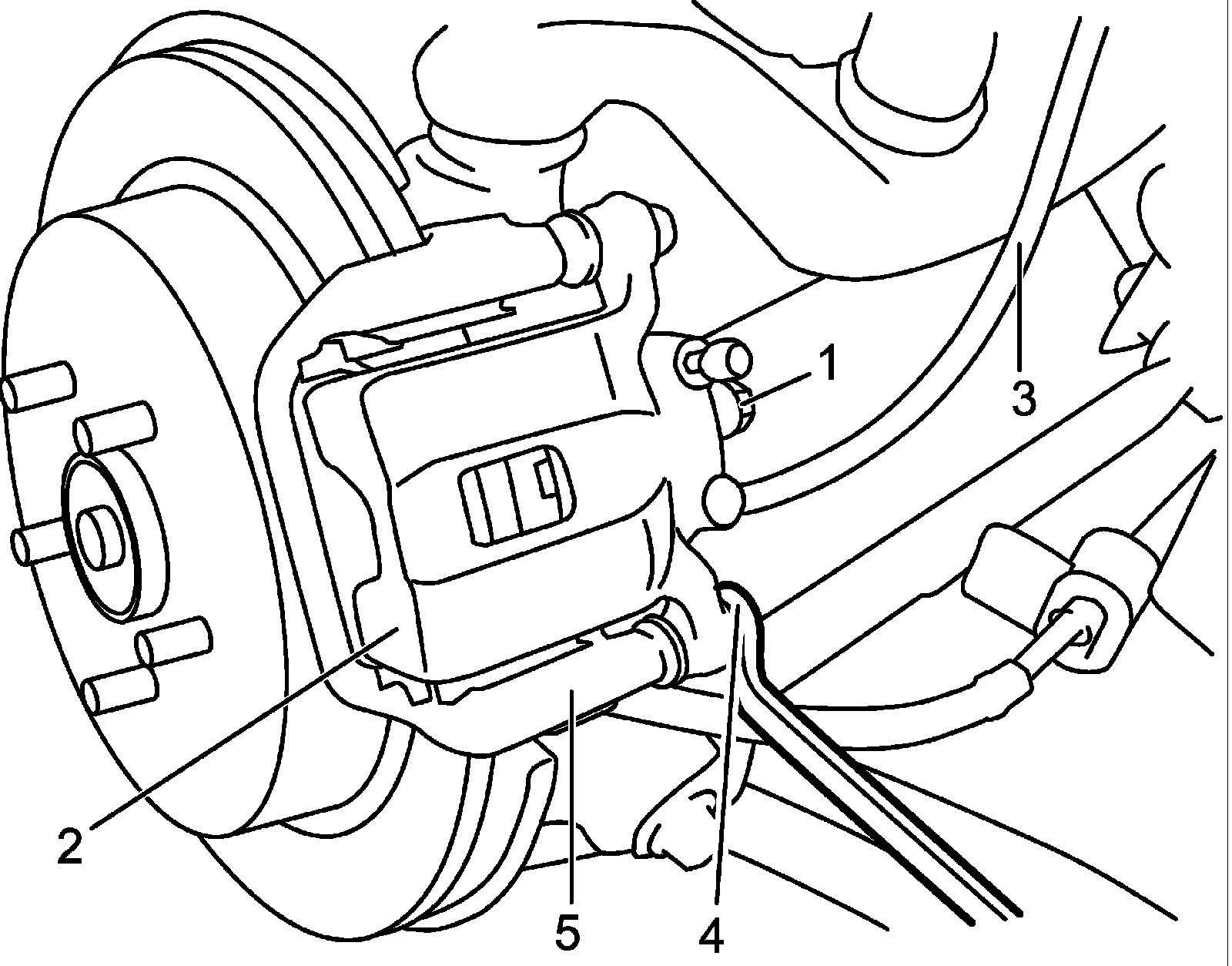

2) Remove brake flexible hose mounting bolt (1) from caliper (2). As this will allow fluid to flow out of hose (3), have a container ready beforehand.

CAUTION:
Be careful not to twist flexible hose while loosening the bolt.

3) Remove caliper pin bolts (4).
4) Remove caliper (2) from caliper carrier (5).





Installation

1) Install caliper to caliper carrier.

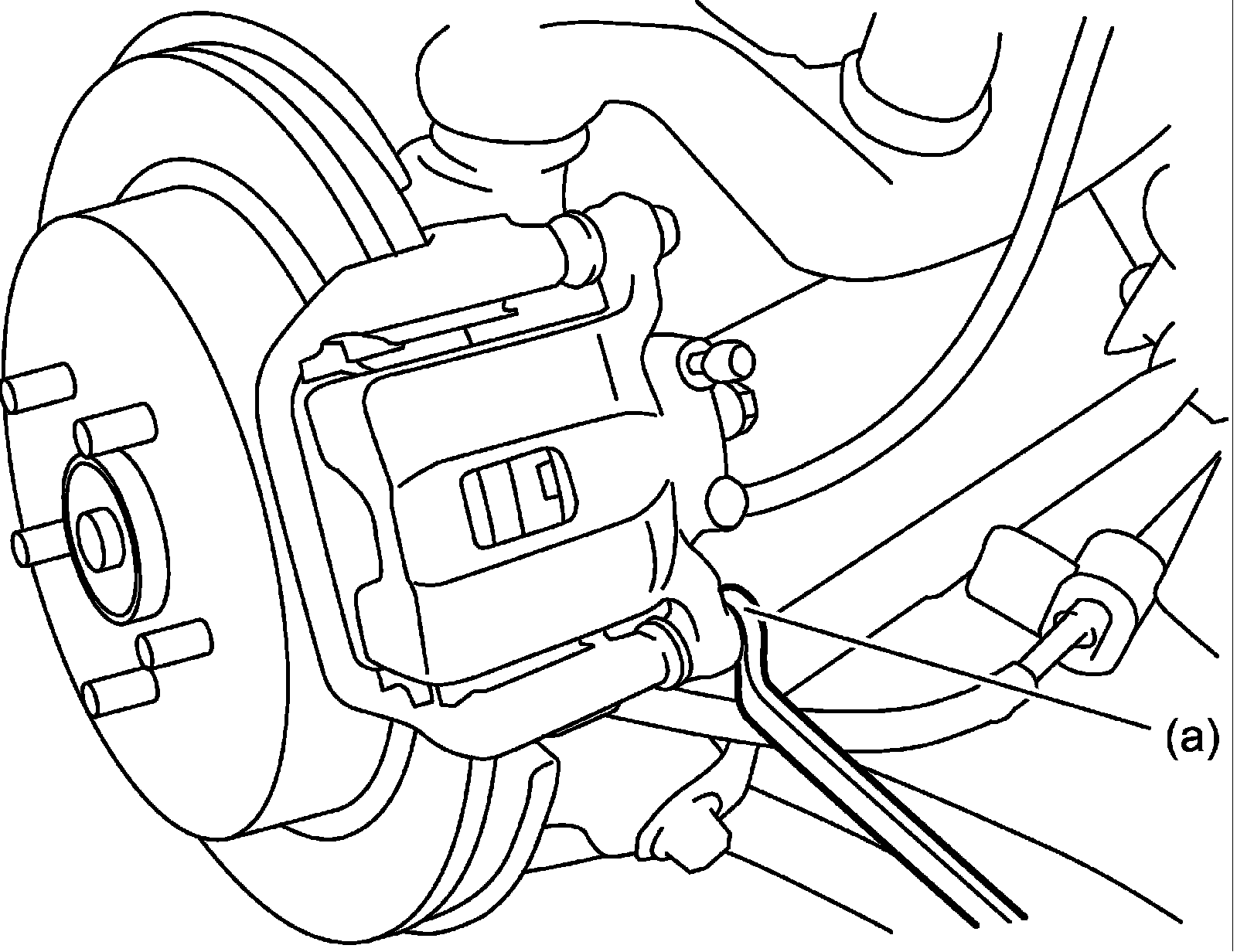

2) Tighten caliper pin bolts to specified torque.

NOTE:
Make sure that boots are fit into groove securely.

Tightening torque
Caliper pin bolt (a): 43 Nm (4.4 kg-m, 32.0 ft. lbs.)

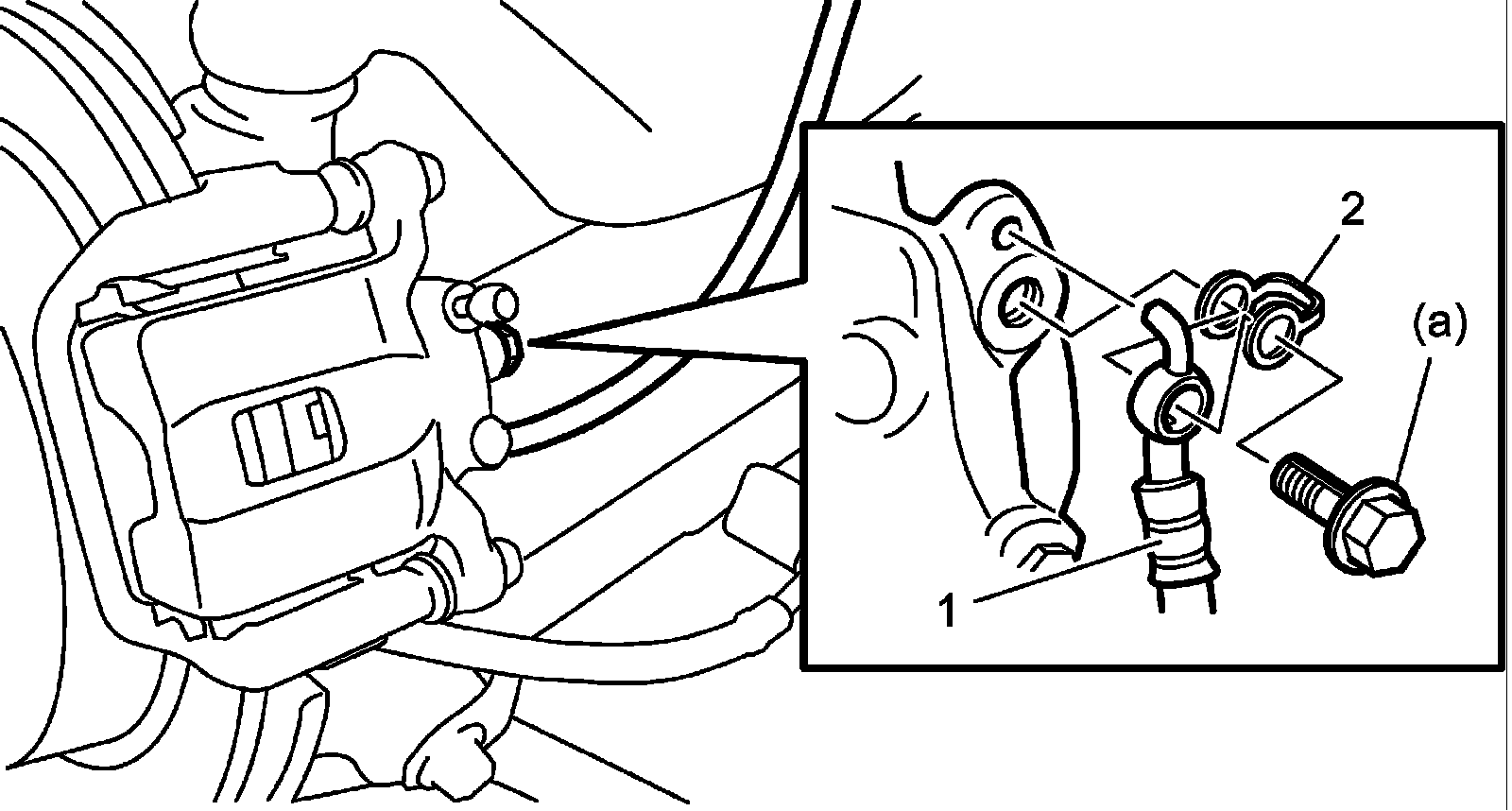

3) Connect flexible hose (1) with new washers (2) to caliper as shown in figure and tighten flexible hose joint bolt to specified torque.
Tightening torque
Flexible hose joint bolt (a): 23 Nm (2.3 kg-m, 17.0 ft. lbs.)





4) Fill reservoir with specified brake fluid and bleed brake system.
5) Install rear wheel and tighten rear wheel nuts to specified torque.
6) After completing installation, check each installed part for oil leakage and perform brake test.
