Brake Pedal Assy: Adjustments

Brake Pedal Free Height Adjustment
Measure brake pedal free height between pedal and carpet installed on dash panel.
If the measurement is not within the specification, check the position of booster push rod clevis and/or brake light switch. The free height varies depending on installation position of booster push rod clevis and brake light switch.

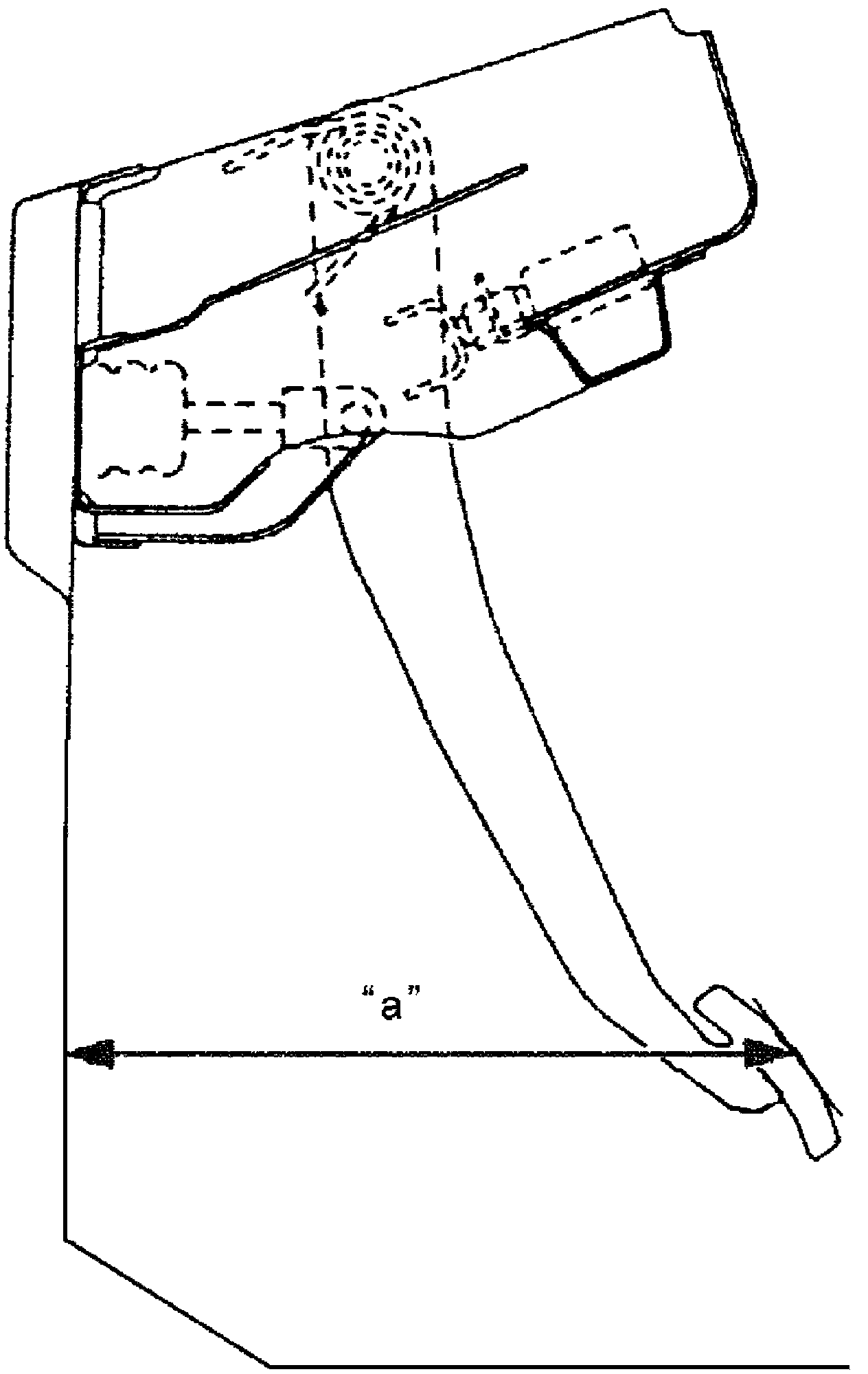

Brake pedal free height "a" from carpet
"a": 190 - 200 mm (7.48 - 7.78 in.)
