ESP@ Warning Light Check

ESP@ Warning Light Check
1) Turn ignition switch ON.

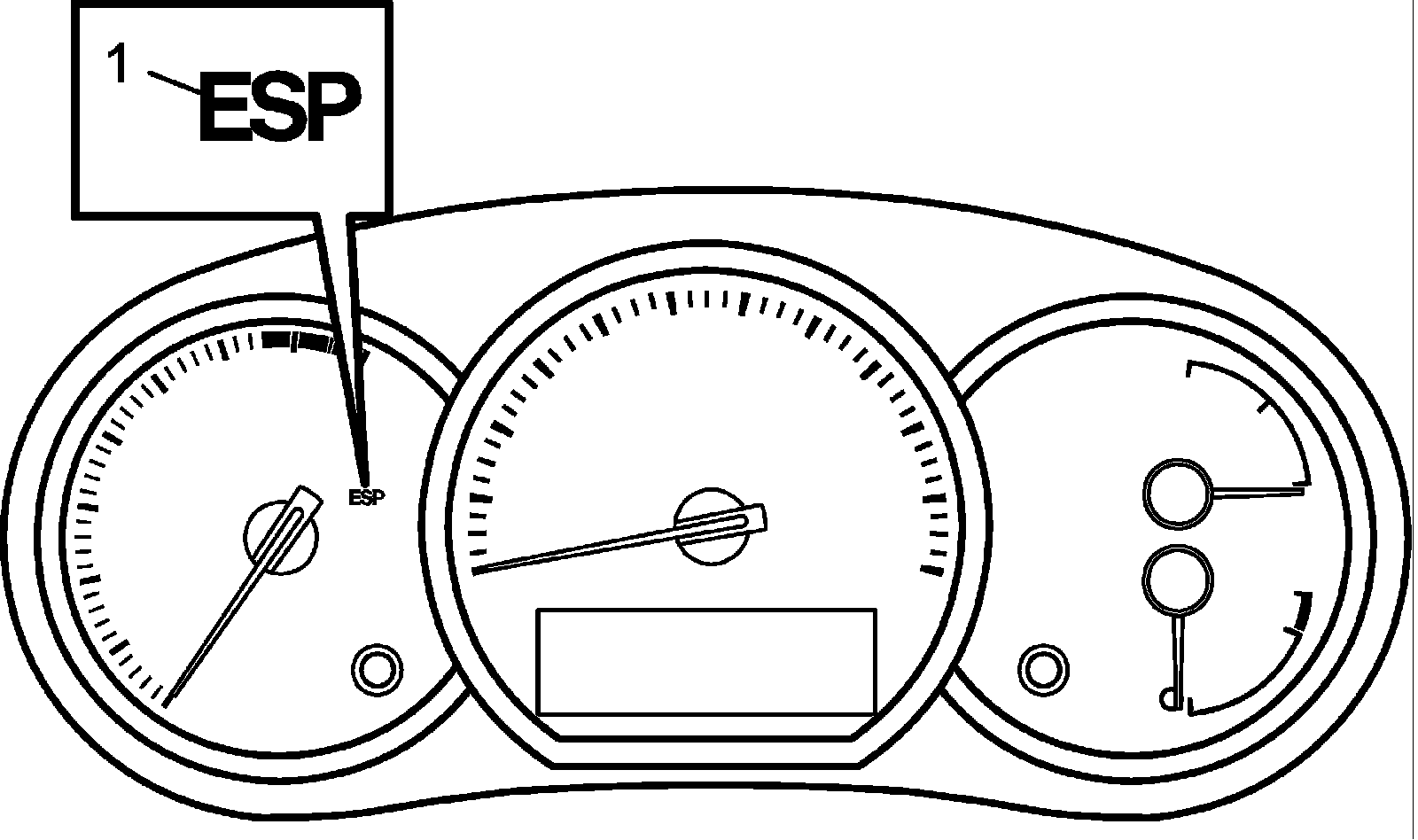

2) Check that ESP (R) warning light (1) comes ON for about 2 seconds and then goes off.
If any faulty condition is found, advance to ESP@ Warning Light Does Not Come ON at Ignition Switch ON or ESP@ Warning Light Comes ON Stead
