Headliner: Service and Repair

Head Lining Removal And Installation

WARNING: Refer to "Air Bag Warning" before starting service work.

Removal

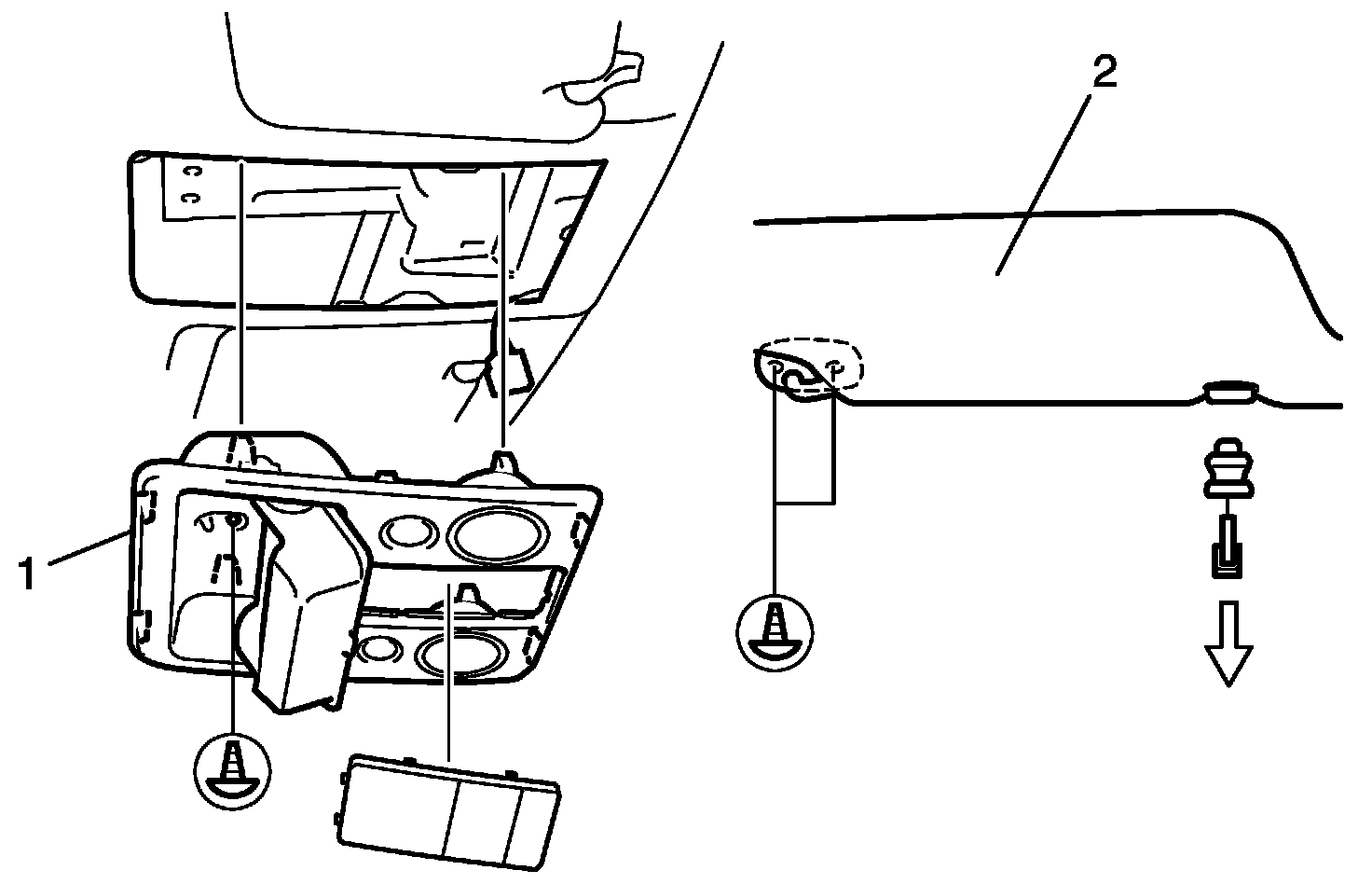

1. Remove overhead console (1) (if equipped) and sunvisor (2).

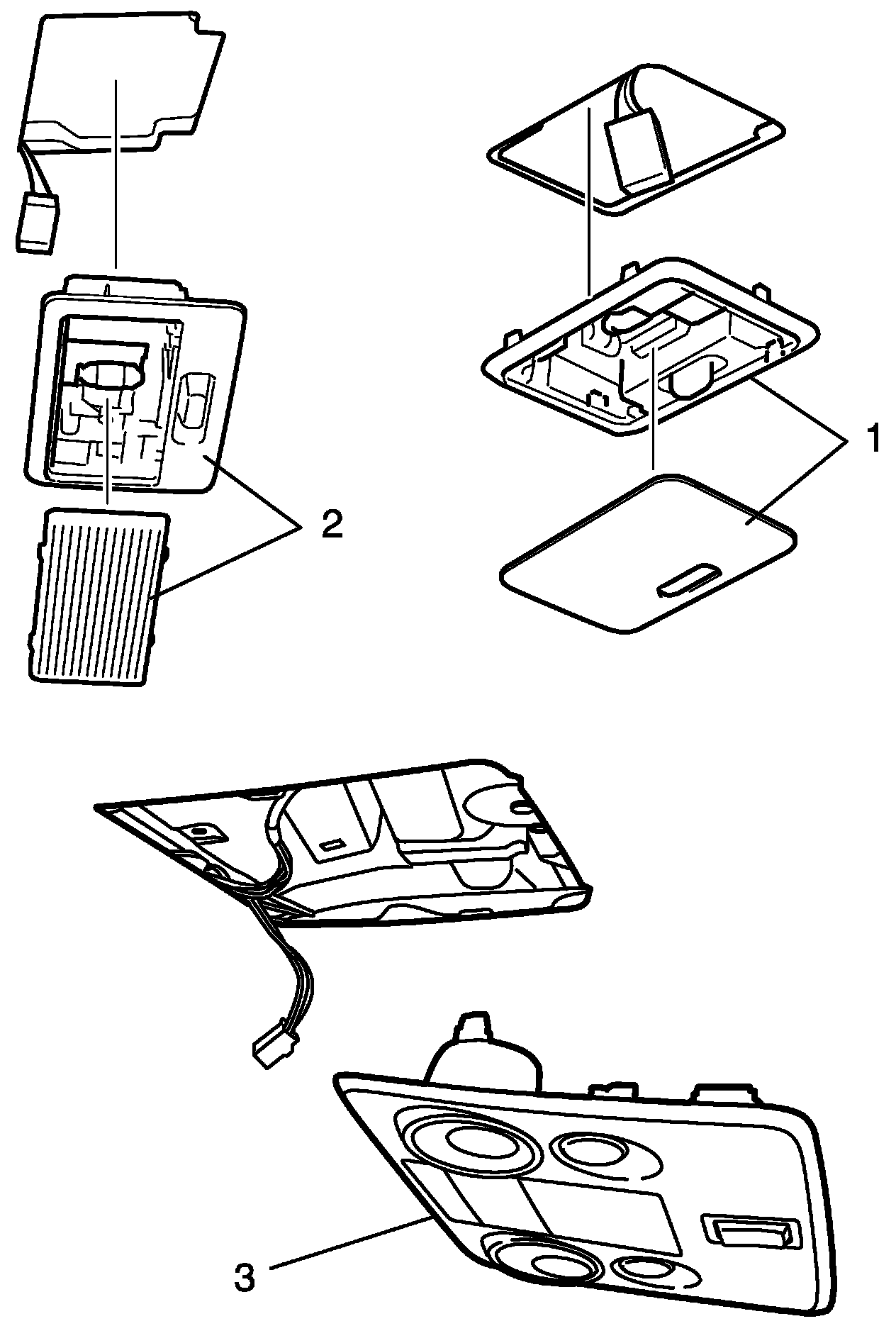

2. Remove room light (2), luggage light (1) and spot light (3) (if equipped).

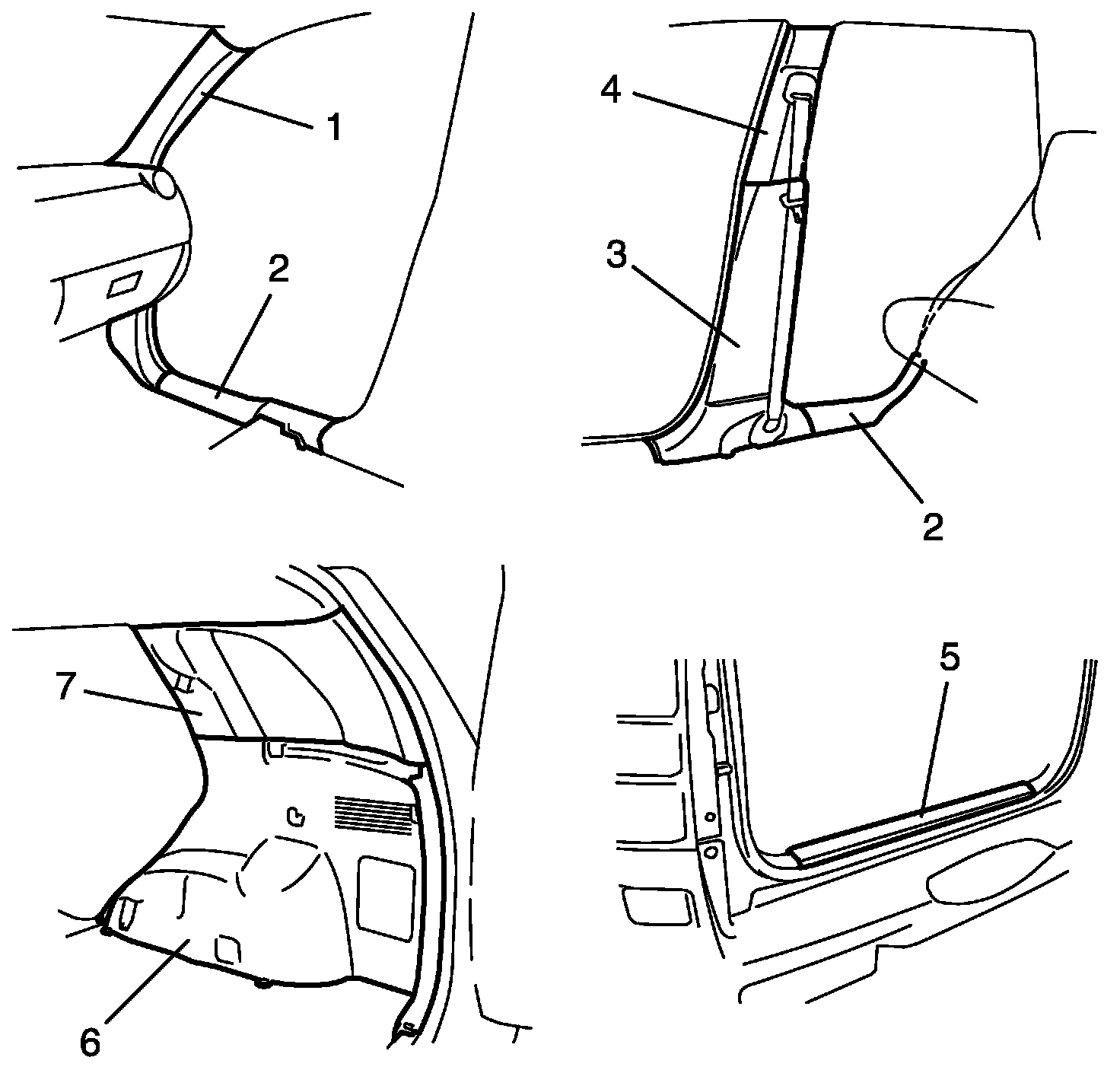

3. Remove front pillar upper trims (1), front and rear side sill scuffs (2), center pillar inner lower trims (3), center pillar inner upper trims (4), back panel trim (5), rear quarter lower trims (6) and rear quarter upper trims (7).







4. Remove assistant grip (1).

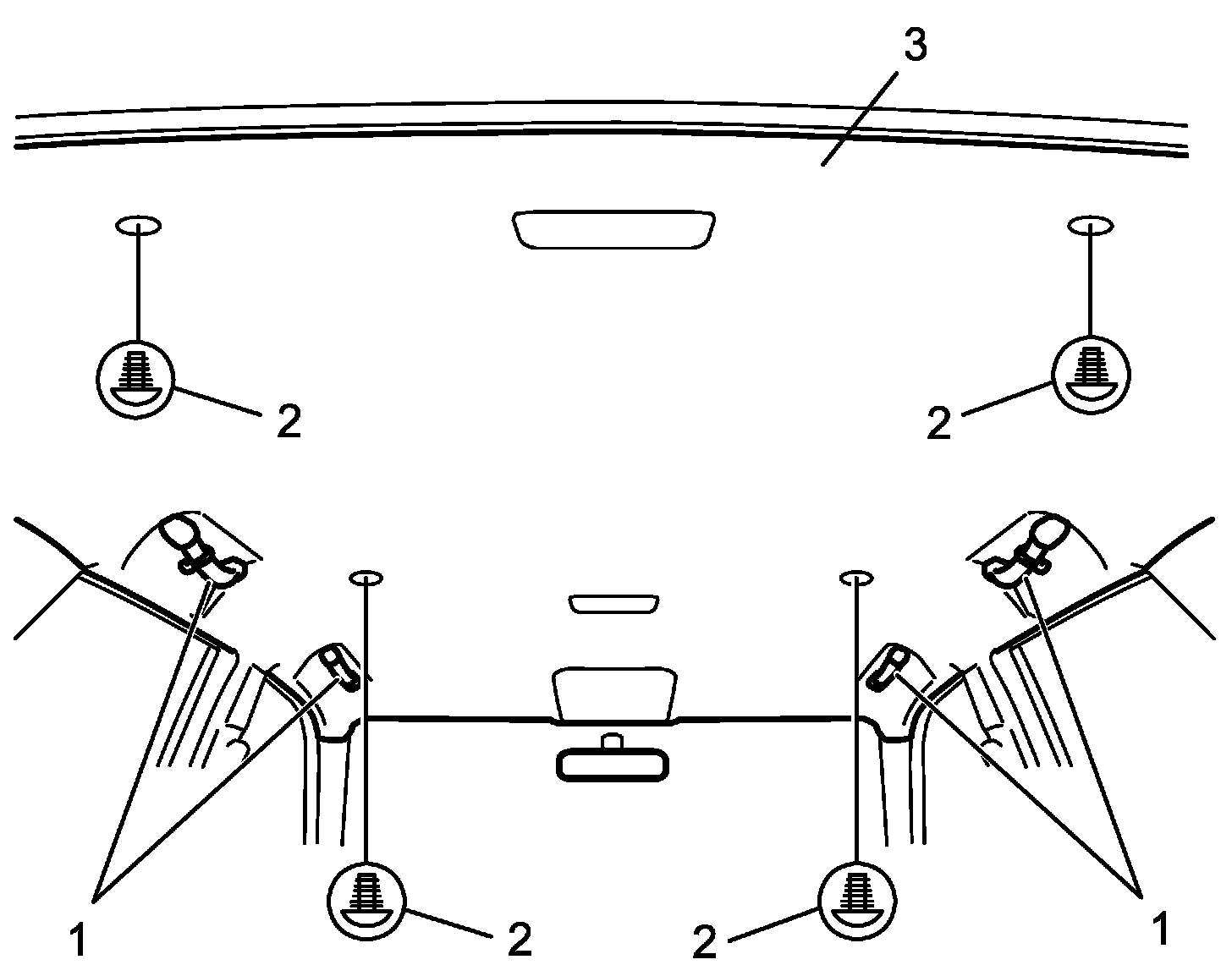

5. Remove head lining clips (2) and remove head lining (3).







Installation

Reverse removal procedure noting the following.

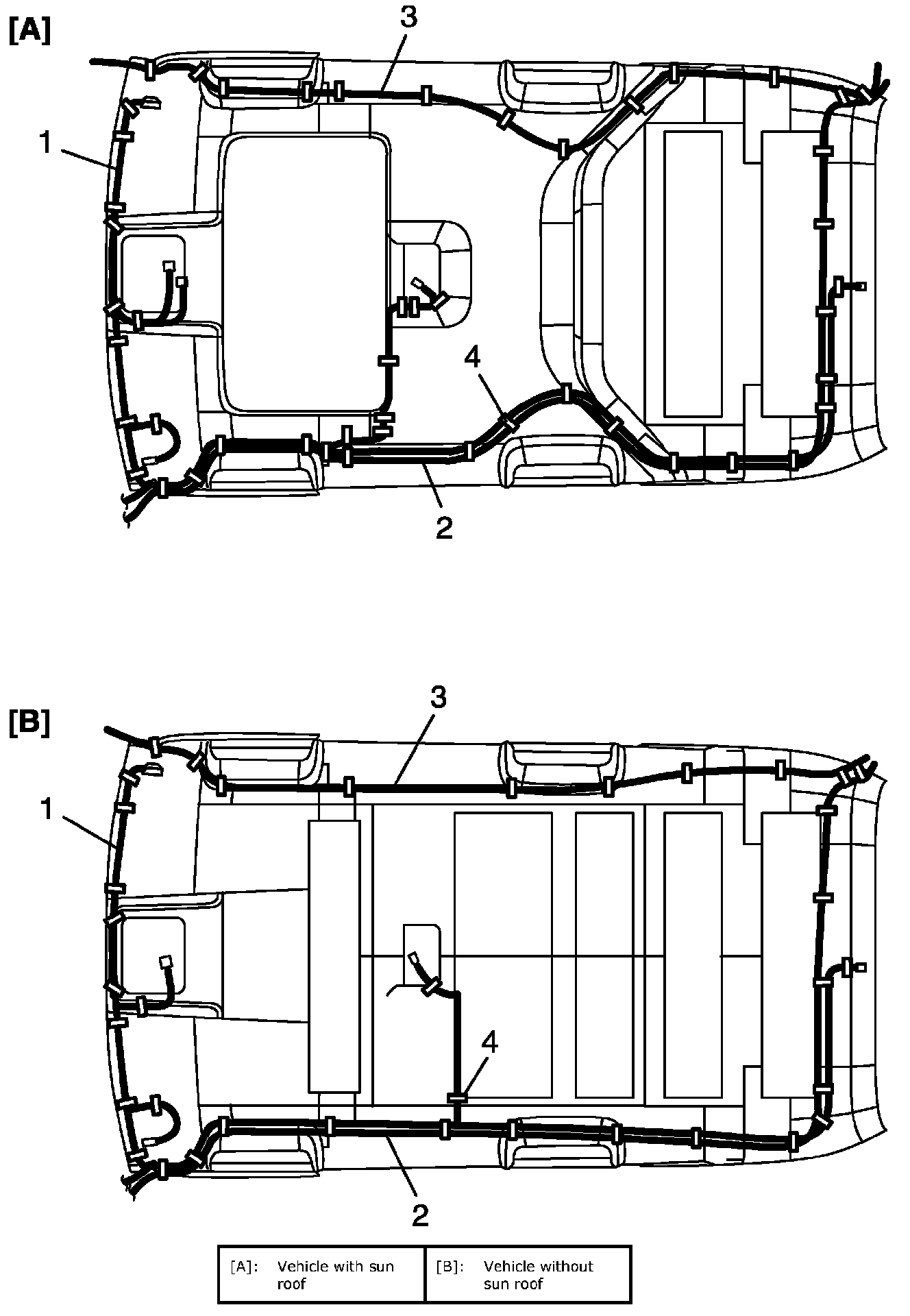

- Set roof harness (1), rear washer hose (2) and antenna feeder (3) to head lining with adhesive tape (an equivalent SUMITOMO 3M BT2105) (4) as shown.

Adhesive tape

An equivalent SUMITOMO 3M BT2105

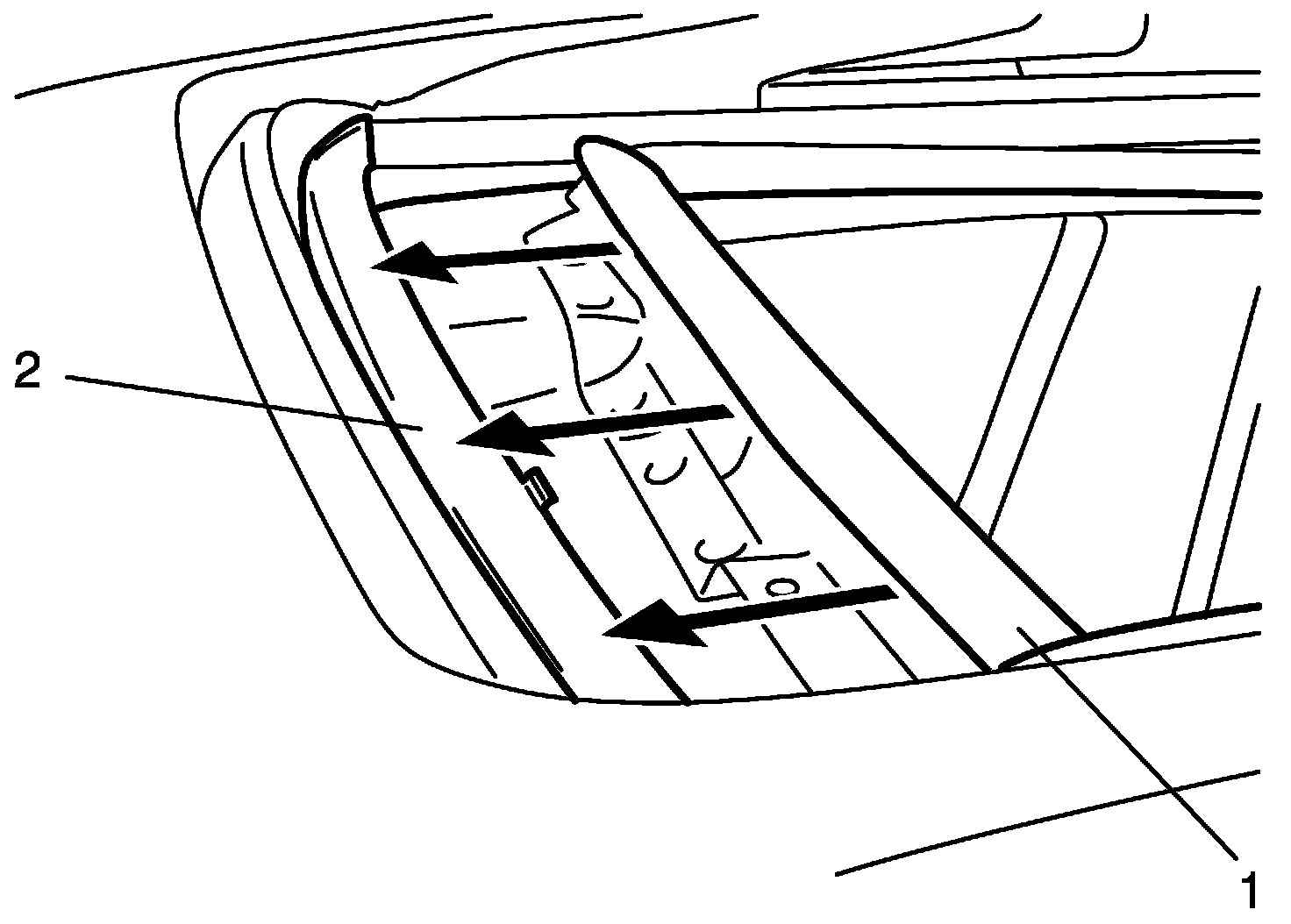

- For equipped with sun roof, hook on bracket (1) of roof lining to sun roof housing (2).

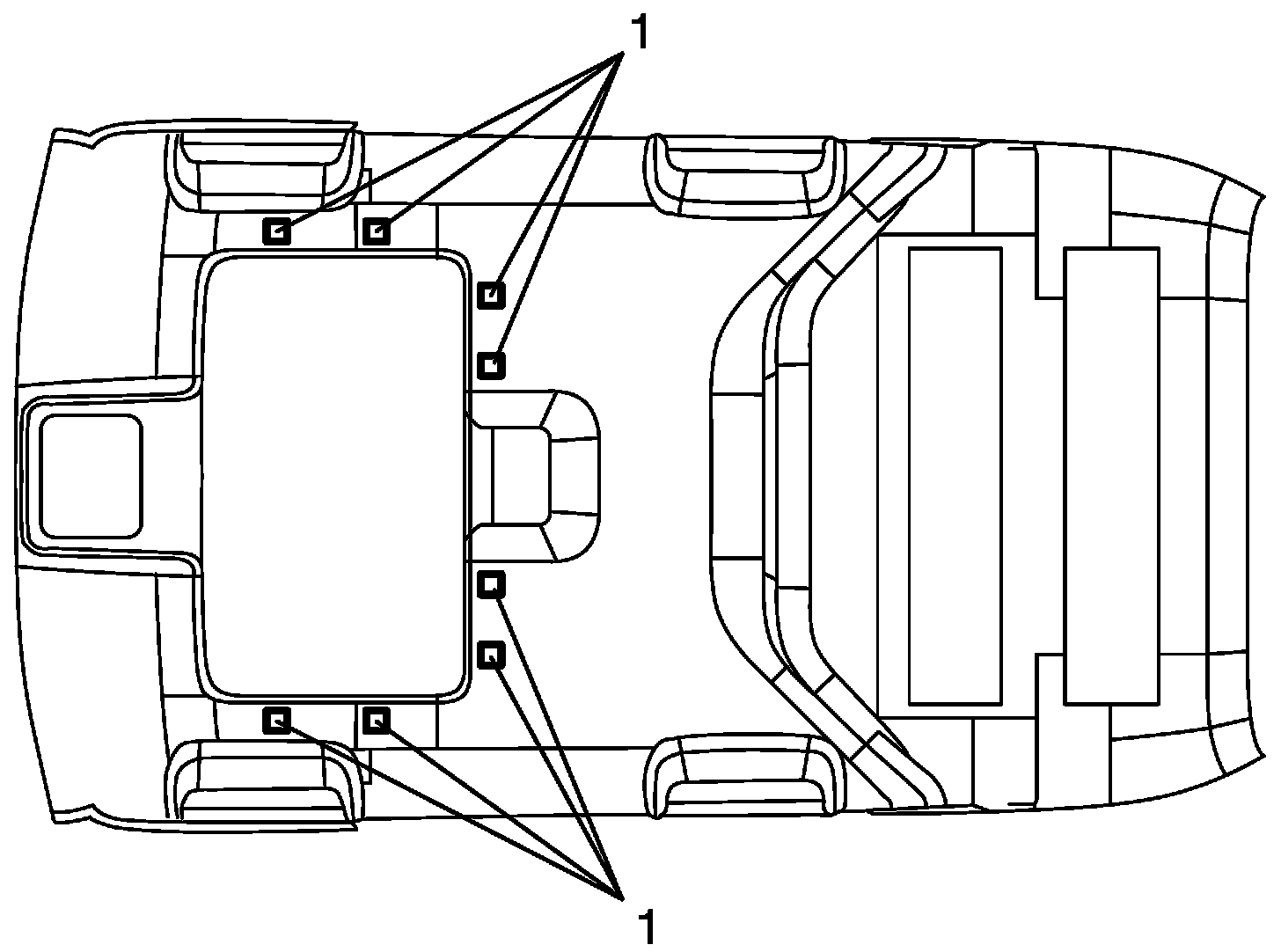

- For equipped with sun roof, adhere fasteners (1) on roof lining to fasteners of sun roof frame securely.







- For tightening torque of seat belt anchor bolt, refer to Front Seat Belt Components and Rear Seat Belt Components.
