BCM Power Circuit and Ground Circuit Check

BCM Power Circuit and Ground Circuit Check

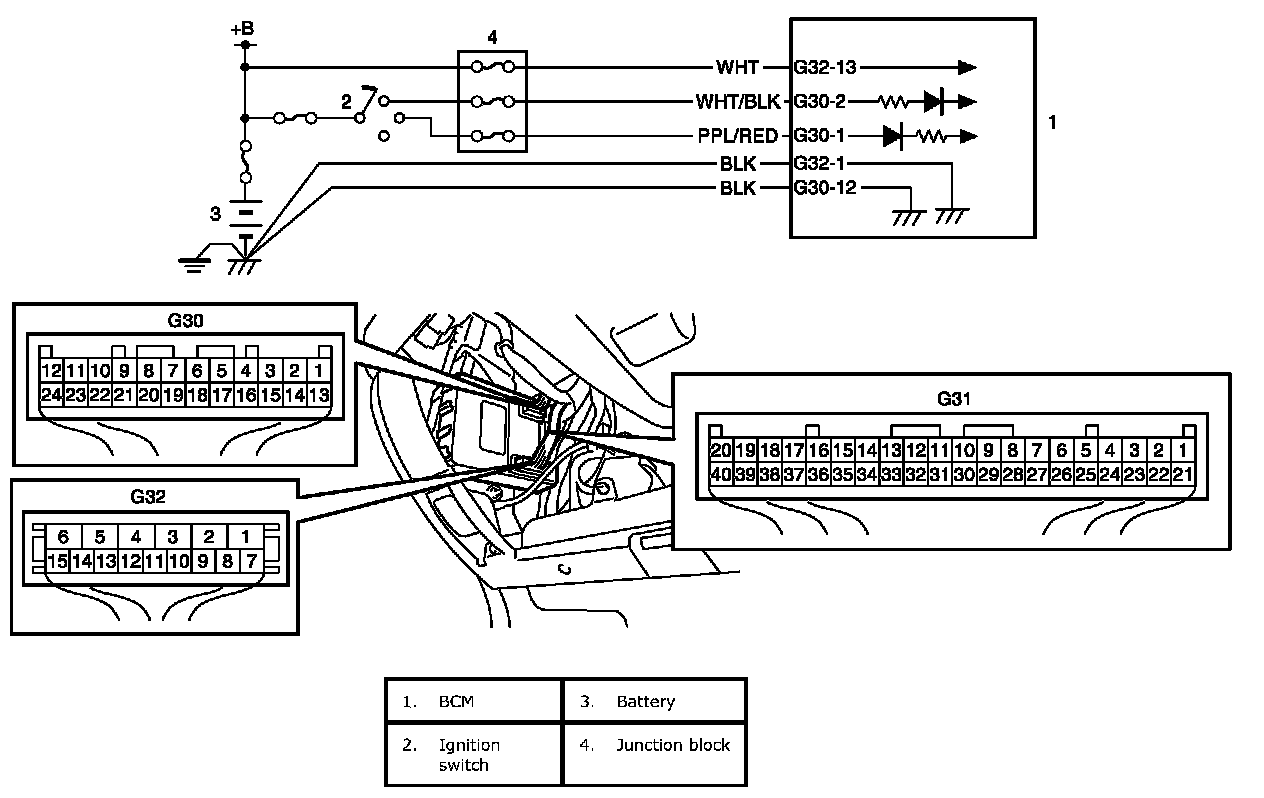

Wiring Diagram

Wiring Diagram:

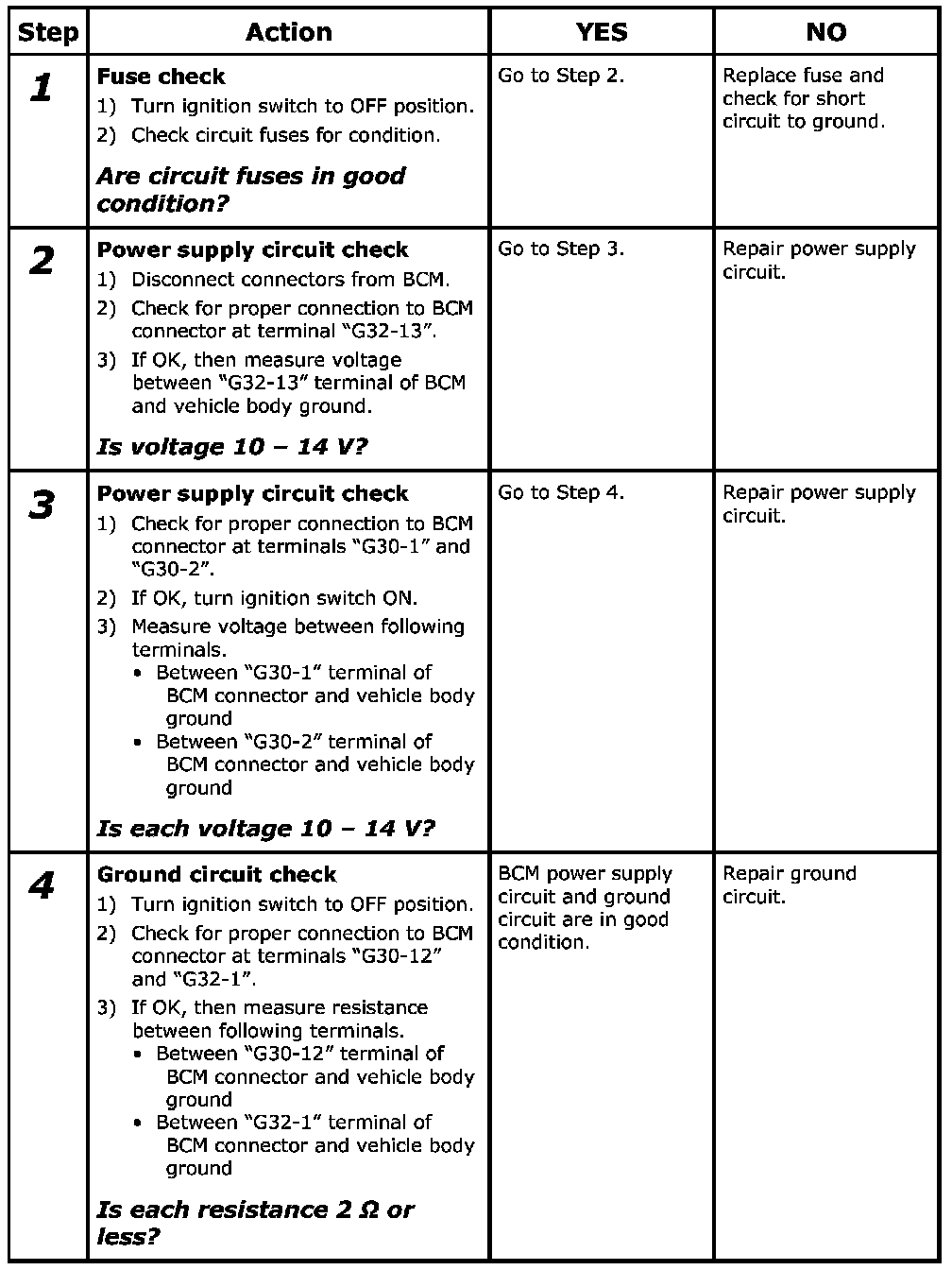

Troubleshooting

Step 1-4:
