Garage Door Opener Transmitter: Service and Repair

Homelink(R) Set Removal And Installation (If Equipped)

Removal

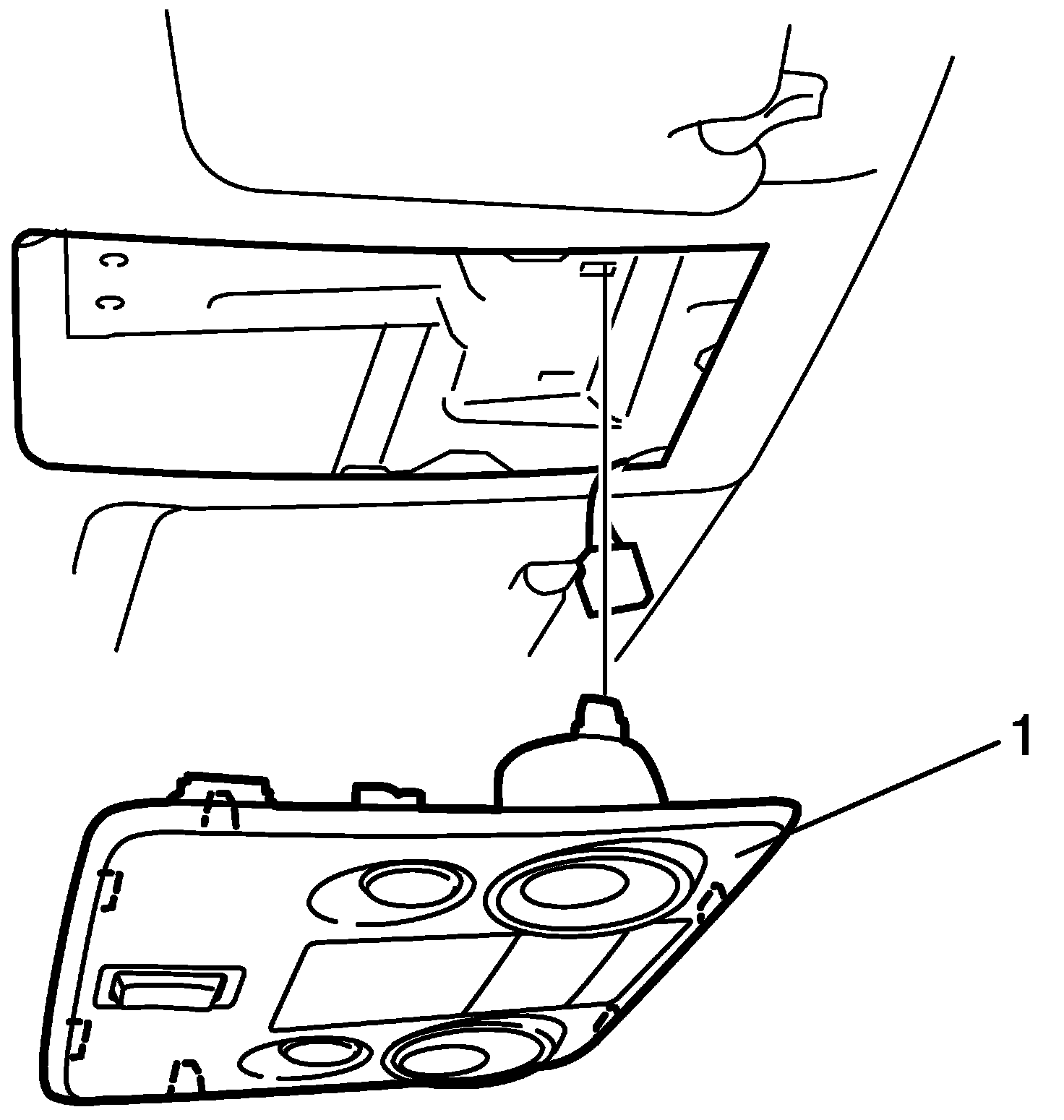

1. Remove spot light assembly (1).

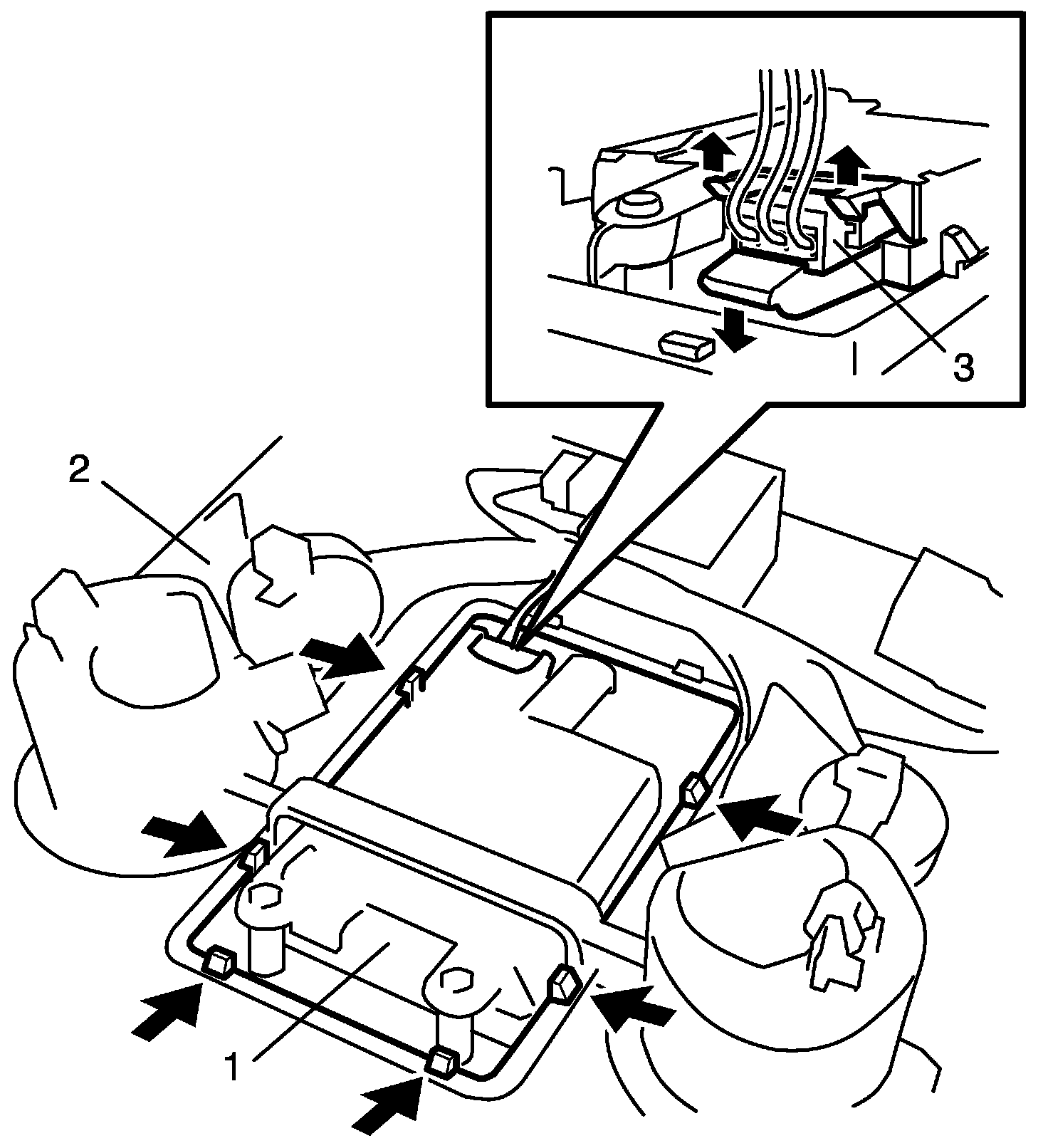

2. Remove homelink(R) set (1) from spot light assembly (2) and then, disconnect connector (3) from homelink(R) set.







Installation

Reverse removal procedure.
